Before commencing assembly please read these instructions thoroughly

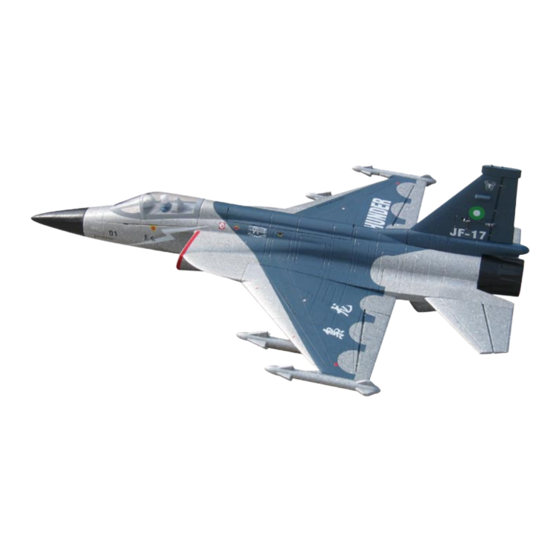

Wing Span: 37.5 in / 950 mm
Wing Area: 583 sq in / 37.6 sq dm
Flying Weight: 69 oz / 1950 g
Fuselage Length: 57.5 in / 1460 mm
Requires: 6-channel radio w/ 9 micro
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
.
www thewingsmaker com
GM057XMPO28011204/GM057S1XMPO28031204
,
Specifications
Specifications
Brushless ESC and 6 cells 22.2V 25C 2800 mAh
battery and charger
.
I NSTRUCTI ON M ANUAL
servos, 60A
.
( GM057XM )
