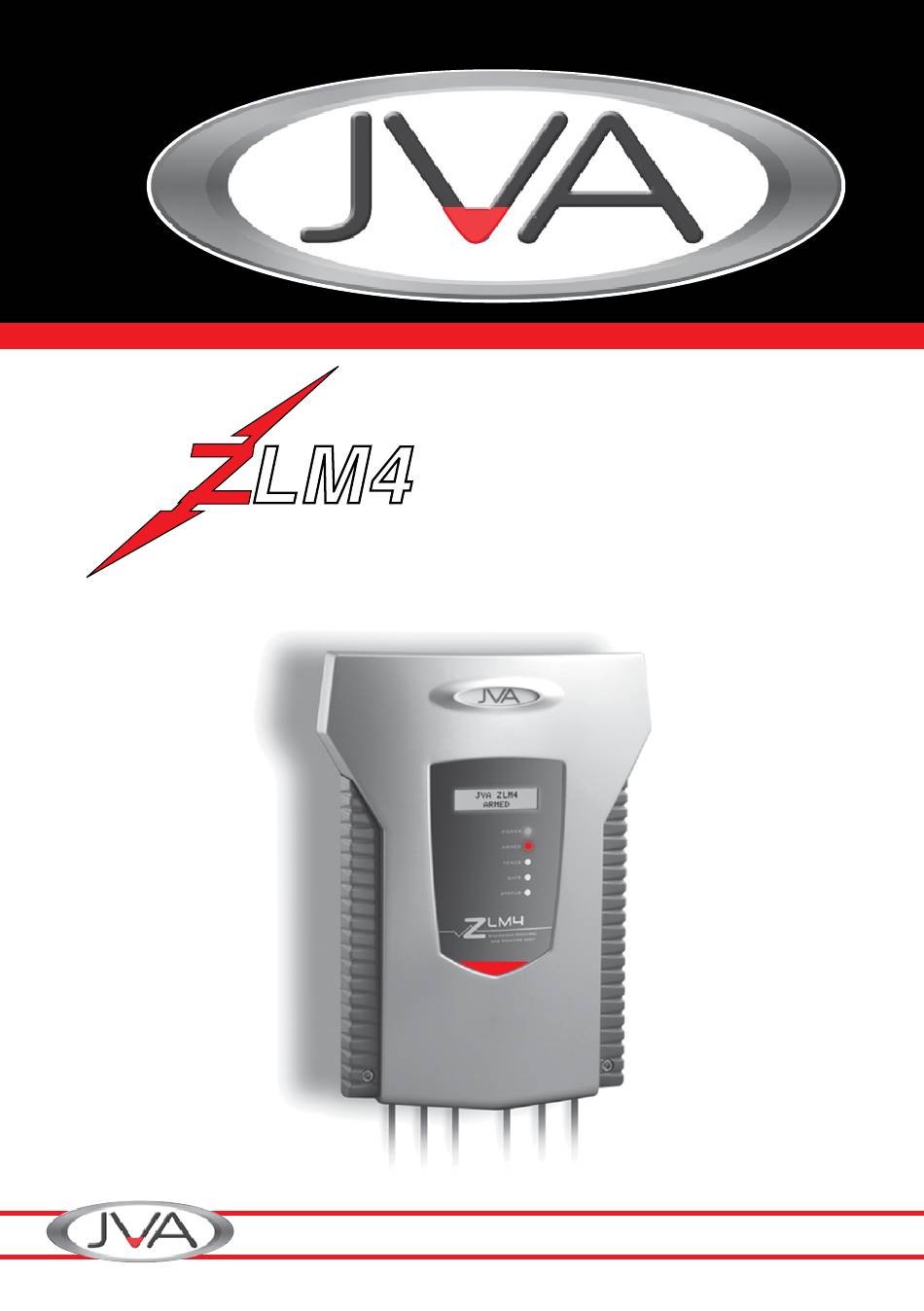

SECURITY
LM4
MONITOR
Installation and User Manual
Edition 1.5, 2019
JVA ELECTRIC FENCE SYSTEMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZLM4 and is the answer not in the manual?

Questions and answers

Summary of Contents for JVA ZLM4

  • Page 1 SECURITY MONITOR Installation and User Manual Edition 1.5, 2019 JVA ELECTRIC FENCE SYSTEMS...
  • Page 2 JVA ELECTRIC FENCE SYSTEMS Thank you for choosing our product. The JVA brand is a range of electric fencing products carefully selected from leading manufacturers around the world to meet the needs of perimeter security. THE JVA Z RANGE ENERGIZER CONCEPT...
  • Page 3: Table Of Contents

    To Silence the Alarm ..................To Disarm ..................... To Clear Alarm Memory ................Changing your User PIN ................Standby Battery ................... Internal Beeper/Keypad Beeper ..............ZLM4 Relevant Keypad Codes ..............SPECIFICATIONS ..................... INSTALLATION ....................Installation Steps ..................Jumper Configuration .................. Fence Terminals ...................
  • Page 4 JVA ELECTRIC FENCE SYSTEMS Wiring Diagrams ..................Standalone fence continuity monitor ............Low Voltage Zoning System ..............Interconnecting Wiring Diagrams ............Keypad Bus Wiring ................. Example Group Wiring Ddiagrams ............PROGRAMMING OPTIONS ................Enter Programming Mode ................To Exit Programming Mode .................
  • Page 5: Introduction

    JVA ELECTRIC FENCE SYSTEMS INTRODUCTION The ZLM4 is a 4-zone, low voltage, electric fence monitor. The ZLM4 may be used by itself or in conjunction with a number of high voltage security electric fence energizers. The ZLM4 monitors up to 4 loops of fence wire, each up to several hundred meters long, to detect someone tampering with the fence by cutting or shorting the wires.
  • Page 6: Features

    ZLM4. For compatibility please check with your distributor or JVA. • The JVA LCD keypad (PTE0210) requires version 2.12 or later firmware to operate with a ZLM4. The keypad firmware can be viewed at power up or by pressing *9# on the keypad. •...
  • Page 7: Equipment Requirements And Options

    1. While the keypad is not essential for normal operation, it is required to adjust the programmable options. 2. Up to 3 keypads may be connected in parallel on a ZLM4. Each keypad must have a unique ID setting. 3. The ZLM4 contains patent pending technology. Contact JVA SA for more information.
  • Page 8: Operation

    OPERATION Status LED Lights The status LED’s on the front of the ZLM4 allow the user to ascertain quickly the current status of the unit and if any action needs to be taken. Below is a brief description of each LED (top to bottom) and the information it conveys.
  • Page 9: Zlm4 Lcd Screen

    JVA ELECTRIC FENCE SYSTEMS ZLM4 LCD Screen The ZLM4 will show the status on the optional LCD display. When disarmed: JVA ZLM4 Disarmed While armed, the LCD display cycles the following information: 1: 35V 2: 37V ZLM4 Armed Battery 14.5V...
  • Page 10: Control Options

    Control Inputs The ZLM4 may have a single key switch mounted on the right hand side of the cabinet which may be used to arm and disarm the security electric fence to which it is connected.
  • Page 11: Keypad Control

    The screen will change to display the Armed status and any faults or alarms. If there is a fence fault the ZLM4 will go into alarm, the internal beeper will sound (if it has not been inhibited) and any siren and strobe connected to the ZLM4 will be turned on.
  • Page 12: Arming/Disarming The Fence Using The Keypad

    • Will respond to *68# to analyse the ‘group’. • Version 1.21 and below – Older version, can be upgraded to V2.00 firmware – Cannot detect or operate with the ZLM4 • Version 2.20 and higher – ZLM4 is supported, zones are displayed...
  • Page 13: When An Alarm Occurs

    The system will be ready for the next alarm. NOtes: 1. This silence function will not operate if the ZLM4 is part of a Z series networked group. 2. The last alarmed Zone will still be displayed on the front panel LCD and the keypad.
  • Page 14: To Disarm

    Using a keypad, disarm the system by entering your User PIN and press #. The Fence or Gate light on the ZLM4 will remain on to show the Alarm Memory. This can be cleared by entering the Clear Alarm memory command *1#. The alarm memory will also be cleared when the ZLM4 next arms.
  • Page 15: Zlm4 Relevant Keypad Codes

    JVA ELECTRIC FENCE SYSTEMS ZLM4 Relevant Keypad Codes Function Key sequence Arm/Disarm [User PIN][#] Silence an alarm (Single zone system only) [User PIN][#] Start programming the Z series energizer [Installer PIN][*] [0] [#] Start programming the keypad [Installer PIN][*] [0] [1] [#]...
  • Page 16: Specifications

    3. This is the limit for the combination of the loads on both the Siren and Strobe outputs. 4. This is the maximum rating of the energizer if the ZLM4 is used on the same fence as a high voltage electric fence energizer. Beyond this rating the ZLM4 loop circuit protection MOV’s may fail if high voltage wires are shorted to the...
  • Page 17: Installation

    15. Arm the ZLM4 and switch on the energizer if used. The LCD display will now show the zone voltages. 16. Find and remove any faults on the fence. 17. Test that a short in any zone puts the ZLM4 into alarm and shows the correct Zone.
  • Page 18: Jumper Configuration

    JVA ELECTRIC FENCE SYSTEMS Jumper Configuration The ZLM4 is equipped with three jumpers, two of which (J3 and J4) operate in an identical fashion to those on other Z-range energizers. The third jumper, J8 will suppress the beeper on the ZLM4 when fitted.
  • Page 19: Control, Power And Io Terminals

    JVA ELECTRIC FENCE SYSTEMS Description of fence terminals (left to right in the illustration on the previous page) Loop 1 Connect to zone 1 fence wires Loop 2 Connect to zone 2 fence wires Loop 3 Connect to zone 3 fence wires...
  • Page 20 JVA ELECTRIC FENCE SYSTEMS Description of control, power and IO (Input, Output) terminals Label type Description 2 Way Energizer control input (dry contact) Defaults to normally open Can be used for a remote switch or a radio receiver The receiver may be powered from the keypad +12V terminal.
  • Page 21: Wiring Diagrams

    JVA ELECTRIC FENCE SYSTEMS Wiring Diagrams standalone Fence Continuity Monitor The ZLM4 may be used to monitor a loop of wire on or under a perimeter fence. • Bare conductors on insulators as per high voltage electric fence, but powered...
  • Page 22: Low Voltage Zoning System

    • Insulated wire buried underground; the alarm is given if the insulated wire is cut or shorted to earth. Low Voltage Zoning System The ZLM4 uses interleaved low voltage wires of the fence to detect any tampering. Security ZLM4 Energizer...
  • Page 23: Interconnecting Wiring Diagrams

    A ZLM4 can be combined with JVA Z series energizers to power the fence. The ZLM4 should be configured as a slave and the Z series energizer as the master. The number of Z series energizers and ZLM4 is limited by the available ID numbers if using the keypad bus.
  • Page 24: Keypad Bus Wiring

    • Set the Group ID of the ZLM4 to Slave 1 (2602#) The Group ID of the ZLM4 must be 1 value higher than the Group ID of the Z-Series energizer driving it. A ZLM4 by itself does not require the Group ID to be configured as it is factory set...
  • Page 25: Example Group Wiring Ddiagrams

    JVA ELECTRIC FENCE SYSTEMS Example Group Wiring Diagrams Z28 and two ZLM4 connected to Perimeter Patrol through a uSb interface PAE223: ZLM4 ZLM4 Keypad To low voltage To high voltage To low voltage To earth interleaved wires fence wires interleaved wires stakes •...
  • Page 26: Programming Options

    To enter programming mode, enter the 6 digit installer PIN followed by *0# keys. The keypad will beep twice to indicate that the command was accepted. If the PIN was incorrect the keypad will beep 3 times. The LCD on the ZLM4 will now show the first programming option and its current setting.
  • Page 27: Programmable Options Table

    A Group containing Z-Series energizers and ZLM4s MUST NOT be programmed this way as the ZLM4 contains different Option values to the Z-Series energizers. Each ZLM4/energizer will need to be isolated from the Group Wiring and programmed individually.
  • Page 28: Programming Options In Detail

    JVA ELECTRIC FENCE SYSTEMS Option Function Default Description Not Used Binary Options Miscellaneous options Not Used Not Used Can be reduced if you are not using all 4 LV Zones to permanently bypass the unused zones Not used Auto Rearm Time 0...
  • Page 29: Zone 2 Fence Voltage Alarm Level (02Xx#)

    JVA ELECTRIC FENCE SYSTEMS Zone 2 Fence Voltage Alarm Level (02xx#) As above for zone 1 Zone 3 Fence Voltage Alarm Level (03xx#) As above for zone 1 Zone 4 Fence Voltage Alarm Level (04xx#) As above for zone 1...
  • Page 30: Battery Alarm Voltage (07X#)

    JVA ELECTRIC FENCE SYSTEMS Battery Alarm Voltage (07x#) Value Alarm This option sets the battery voltage threshold below 9.0 V which the general alarm will activate. The default 9.5 V battery Alarm Voltage is 10.0 Volts. This alarm can 10.0 V be set to activate one of the relays, and is part of the 10.5 V...
  • Page 31: Siren Cycles (10X#)

    JVA ELECTRIC FENCE SYSTEMS Siren Cycles (10x#) Value Cycles This option sets the maximum number of times the siren will sound for the On Time if the alarm continues. This may be limited by local regulations to stop an alarm causing undue disturbance to neighbours etc.
  • Page 32: Chime Mode (14X#)

    +8: To disable cross-couple alarms binary Options (16x#) +16: To latch the output relays Zones (not yet implemented) This option sets the number of zones the ZLM4 Value Function will monitor. This will reduce the amount of None unnecessary information that will be displayed if One Zone you are only monitoring one zone.
  • Page 33: Auto Re-Arm Time (20X#)

    Zone 2 alarm Relay 1 is (21x#) Zone 3 alarm Relay 2 is (22x#) etc Zone 4 alarm NOte: Relay 6 is (27x#) Armed The defaults for the ZLM4 are: Un-used • Relay 1 – Siren Un-used • Relay 2 – Strobe General •...
  • Page 34: Group Mode (26X#)

    JVA ELECTRIC FENCE SYSTEMS Function Logic for Alarm State (opposite of normal state) Zone X The ZLM4 is Armed AND any zone alarm occurs; these include: Alarm • The loop return Voltage has fallen below the Fence Voltage Alarm Level (Low Voltage) •...
  • Page 35: Keypad Programming

    JVA ELECTRIC FENCE SYSTEMS Keypad Programming Changing the Keypad Messages and Address The messages and each of the 15 zone labels can be changed. The Dealer Message displays when the system is on standby. Zone Labels display after the [#] key is pressed during alarm memory or faults.
  • Page 36: To Exit Keypad Programming

    JVA ELECTRIC FENCE SYSTEMS The message order is: SERViCE MESSAgE (Displayed under ‘System Trouble’) • DEALER MESSAgE (Displayed under the standby message: ‘Ready to Arm’) • • ZONE NAMES bAuD RATE (should be left at 2 400) • KEYPAD ADDRESS (should be left at 1) •...
  • Page 37: Notes Regarding Keypad Configuration

    JVA ELECTRIC FENCE SYSTEMS Notes Regarding Keypad Configuration Zone 1 (the master) must be connected to the group. If it is not connected the other energizers in the group will not send status packets to the keypad. The status packets contain voltage and alarm information which the keypad displays. If Zone 1 is not connected, the keypad will report a communications failure with all the zones.
  • Page 38: Warranty

    Whilst every effort has been made to check that the information contained is accurate, JVA Technologies Pty Ltd will not be liable to loss or damage resulting from construction, operation or failure of any installation or system. Installation of security electric fences should be made by trained professionals with regard to the relevant local standards and workplace health and safety requirements.
  • Page 39 JVA dealer. RSA Tel. No.: 0861 782 349. For service or repairs: If a service or repair is required, please package and label your energizer carefully and return it to your local JVA Service Centre. For warranty repairs: Include proof of purchase, e.g. invoice.
  • Page 40 JVA ELECTRIC FENCE SYSTEMS JVA products are designed by JVA Technologies, Queensland, Australia and distributed to: CARIBBEAN CENTRAL AMERICA AFRICA AUSTRALIA CENTRAL ASIA INDIA LATINO AMERICA EUROPE NEW ZEALAND PHILIPPINES PAkISTAN MEXICO RUSSIA SOUTH EAST ASIA SRI LANkA UNITED kINGDOM...
