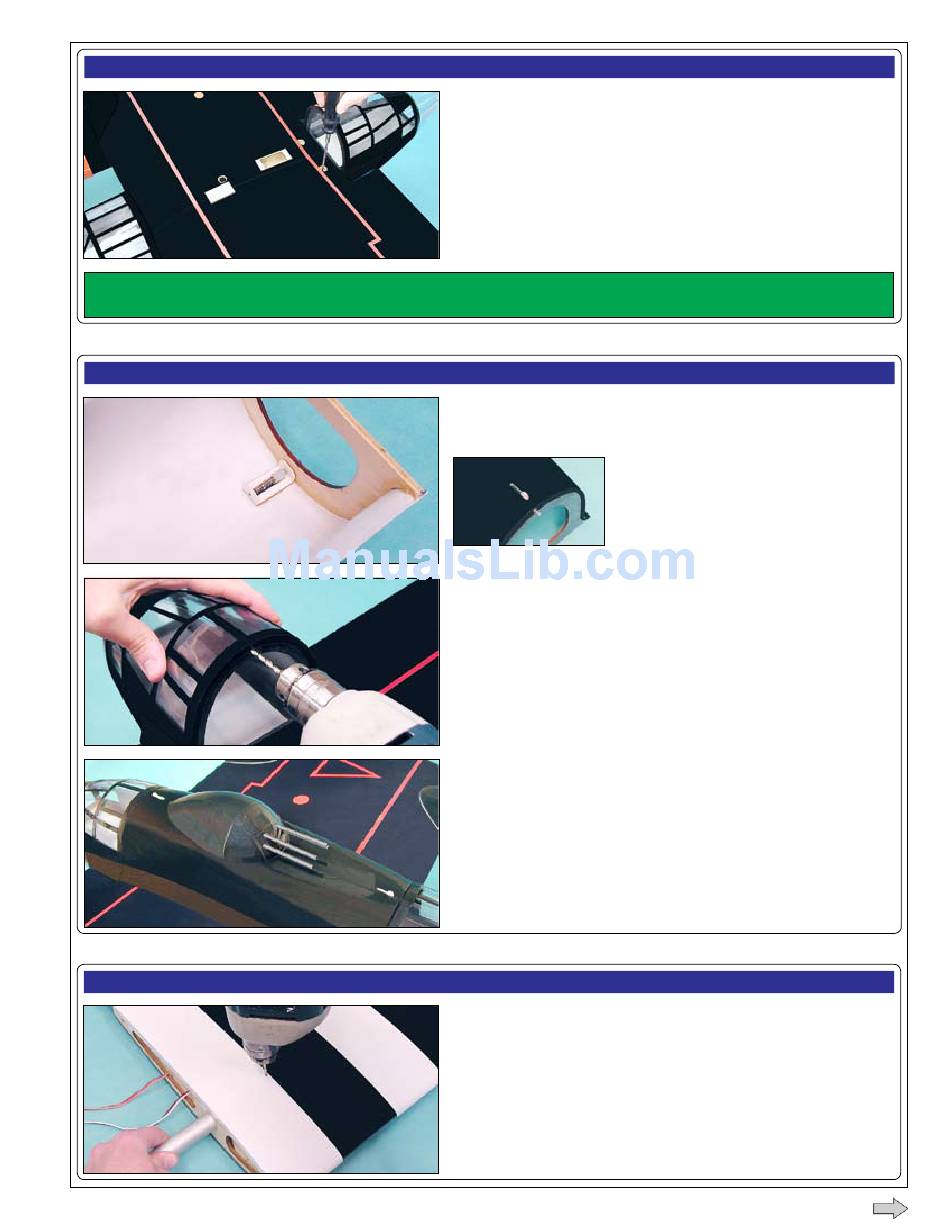

STEP 17: MOuNTING THE CENTER FuSELAGE POD
iMpoRTANT You'll need to plug a Y-Harness between the steering servo and the rudder Y-Harness. Double-check that the nose
gear moves the same direction as both rudders.
STEP 18: INSTALLING THE HATCH COVER
STEP 19: INSTALLING THE OuTER WING PANELS
❑ Plug the servo leads into your receiver and mount the center fuselage
pod to the center wing panel, using the two longer socket-cap screws
and two washers provided.
❑ The hatch cover is held in place using two hatch latches - one
centered at the front and one centered at the back. Install them by cutting
a slot through the top of the hatch cover for the
latch handle and drilling a hole for the latch pin
through the plywood support bulkheads. Check
the fit for smooth operation, then glue them to
the inside of the hatch cover.
❑ Locate the positions of the latch pins onto the front and rear wing
mounting bulkheads, then drill holes through the bulkheads for the pins
to slide into.
❑ Install the hatch cover and double-check that the hatch latches hold
the hatch cover securely in place.
❑ Slide one aluminum wing joiner tube into one outer wing panel until
the tube bottoms out.
❑ While holding the wing joiner tube in place, drill a 7/64" diameter hole
through the wing joiner tube, using the predrilled hole in the bottom of
the wing panel as a guide.

CONTINuED
