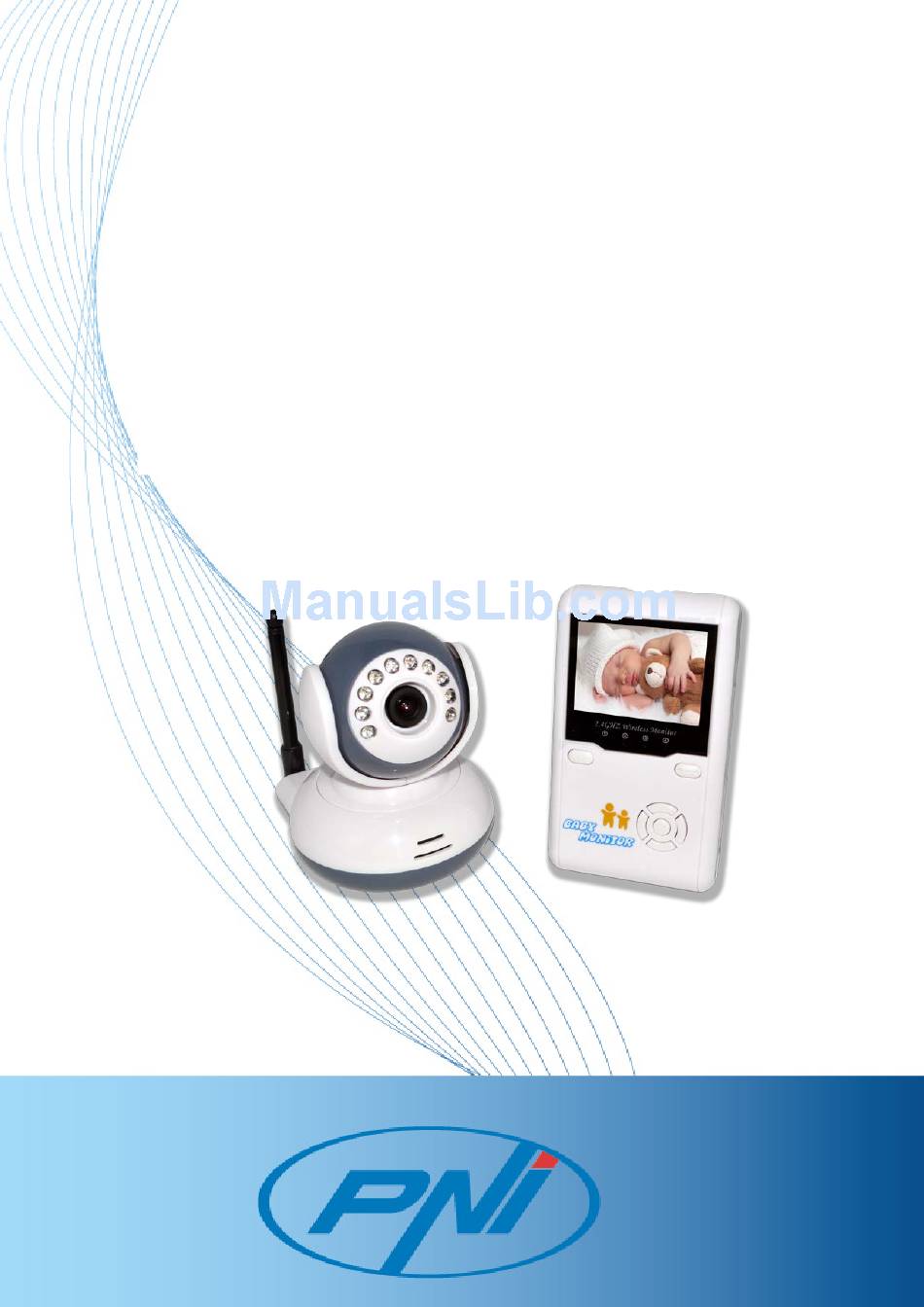

- Page 1 User manual Video Baby Monitor PNI B2500...
-
Page 2: Safety Notice
Caution In order to prevent improper operation of DC Converter, Please read user manual carefully. For you safety, please use only the DC converter provided. (The manufacturer will not responsible for any losses caused by DC converter not provided by the manufacturer).!! Important !! Please only use the socket match with DC converter. - Page 3 Digital Baby monitor kit components: 1 pc * Wireless Camera 2 pcs * Power Adapter 1 pc * Wireless Monitor 1 pc * AV Cable 1 pc * Instruction Manual Package Contents: 5V DC Adapter * 2 pcs 2.4"...
-
Page 4: Main Parts
Main Parts... -
Page 5: Main Menu
User Manual Press ”POWER” button on the wireless camera and the LCD monitor after the adapter connects to the camera and the monitor. Signal strength/Channels/Battery Status will show on the LCD monitor. Meanwhile, the monitor can receive the video from the camera. Main Menu Press OK button to display the main menu ... -
Page 6: Mode Selection
Mode Selection Zoom In/Out Mode Press OK Button to display the main menu. Press OK button to convert zoom in or zoom out function. Press Left Navigation key to Exit. Baby Unit Volume Mode Press OK button to display the main menu and then select the "baby unit volume" mode by Down navigation key. - Page 7 Effect SET Mode Vertical mode Press button to display the main menu and then select the "EFFECT SET" mode by Down navigation key, Press OK button to entry. Press right navigation key to convert Vertical on/off. Press to confirm. OK button Press left navigation key to Exit .
- Page 8 Set up Mode 1. VOX ON/OFF mode Press button and then select the "SETUP" mode by Down navigation to display the main menu key, Press button to entry. Press right Navigation key to convert VOX on/off Press OK button to confirm Press left Navigation key to exit;...
- Page 9 TV OUT Mode Please connect AV Cable with the baby LCD monitor Press OK button to display the main menu and then select the "TV OUT" mode by Down navigation Press OK button to entry, according to the AV Cable correct colors (yellow, white) to connect with TV or other LCD’s AV port.
-
Page 10: Signal Indicators
Method two: Press the power button on the camera backside, then can see the camera power led to flicker, it means can pair up with the monitor. Use pin to press pair key on the Monitor backside (see above icon), the pairing is successful when the power led of camera stops to flicker. - Page 11 press ok button entry the main menu, then select baby unit volume mode to adjust the volume by UP/DOWN Navigation key. When camera works in dark night ,IR IR lights work in dark night, the IR lights will not lights will auto work ,but IR lights do not light, but they are working well.
-
Page 12: Product Specification
Product Specification Item Value Operating Frequency 2450 MHz Unobstructed Effective Range 250m Modulation Mode FHSS GENERAL Operating Temperature 0° 60° Storage Temperature 25° Operating Humidity 20%-80%RH Imaging Sensor Type 1/4CMOS Picture Total Pixels 628x582(PAL) 510X492(NTSC) Horizontal Resolution 360 TV lines View Angle 60°...
