Rudolf R2
User's Manual

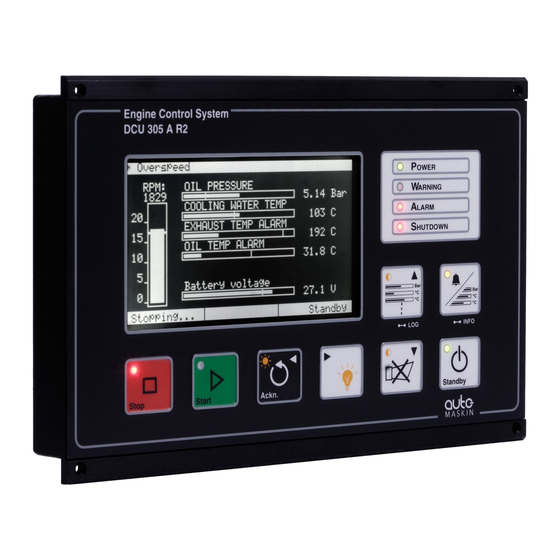

DCU 305 R2 Control Unit configuration tool

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCU 305 R2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for auto maskin DCU 305 R2

Summary of Contents for auto maskin DCU 305 R2

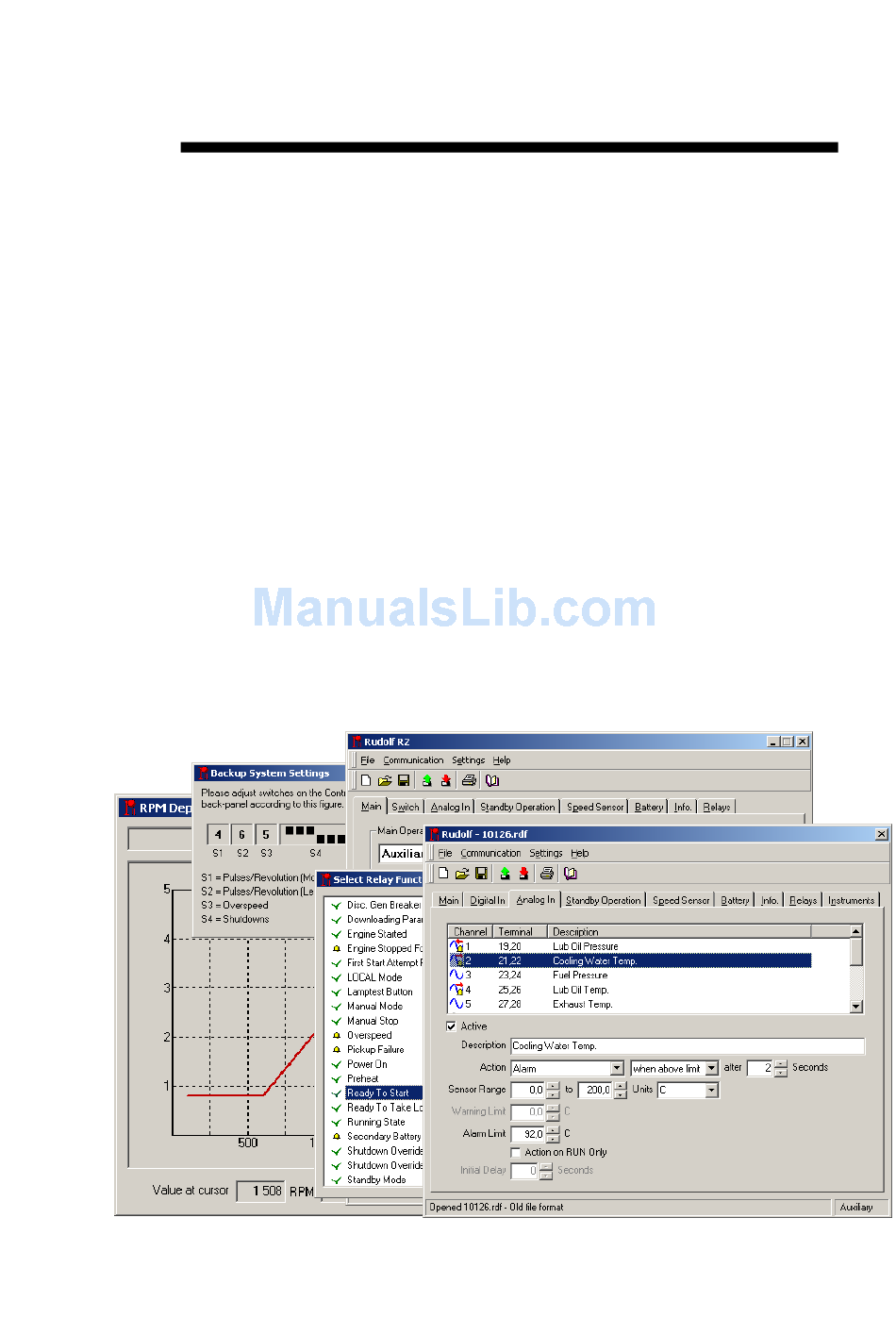

  • Page 1 Rudolf R2 User’s Manual DCU 305 R2 Control Unit configuration tool...

  • Page 3: Table Of Contents

    Contents Introduction ..................4 Important information System requirements 1.2.1 Minimum PC requirements Installation of Rudolf R2 1.3.1 Uninstall previous installations 1.3.2 Installation Menu Overview ................7 File 2.1.1 New 2.1.2 Open 2.1.3 Save 2.1.4 Save As… 2.1.5 Close 2.1.6 Export as Text 2.1.7 E-mail…...
  • Page 4 4.2.6 Switch type 4.2.7 Warning/Alarm/Shutdown on RUN only 4.2.8 Initial delay 4.2.9 Broken Wire Detection 4.2.10 Delay before alarm/shutdown 4.2.11 Additional Switch Inputs Analog In 4.3.1 Add a new sensor 4.3.2 Active 4.3.3 Input Type 4.3.4 Description 4.3.5 Sensor Range 4.3.6 Units 4.3.7 Limit 4.3.8 Action Type...
  • Page 5 Rudolf R2 User's Manual Document order no: 09326 Revision: July 2009 All trademarks acknowledged. Related documentation:  DCU 305 R2 User’s Manual, Eng Article 06322  DCU 305 R2 Communication Manual, Eng Article 06324  DCU 305 R2 Installation Manual Article 06325...

  • Page 6: Introduction

    PC. Rudolf R2 is the PC parameter software used to completely customise the DCU 305 R2 range of Diesel Engine control units; hereafter referred to as the control unit only. Note: Rudolf R2 is backward compatible and new versions completely replace earlier releases and versions.

  • Page 7: Minimum Pc Requirements

    1.2.1 Minimum PC requirements A PC equipped with a Pentium processor running at 200MHz.  Windows® 95/98/ME: 32MB RAM  Windows® NT/2000/XP: 64MB RAM Use a color screen with 800 x 600 dpi resolution or better. Rudolf is delivered on a CD, so make sure the PC is equipped with a CD-drive.

  • Page 8: Installation

    1.3.2 Installation Close all other programs before installation. Insert the CD- ROM in the drive. Run the SETUP.EXE file. Follow the guidelines on screen as given by the Setup program. 6 • 0BIntroduction - 6BInstallation of Rudolf R2 Rudolf R2 User's Manual...

  • Page 9: Menu Overview

    2 Menu Overview File The file menu is used for creating new project files, opening existing project files and saving current files. The project files are small (2-3k bytes) and their extension is RDF, for instance MYFILE.RDF or PROJECT 173.RDF. 2.1.1 New Select File-New to create a new project.

  • Page 10: Open

    2.1.2 Open Select File-Open to open a previous project. The following dialog Alt+F+O appears: Select a file with the .RDF extension, and click Open. 2.1.3 Save Select File-Save. If this is the first time the project is saved, Alt+F+S Rudolf will prompt for a file name. Type a file name.

  • Page 11: E-Mail

    2.1.7 E-mail… Select this option to send the opened Rudolf file as e-mail. This Alt+F+M requires an installed version of Microsoft Outlook®. 2.1.8 Print… Alt+F+P Select this option to get a paper printout. It is possible see a preview before printing. 2.1.9 Exit Alt+F+X Select File-Exit to quit Rudolf.

  • Page 12: Transmit To Control Unit

    Opening Communication port Rudolf opens the PC communication port, Com1 – Com4. If the selected port is in use by another program, this operation fails. If no port is selected, Rudolf brings up a dialog that makes you select a port. Connecting to control unit Rudolf makes sure that a control System is connected to the PC.
  • Page 13 Opening Communication port Rudolf opens the PC communication port, Com1 – Com4. If the selected port is in use by another program, this operation fails. If no port is selected, Rudolf brings up a dialog that makes you select a port. Connecting to control unit Rudolf makes sure that a control System is connected to the PC and prepares the control unit for reception of a new Project.

  • Page 14: Retrieve Log

    2.2.3 Retrieve log… The control unit stores all events in a built-in log. This command Alt+C+R will read the entire log and open it in Notepad on your PC. Connect the Rudolf Cable between your PC and the control unit. Included in the log are the project information and the counters.

  • Page 15: Settings

    Settings This menu has a collection of useful submenus with settings that can be made in the control unit. The built-in log and the counters can be reset to zero. This requires a password that can be obtained from your supplier. 2.3.1 Backup System Settings…...

  • Page 16: Control Unit Clock

    2.3.2 Control unit Clock Some control units (R1) has a built-in real time clock that keeps Alt+E+O track of time. When commissioning, it may be necessary to adjust the clock. Type the date in the format dd mm yyyy (date month year) and time in the format hh mm (hours minutes).

  • Page 17: Options

    2.3.4 Options… A number of installations are made here, for instance: 2.3.4.1 Rudolf Mode Choose between Normal Mode and Expert Mode. In Expert Mode, only a minimum of dialogboxes is shown to speed up the configuration. 2.3.4.2 File Open/Save The default file open/save folder can be set here. 1BMenu Overview - 9BSettings •...
  • Page 18 2.3.4.3 Rudolf R2 Com. Port Select the PC/laptop communication port to be used by Rudolf. Most often, this is COM1. 16 • 1BMenu Overview - 9BSettings Rudolf R2 User's Manual...

  • Page 19: Buttons

    3 Buttons A number of common tasks are quickly accessible using the buttons located under the menu string. Upload Read from control panel to Rudolf Download Transmit from Rudolf The first three buttons are common in the Windows to control panel environment and are New configuration, Open an existing configuration and Save the current configuration.

  • Page 20: Configuration Sections

    4 Configuration Sections The configuration is sorted into tab sections as follows: The TAB sections Note: The ‘Standby Operation’ tab changes to ‘Start/Fuel’ if selecting Propulsion mode in the Main tab. The sections can be completed in any order, but it is normal to start with Main and then Switch and Analog In .

  • Page 21: Main

    Main The main tab lets you select the main operation mode and the Alt+M control unit language. 4.1.1 Main Operation Mode Four main operation modes can be selected as follows:  Emergency  Auxiliary  Combined  Propulsion The Emergency, Auxiliary and Combined mode is supported in the DCU 305 A unit.
  • Page 22 Emergency Mode Shutdown for overspeed only, The control unit is prepared for Emergency operation mode. all others disabled Shutdown is disabled for all inputs, regardless of the chosen action type. Shutdown is enabled for Overspeed only. Auxiliary Mode All shutdowns enabled The control unit is prepared for Auxiliary operation mode.

  • Page 23: Control Unit Language

    4.1.2 Control Unit Language The control unit has a number of built-in alarms and messages. These are displayed in one of 11 different available languages. The currently supported languages are:  Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish and Swedish. Additional languages may appear in the future.

  • Page 24: Display Backlight Delay

     In the Switch section, if a Shutdown is selected on channel 1-6, the option “Broken Wire Detection” must also be selected.  In the Analog In section, it is not possible to select Shutdown on a falling signal (as a broken wire will give shutdown).

  • Page 25: Switch

    Switch Alt+W The switch tab is displayed below, together with all the possible settings for switch channels. In the picture below, channel 1 is selected. Channel 1 uses terminal 7 on the wire terminal card RK-66 R2. Clicking anywhere on that line will select channel 1. Then click Active to enable it and complete the fields.

  • Page 26: Input Channel

    4.2.1 Input Channel The input channel number. There are 12 channels altogether. Any sensor can be connected to any channel, but we recommend to connect shutdown switches on channel 1..6, as these have broken wire detection and backup if the main microcontroller fails. Warning and alarm switches are preferred on channels 7..12.

  • Page 27: Warning/Alarm/Shutdown On Run Only

     Shutdown uses Normally Open contacts (NO). It is possible to change that in this menu, although Rudolf suggests the most commonly used switch type for Warning, Alarm and Shutdown as above. Switches for shutdowns shall be of type NO, as a broken wire should not initiate a shutdown.

  • Page 28: Additional Switch Inputs

    4.2.11 Additional Switch Inputs Terminals 61 and 62 on the RK-66 R2 wire terminal card are configurable. LCD Light On: Activates the LCD backlight when it has been automatically turned off. LOCAL Mode: The control unit is set to Local Mode. Standby: The control unit is set to Standby.

  • Page 29: Analog In

    Analog In Alt+A The analogue tab is displayed below, together with all the possible settings for analogue sensors. The sensors must submit the industrial standard 4-20mA signal. 4.3.1 Add a new sensor Select an available input channel by clicking in the window above it.

  • Page 30: Active

     The alarm “Cooling Water Temp.” appears two seconds after the temperature exceeds 92 degrees C. 4.3.2 Active This enables the input channel for use. Any channel can be enabled () or disabled (). If the channel is disabled, the bargraph will not be displayed. 4.3.3 Input Type This may be 0-20mA or 4-20mA.

  • Page 31: Action Type

    The limit can be set with one decimal. 4.3.8 Action Type None: No setpoints are set. The analog value will be displayed only. Warning: Does not need acknowledge. Activates the common warning relay. Alarm: Needs acknowledge. Activates the common alarm relay. Shutdown: Needs acknowledge.

  • Page 32: Above Or Below Limit

    If for instance, the engine oil pressure ranges from 0-6 bar, and the sensor range is 0-18 bar, the bargraph value will be small compared with the full size bargraph (max 6/18bar or 1/3 of the full size). Doubling the scale will enlarge the bargraph value to 2/3 of the full scale, giving a better view.

  • Page 33: Standby Operation

    Standby operation This tab controls parameters for automatic start and stop of the Alt+T Gen. Set. when the control unit is set to Standby. Note: This tab is available only for the Auxiliary, Emergency and Combined modes of operation, as selected in the Main tab. The Standby Operation Tab displaying typical (default) values...

  • Page 34: Cranking Time

    4.4.2 Cranking Time The amount of time the starter motor is cranking the diesel engine in Standby mode of operation. Typical: 7 seconds Range: 2 – 20 seconds Note: Too long start attempts may damage the starter motor or empty the start battery. 4.4.3 Delay between Start Attempts This is the amount of time between each start attempt when set to Standby mode.

  • Page 35: Start/Fuel

    Typical: 3 minutes Range: 0 – 30 minutes Start/Fuel If selecting Propulsion in the Main Tab, the Standby Operation tab is replaced with the Start/Fuel tab. 4.5.1 Initial Start Delay When receiving the Start command from a remote slave panel, the control unit delays this amount of time before starting.

  • Page 36: Speed Sensor

    Speed sensor Alt+P This tab handles pickups and when the engine is said to be running. 4.6.1 Pickup Information Select zero, one or two pickups. If zero pickups are selected, one or more signals must be selected under Additional RUN Detection. 4.6.2 Pickup One/Two RPM Sender Select if the pickup is at the flywheel or the timing gear.

  • Page 37: Ready To Take Load

    4.6.3 Ready to take Load The control unit has a function that can be directed to K7 or K9 on the RK-66 R2 card – or to the optional relay cards – that activates when the engine reaches this RPM. It will not deactivate again until the control unit reaches the stopping mode.

  • Page 38: Run Detected At

    4.6.6 RUN Detected At When starting the gen. set., the control unit will sense that the engine is running when reached this RPM. This will also disable the cranking motor. Typical: 400 RPM Range: 50 – 600 RPM 4.6.7 Run Detection Delay The delay time from when the additional RUN detection signal (eg the oil pressure switch) changes, to when this actually indicates a running engine.

  • Page 39: Battery

    Battery The control unit will give an alarm if the start-battery voltage is too Alt+B low. It will not alarm during Start (Cranking state), or during Stop (Stopping state). 4.7.1 Start Battery Voltage Select 12V or 24V supply. The control unit is a 24V system, but if a 12/24DC/DC converter is used, select 12V here.

  • Page 40: Info

    Info All text written in the Information Tab is displayed in the control Alt+I unit when pressing the INFO button on the frontpanel. Typical information may include:  Project Name and Number  Order Number  Engine Serial Number  Generator Serial Number ...

  • Page 41: Relays

    Relays On the terminal card, a number of functions are configurable to Alt+R different relays as follows: 4.9.1 RK-60 There are no configurable relays available on this card. The card is used with the DCU 305 R1 system and is not configurable.

  • Page 42: Signals To The Optional Relay Cards

    All the available signals in the control unit can be routed to the RK-66’s K7 and K9 or the MK-6 / MK-14 cards for convenient use. The MK-6 relay card 4.9.4 Signals to the optional Relay Cards Relay Signal MK-6 6 Relays MK-14 14 Relays...

  • Page 43: Available Configurable Signals

    4.9.5 Available configurable signals # Signal Comment 1 Start failure The engine did not start after final start attempt. 2 Engine stopped The engine stopped for no known reason. 3 Overspeed Engine speed too high. Stays until Acknowledged. 4 Start battery low The engines start battery has low voltage.

  • Page 44: Disable Broken Wire Alarm On Terminal

    # Signal Comment overspeed. 27 Start disabled The control unit is disabling local and remote start attempts, also when set to Standby. 28 First start attempt The first of several start attempts failed during failed automatic start. 29 Pending alarm(s) One or more alarms present.
