This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

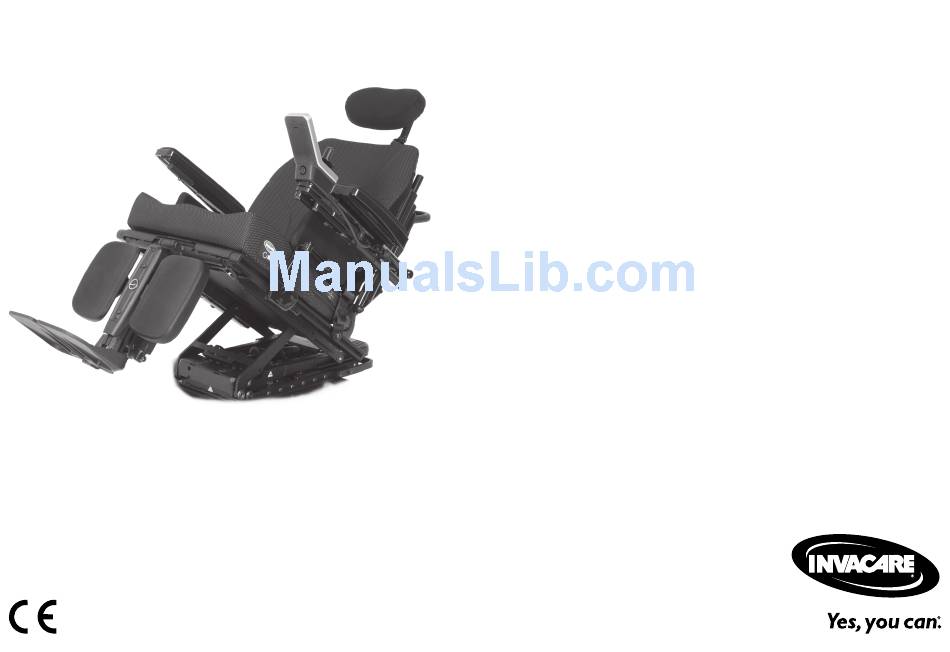

Invacare® Ultra Low Maxx by
Motion Concepts
Supplement to power wheelchair user manual
en Modular Non-Powered and Powered
Positioning System
User Manual
