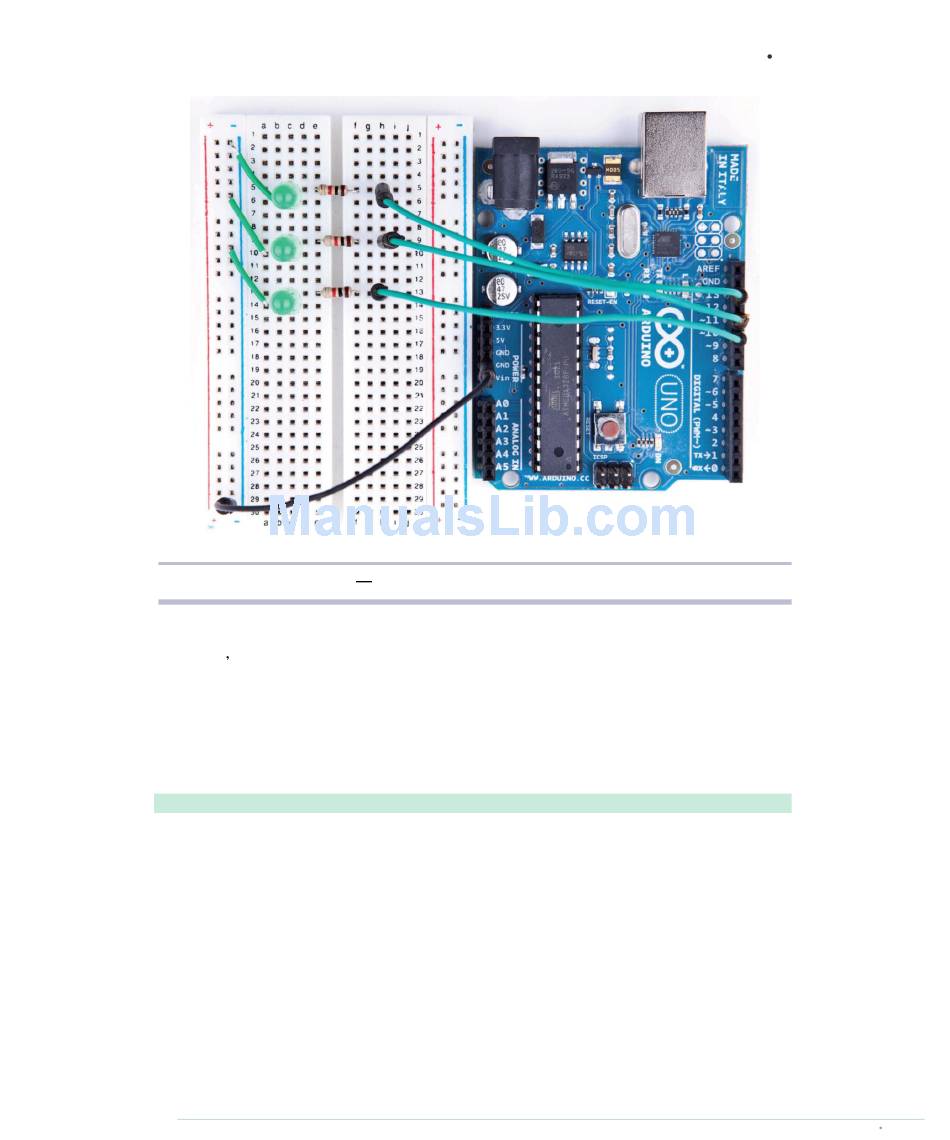

Figure 11 A first working version of our binary die
all sockets in this row will work as ground pins, too. Then you can connect
this row s sockets to the LEDs using short wires.
Everything else in this circuit should look familiar, because we only had to
clone the basic LED circuit from the previous section three times. Note that
we have connected the three LEDs to pins 10, 11, and 12. The only thing
missing is some software:
BinaryDice/BinaryDice/BinaryDice.ino
const unsigned int
Line 1
const unsigned int
-
const unsigned int
-
-
void setup() {
5
pinMode(LED_BIT0, OUTPUT);
-
pinMode(LED_BIT1, OUTPUT);
-
pinMode(LED_BIT2, OUTPUT);
-
-
randomSeed(analogRead(A0));
10
long result = random(1, 7);
-
output_result(result);
-
}
-
LED_BIT0 = 12;
LED_BIT1 = 11;
LED_BIT2 = 10;
www.it-ebooks.info
Chapter 3. Building Binary Dice 46
