Selection of the Operating Mode

Checking the Operating Mode

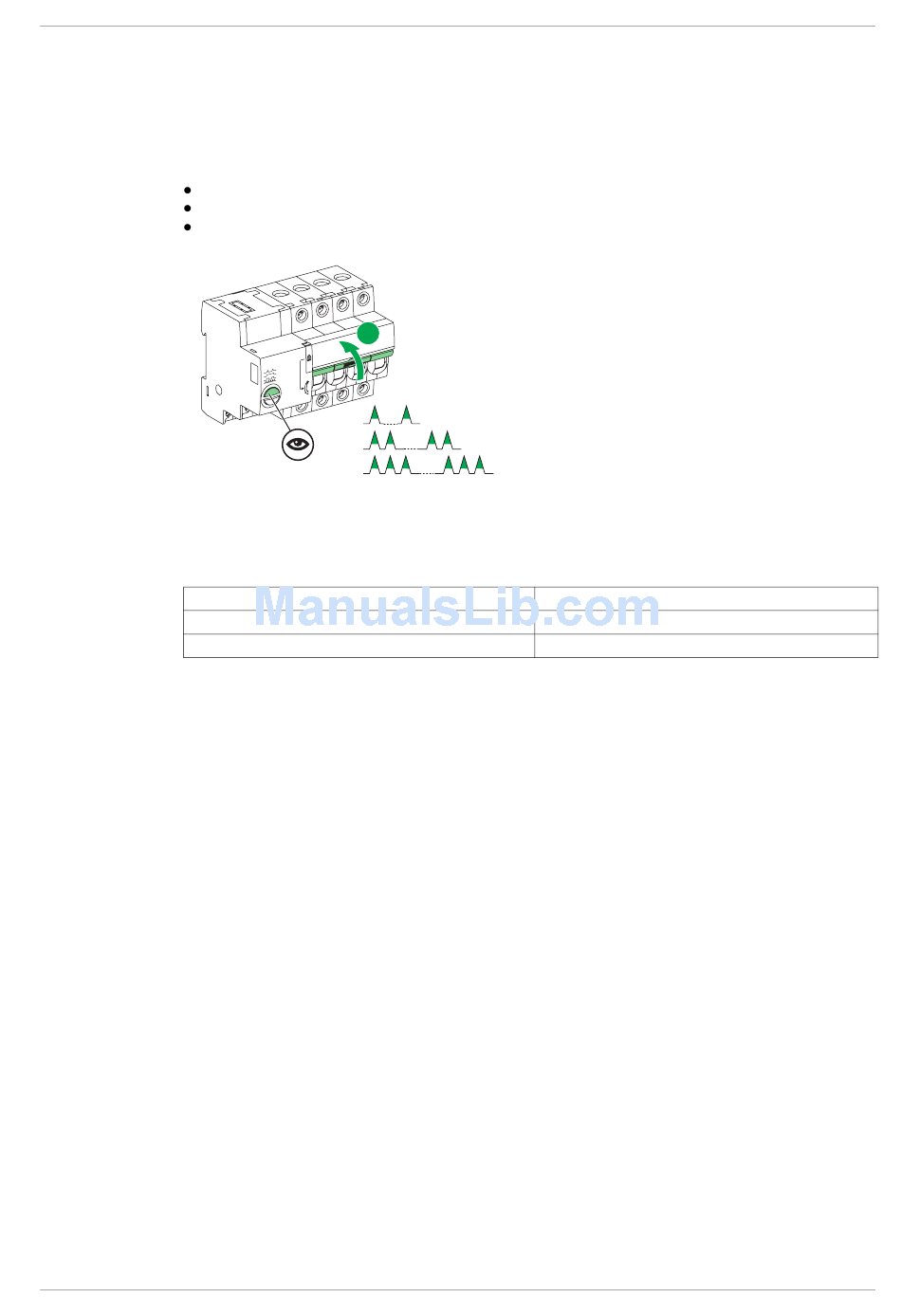

To check the operating mode of the Reflex iC60 circuit breaker, the handle must be in the upper position
(auto).
The LED indicates the operating mode:
Mode 1: the LED flashes once green
Mode 2: the LED flashes twice green
Mode 3: the LED flashes three times green
NOTE: Selection of the operating mode is described in the next paragraph.
Default setting
Reflex iC60 circuit breaker type
A9C5••••
A9C6••••
28
1
.3
N e1 .2
x iC 60
-M od
R ef le R ea dy
I. O N
FF
O . O au to
ea t
O ve rh
O FF
Mode 1
Mode 2
Mode 3
(Ti24)
Default setting
Mode 1
Mode 3
A9MA03EN 02/2012
