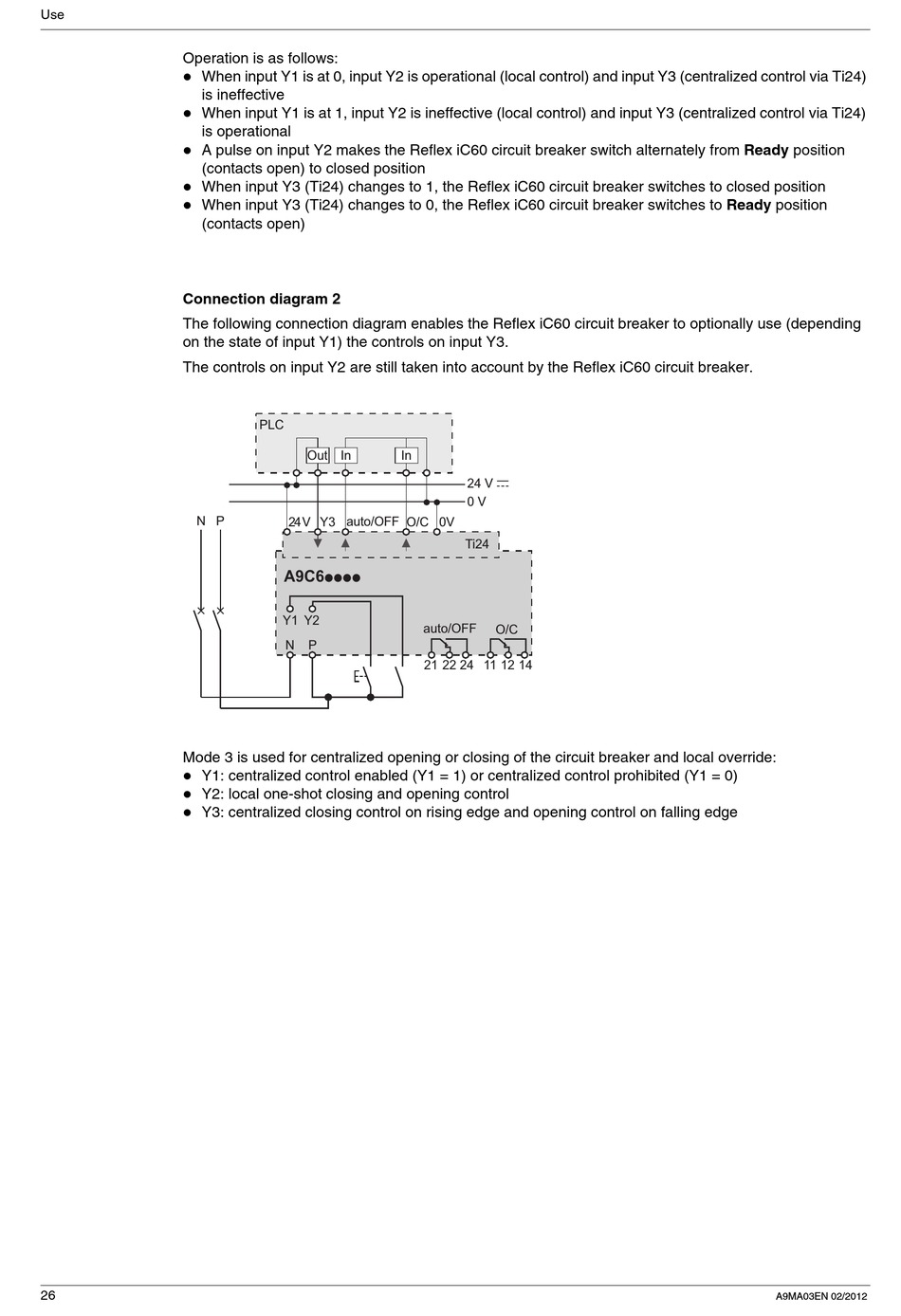

Reflex iC60N Reference Manual page 26

Use
Operation is as follows:
When input Y1 is at 0, input Y2 is operational (local control) and input Y3 (centralized control via Ti24)
is ineffective
When input Y1 is at 1, input Y2 is ineffective (local control) and input Y3 (centralized control via Ti24)
is operational
A pulse on input Y2 makes the Reflex iC60 circuit breaker switch alternately from Ready position
(contacts open) to closed position
When input Y3 (Ti24) changes to 1, the Reflex iC60 circuit breaker switches to closed position
When input Y3 (Ti24) changes to 0, the Reflex iC60 circuit breaker switches to Ready position
(contacts open)
Connection diagram 2
The following connection diagram enables the Reflex iC60 circuit breaker to optionally use (depending
on the state of input Y1) the controls on input Y3.
The controls on input Y2 are still taken into account by the Reflex iC60 circuit breaker.
N
Mode 3 is used for centralized opening or closing of the circuit breaker and local override:
Y1: centralized control enabled (Y1 = 1) or centralized control prohibited (Y1 = 0)
Y2: local one-shot closing and opening control
Y3: centralized closing control on rising edge and opening control on falling edge
26
PLC
Out In
P auto/OFF O/C 0V
24 V Y3
A9C6pppp
Y1 Y2
N P
In
24 V c
0 V
Ti24
auto/OFF
O/C
21 22 24 11 12 14
