Toe Alignment - Polaris Phoenix 200 Quadricycle Owner's Manual

MAINTENANCE

Toe Alignment

Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 3-6 mm toe out.
1. Position the vehicle on a
level surface.
2. Set the handlebars in a
straight-ahead position
and secure them in this
position.
3. Place a chalk mark on the
center line of the front
tires approximately 25
cm from the floor, or as
close to the hub/axle cen-
ter line as possible. Make
sure both marks are the
same distance from the
floor.

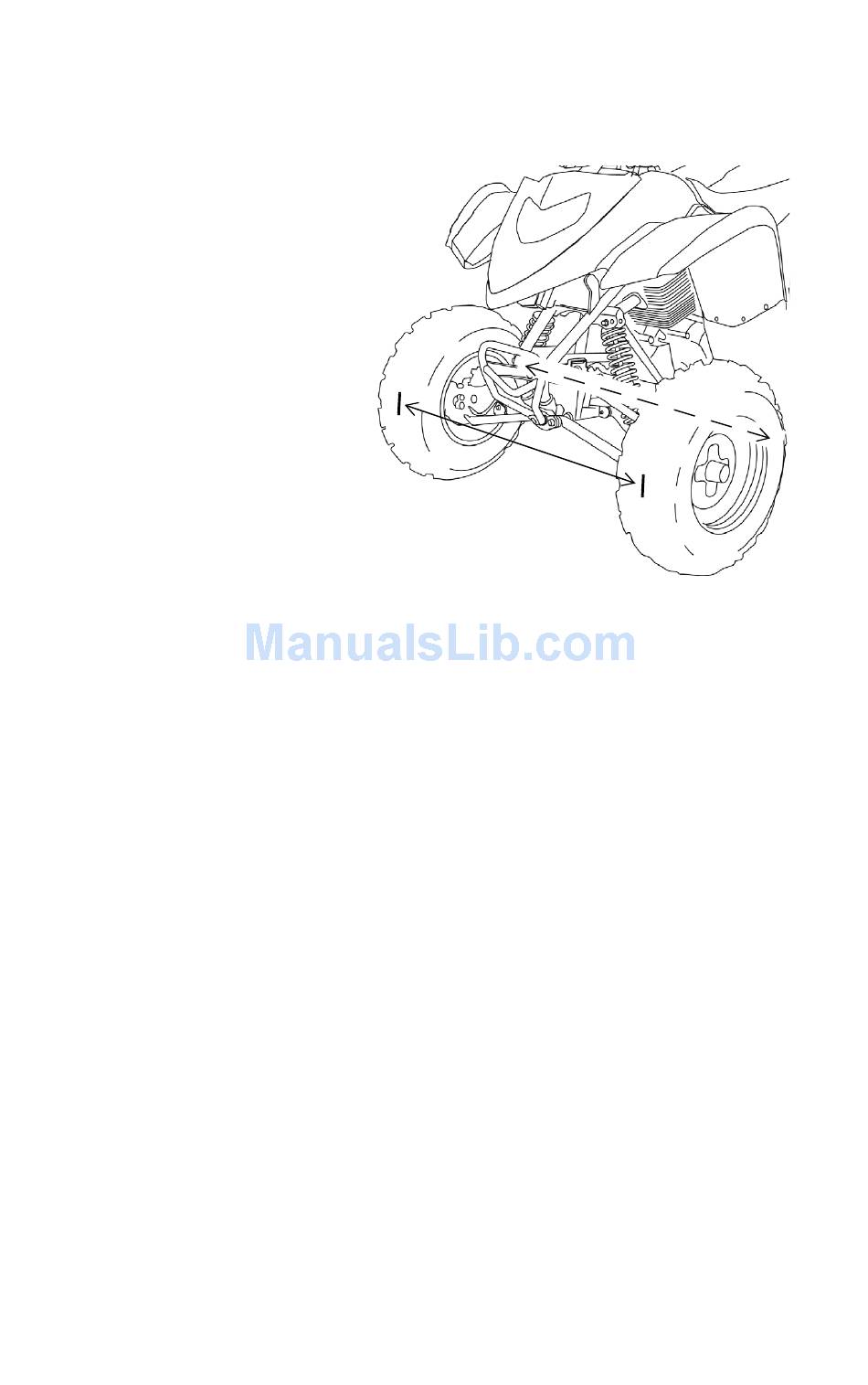

4. Measure the distance between the marks and record the
measurement (1).
5. Move the vehicle until the chalk marks are at the rear of the tires,
even with the hub/axle center line.
6. Measure the distance between the marks and record the
measurement (2).
7. Subtract measurement 2 from measurement 1. The difference is the
vehicle toe-out alignment.
8. If you discover improper alignment, see your Polaris dealer for ser-
vice.
