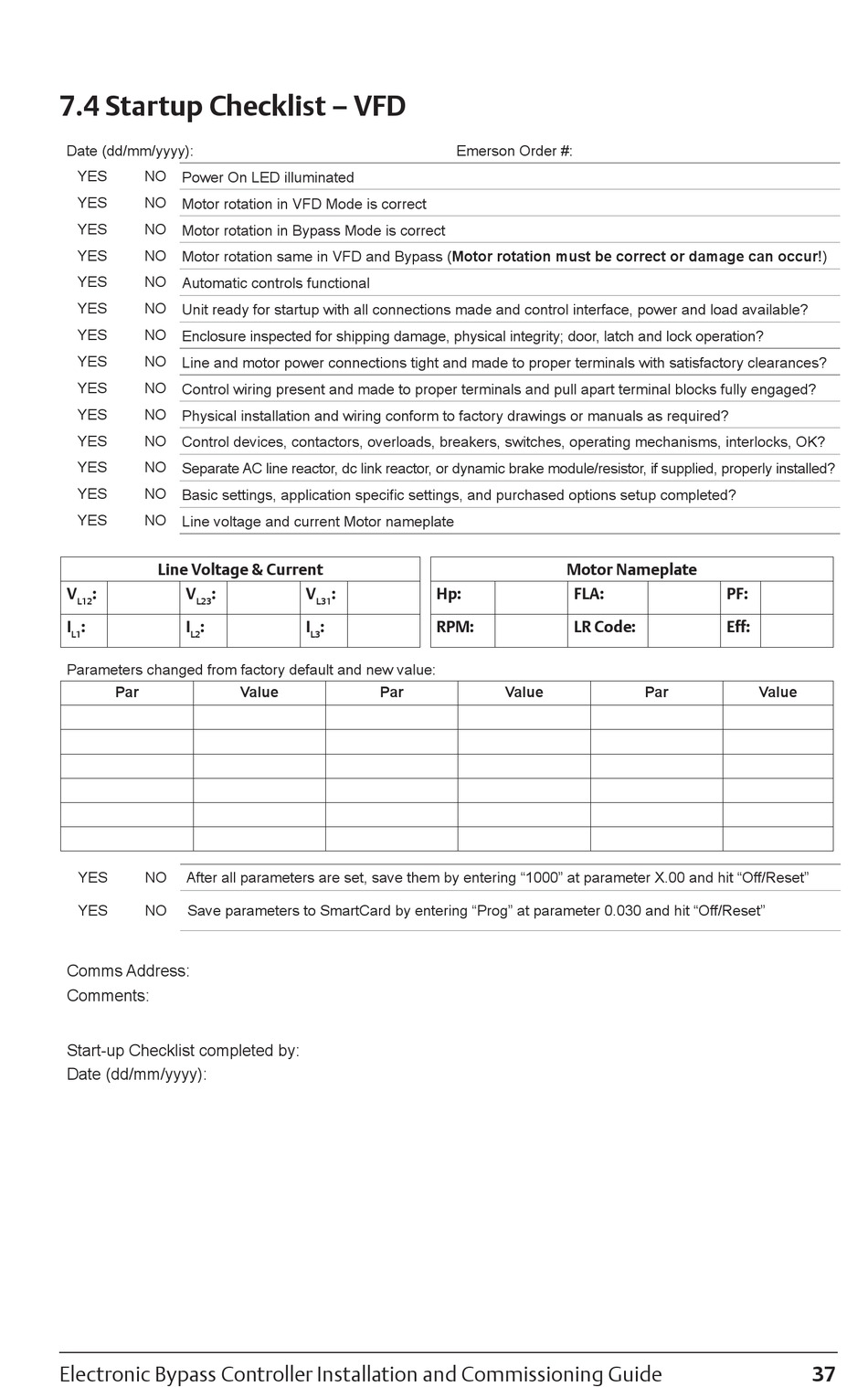

7.4 Startup Checklist – VFD
Start-Up Checklist – Variable Frequency Drive
Date (dd/mm/yyyy):
YES NO Power On LED illuminated
YES NO Motor rotation in VFD Mode is correct
YES NO Motor rotation in Bypass Mode is correct
YES NO Motor rotation same in VFD and Bypass (Motor rotation must be correct or damage can occur!)
YES NO Automatic controls functional
YES NO Unit ready for startup with all connections made and control interface, power and load available?
YES NO Enclosure inspected for shipping damage, physical integrity; door, latch and lock operation?
YES NO Line and motor power connections tight and made to proper terminals with satisfactory clearances?
YES NO Control wiring present and made to proper terminals and pull apart terminal blocks fully engaged?
YES NO Physical installation and wiring conform to factory drawings or manuals as required?
YES NO Control devices, contactors, overloads, breakers, switches, operating mechanisms, interlocks, OK?
YES NO Separate AC line reactor, dc link reactor, or dynamic brake module/resistor, if supplied, properly installed?
YES NO Basic settings, application specific settings, and purchased options setup completed?
YES NO Line voltage and current Motor nameplate
Line Voltage & Current
V : V :
L12 L23
I : I :
L1 L2
Parameters changed from factory default and new value:
Par
YES NO After all parameters are set, save them by entering "1000" at parameter X.00 and hit "Off/Reset"
YES NO Save parameters to SmartCard by entering "Prog" at parameter 0.030 and hit "Off/Reset"
Comms Address:
Comments:
Start-up Checklist completed by:
Date (dd/mm/yyyy):
Electronic Bypass Controller Installation and Commissioning Guide
V :
L31
I :
L3
Value Par
Emerson Order #:
Motor Nameplate
Hp: FLA:
RPM: LR Code:
Value
PF:
Eff:
Par Value
