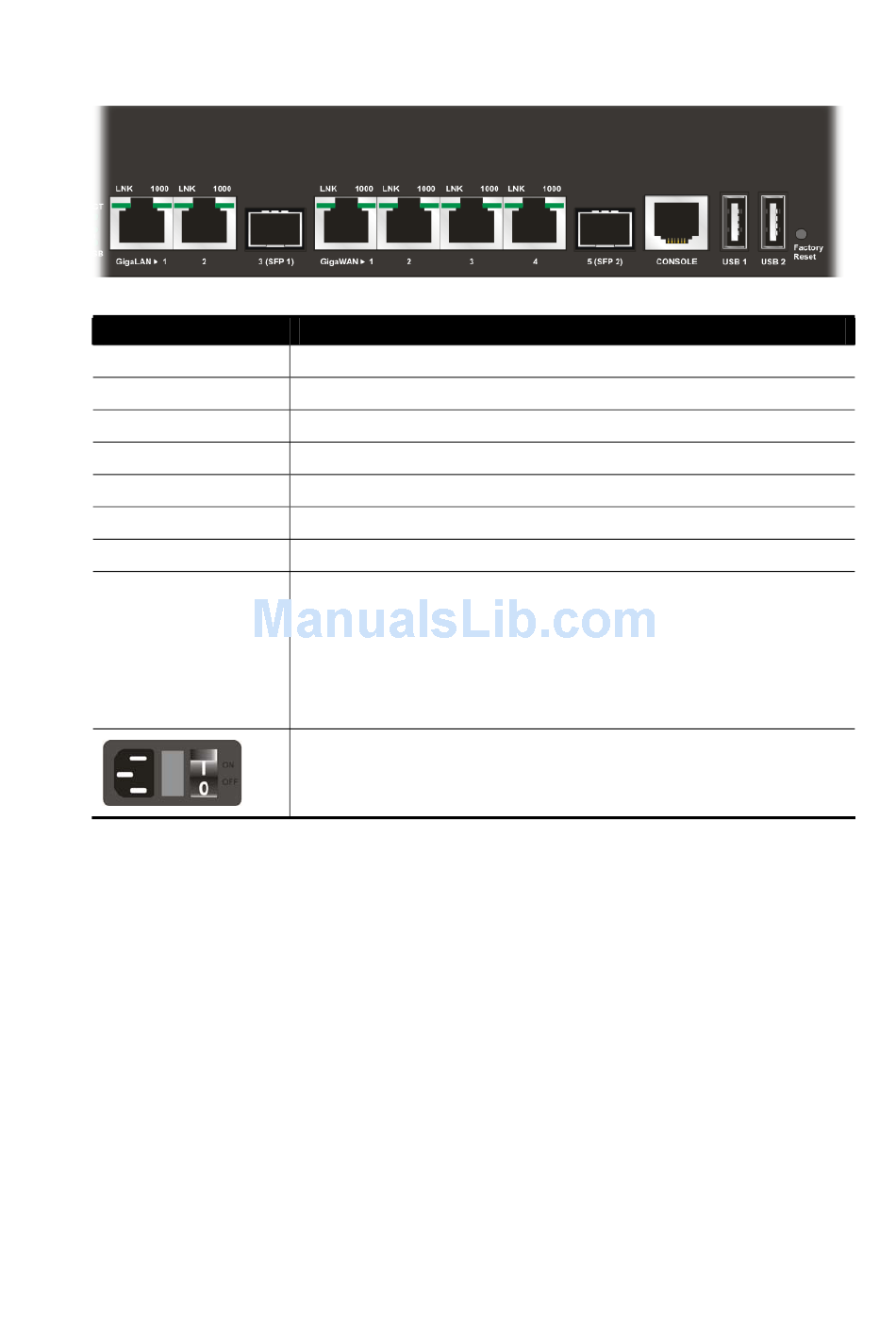

Connectors - Draytek vigor3900 Quick Start Manual

3 . 2 C o n n e c t o
3 . 2 C o n n e c t o
Interface
Console
GigaLAN1 / 2
3(SFP)
GigaWAN1/2/3/4
5(SFP)
Console
USB1 / USB2
Factory Reset
r s
r s
Description
Provided for technician use.
Connecter for local network devices.
Connecter for SFP module.
Connecter for remote network devices.
Connecter for SFP module.
Provided for technician use.
Connecter for the USB device.
Used to restore the default settings. Turn on the router
(ACT LED is blinking). Press the hole and keep for more
than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the
router will restart with the factory default
configuration.
Connecter for a power cord.
ON/OFF - Power switch.
