Boss DR-01s Owner's Manual

Rhythm partner for acoustic guitar
Hide thumbs

Advertisement

Table of Contents

Owner's Manual
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING
THE UNIT SAFELY" and the Owner's Manual (p. 22)). After reading, keep the document(s) where it will be
available for immediate reference.
© 2017 Roland Corporation
Enjoy playing your acoustic guitar accompanied by a variety of rhythms
2
4
5
6
8
10
Appendices
13
20
22
22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-01s and is the answer not in the manual?

Questions and answers

влад
February 24, 2025

1. все страницы руководства не переводятся на русский язык, только шапка. 2. на 2й день после покупки др.машины перестала включаться

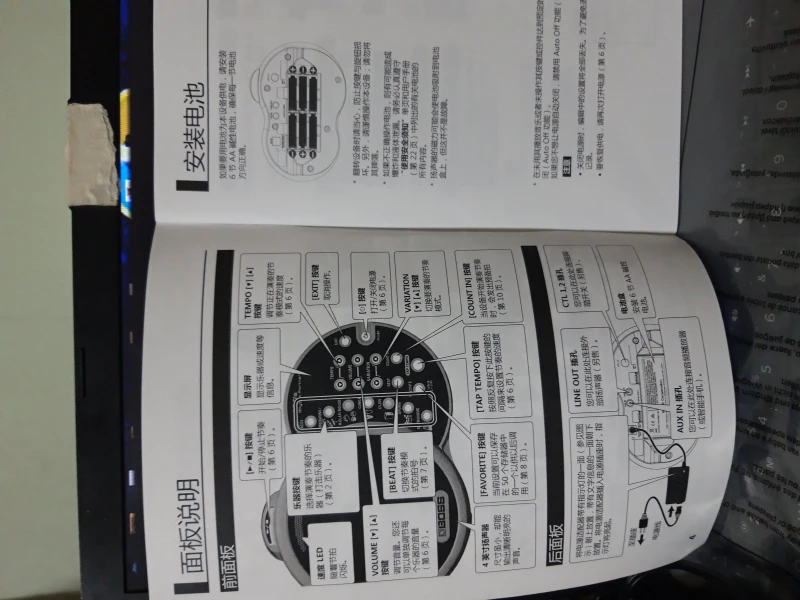

User image 67bc4a834533d
0

Subscribe to Our Youtube Channel

Related Manuals for Boss DR-01s

Summary of Contents for Boss DR-01s

  • Page 1: Table Of Contents

    Enjoy playing your acoustic guitar accompanied by a variety of rhythms Owner’s Manual Enjoy Sounds Like These Advanced Use (Settings) Panel Descriptions Appendices Installing Batteries USING THE UNIT SAFELY Playing Rhythms IMPORTANT NOTES Saving Favorite Settings (Favorite) Advanced Use (Performing) Before using this unit, carefully read “USING THE UNIT SAFELY”...

  • Page 2: Enjoy Sounds Like These

    “hembra” “congas.” timbale. (female). Drum set This is a set of multiple percussion instruments that includes a snare drum, bass drum, and cymbals. The DR-01s contains standard, rock, brush, and electro drum sets.
  • Page 3 Enjoy Sounds Like These Tambourine Claves Triangle This percussion instrument consists This is suspended from This instrument of two sticks that are a string, and played by has multiple small played by striking one striking it with a metal cymbals attached to a against the other.

  • Page 4: Panel Descriptions

    Panel Descriptions Front Panel [s] button Display TEMPO [I] [H] button Shows information Starts/stops the such as the rhythm (p. 6). Adjust the tempo of instrument or the rhythm pattern tempo. that’s playing (p. 6). Instrument buttons Select the Tempo LED instrument [EXIT] button (percussion) that...

  • Page 5: Installing Batteries

    Installing Batteries If you want to use the unit on batteries, MEMO install six AA alkaline batteries, making sure If the following display appears, the that each battery is oriented correctly. batteries have run low. Battery low indication The batteries are low.

  • Page 6: Playing Rhythms

    Press an instrument button to Volume select a sound (p 2) Indicates the volume of the DR-01s. Adjusting the Tempo Use the VOLUME [I] [H] buttons to adjust the tempo of the rhythm Tempo Indicates the tempo of the rhythm.
  • Page 7 [H] buttons. 5 For instrument buttons that contain Now you understand the basic multiple instruments, you can hold operation of the DR-01s. down the [EXIT] button and use the VARIATION [I] [H] buttons to select More advanced uses are described on the first number of each instrument.

  • Page 8: Saving Favorite Settings (Favorite)

    Saving Favorite Settings (Favorite) The combination of instruments and the Recalling rhythm pattern can be saved as one of 50 settings (the Favorite function). Press the [FAVORITE] button Saved settings can be recalled whenever you The VARIATION [I] [H] buttons are lit, and like.
  • Page 9 Saving Favorite Settings (Favorite) Editing a Saved Favorite You can edit the settings of a saved favorite, and then re-save it. Press the [FAVORITE] button The VARIATION [I] [H] buttons are lit, and the favorite number is shown. Press VARIATION [I] [H] buttons Recall the favorite number (F.01–F.50) that you want to edit.

  • Page 10: Advanced Use (Performing)

    Advanced Use (Performing) Here we explain convenient functions that you Changing the Type of Count-In can use while performing. You can change the sound of the count-in, or Adding a Count Before Rhythm use an illuminated (silent) count. Starts Press the [COUNT IN] button You can insert a count before the rhythm The [COUNT IN] button is lit.
  • Page 11 Advanced Use (Performing) Fading-Out the Rhythm Doubling or Halving the Tempo You can gradually decrease (fade-out) the Here’s how to double or halve the tempo volume of the rhythm, and then stop. setting. Hold down the [EXIT] button, and Here’s how you can use fade-out use the TEMPO [I] [H] buttons 5 Hold down the [EXIT] button and press Suddenly stopping the rhythm at the...
  • Page 12 Use the controls of the external AUX IN device to adjust the volume of its sound. External speaker (sold separately) MEMO If a plug is inserted into the LINE OUT jack of the DR-01s, no sound is output from the speakers of the DR-01s.

  • Page 13: Advanced Use (Settings)

    Advanced Use (Settings) Adjusting the Volume of Each Adjusting the Reverb Level Instrument You can apply reverb (an effect simulating the reverberation of a hall) to the rhythm. When multiple instruments are playing the You can adjust the amount of reverb. rhythm, you can adjust the volume of each instrument.
  • Page 14 If footswitches (sold separately: FS-5U, FS-6, FS-7) are connected to the CTL 1, 2 jack, you can control the DR-01s without removing your hands from your instrument. You can assign various functions to pedals and use them to control the DR-01s, or use pedals to play percussion sounds or to recall a pre-specified favorite.
  • Page 15 VARIATION [H] button Control the tempo. TEMPO [I] T.DN and press the [L] button VOLUME [H] VO.U Control the volume. The DR-01s powers-on in a special mode VOLUME [I] VO.D that lets you assign the function. VARIATION [H] Change the VA.U variation.
  • Page 16 Drums stomp n.32 Drums piccolo snare n.33 Press the [L] button Drums tight snare n.34 Power-off the DR-01s. Drums cross stick n.35 Drums hi-hat close The next time you turn on the power, you n.36 Drums hi-hat pedal can use the percussion sound that you n.37...
  • Page 17 Favorite number (blinking) Press the [L] button The favorite number Power-off the DR-01s. recalled by the pedal is displayed. The next time you turn on the power, you can use the break function that you Use the VARIATION [I] [H] buttons assigned to the pedal.
  • Page 18 With the DR-01s powered-off, hold down the [COUNT IN] button and press the [L] button The DR-01s powers-on in a special mode that lets you change the color of the tempo LED. Tempo LED color Left: Color of the...
  • Page 19 Press VARIATION [I] [H] buttons press the [L] button Specify the time after which the power Factory Reset automatically turns off if the DR-01s has not been played or operated. Indication Explanation Press the [FAVORITE] button The Auto Off function is disabled The [FAVORITE] button blinks.
  • Page 20 (p. 4). Do not use any AC adaptor or power cord connected to an outlet and to other than the supplied items. Doing so will cause Power won’t the DR-01s? malfunctions. turn on Are batteries installed? Taking care to observe the correct orientation of the batteries, install six AA alkaline batteries (p.
  • Page 21 Appendices Specifications Stereo miniature AUX IN jack phone type LINE OUT Stereo miniature BOSS Rhythm Partner DR-01s: Rhythm machine jack phone type Connectors Maximum 1/4-inch TRS CTL 1, 2 jack Polyphony phone type Tempo 40–300 DC IN jack Time Signature...

  • Page 22: Using The Unit Safely

    USING THE UNIT SAFELY WARNING WARNING Concerning the Auto Off function Use only the supplied AC adaptor and the correct voltage The power to this unit will be turned off automatically after a Be sure to use only the AC adaptor predetermined amount of time has supplied with the unit.
  • Page 23 • Roland and BOSS are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
