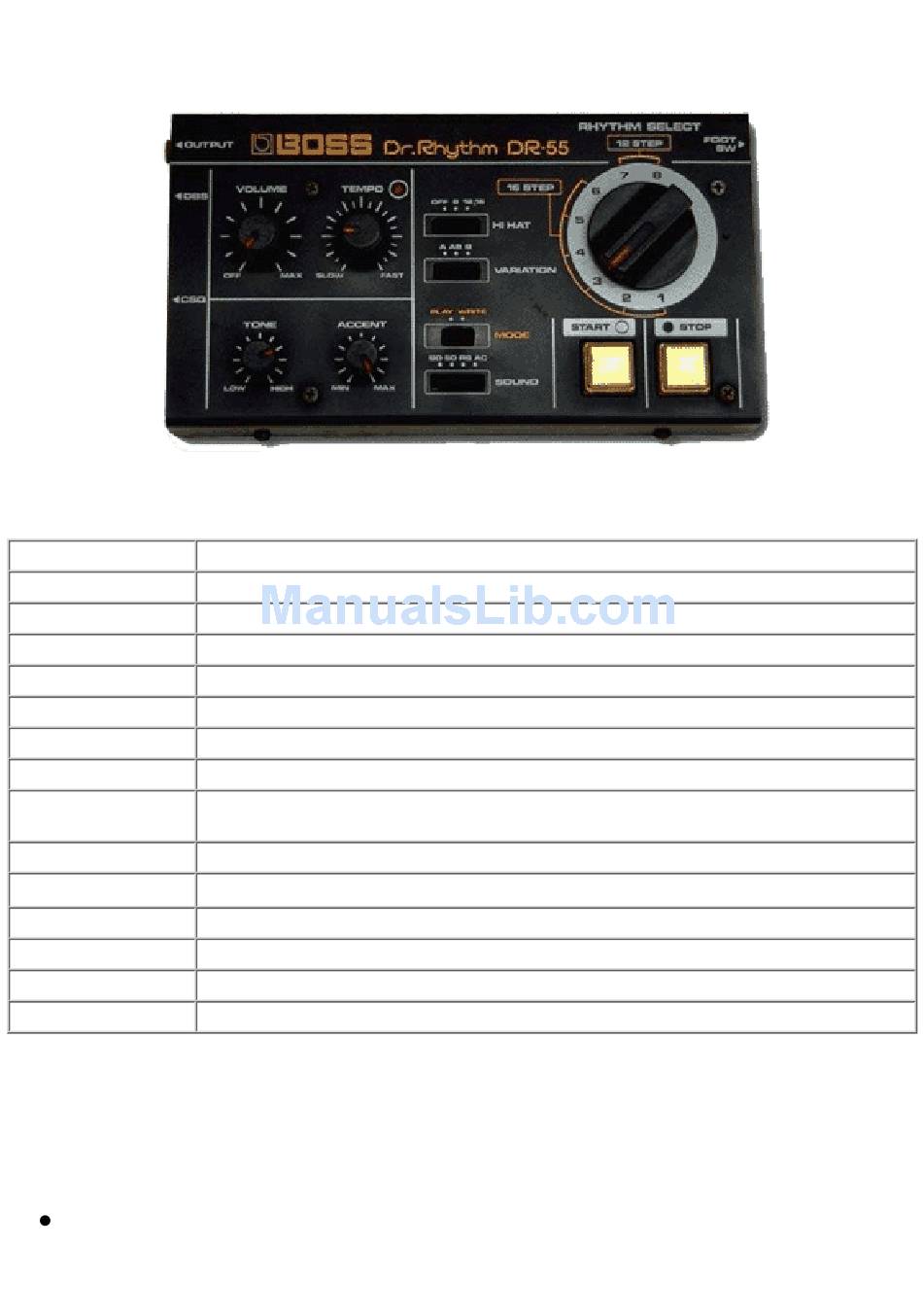

The original for all Dr Rhythm machines! Boss Dr Rhythm DR-55 was the first drummachine from Roland with the name Boss 1979. The retail price list for a Dr-55 was back in 1st of January 1982 $195. It has four sounds, one mono output and can be controlled with control pulses from outside (DBS or CSQ).
Page 2
A standard pattern hi hat sound can also be added to each rhythm. Accents can also be programmed into each pattern. Other machines such as a sequencer or synthesizer can be used with Dr. Rhythm. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - features 01.htm (1 sur 2) [15/12/2003 01:12:13]...
1. Set the controls as shown in the drawing. ([#6] to 1/8 note hi hat, [#7] to A/B Variation, [#8] to play mode.) 2. Press START [#11] to start the rhythm and STOP [#12] to stop it. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - play mode 02.htm (1 sur 2) [15/12/2003 01:12:51]...
In other words, think of : as being: To load this pattern. press [#11]for a 1/16 note and [#12] for a Rest. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - write mode 03.htm (1 sur 4) [15/12/2003 01:13:19]...
Page 5
If there is no connection at the OUTPUT jack [#14], the DR-55 can not be turned on. [#2] TEMPO Control Controls the tempo of the rhythm when played. [#3] TEMPO Indicator LED file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - fonction 04.htm (1 sur 3) [15/12/2003 01:15:05]...
If the CSQ jack [#16] is connected to the CSQ-100 GATE INPUT jack, the CSQ-100 GATE REWRITE mode can be used for programming rhythm patterns loaded into the DR-55. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - devices 05.htm (1 sur 4) [15/12/2003 01:15:33]...
5. Being careful not to pinch the wires, replace the battery case in its compartment. 6. Close the lid and replace the screw. Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - batterie 06.htm [15/12/2003 01:16:04]...
Page 8
Dr Rhythm DR-55 - Sound Of Music BOSS DR RYTHM DR-55 Standard Rhythm Patterns file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - rythm patterns.htm (1 sur 2) [15/12/2003 01:19:34]...
FOOT SWITCH Jack [#13] (for FS-1) Power Supply: 6V dc Dimensions: 211(w)x 116(d) x 53(h)mm Weight: 850g Accessories: Batteries UM-3 Connection cord (LP-25) Specifications are subject to change without notice. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - specification.htm (1 sur 2) [15/12/2003 01:20:19]...
Page 10
Dr Rhythm DR-55 - Sound Of Music Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - specification.htm (2 sur 2) [15/12/2003 01:20:19]...
Page 11
Dr Rhythm DR-55 - Sound Of Music Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - rythm patterns.htm (2 sur 2) [15/12/2003 01:19:34]...
Page 12
A percussion voice can be synthesized with the System 100M Synthesizer and triggered from the CSQ jack [#16]. In this way, another voice can be added to the DR-55 rhythm patterns. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - devices 05.htm (2 sur 4) [15/12/2003 01:15:33]...
Page 13
Dr Rhythm DR-55 - Sound Of Music Examples: Use the CSQ-100 Digital Sequencer for percussion voices with pitch or tone color changes. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - devices 05.htm (3 sur 4) [15/12/2003 01:15:33]...
Page 14
Dr Rhythm DR-55 - Sound Of Music Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - devices 05.htm (4 sur 4) [15/12/2003 01:15:33]...
Page 15
SOUND switch [#9] The rhythm is loaded one step at a time. Press [#11] for those steps where the sound is to occur and press [#12] where no sound is to occur. [#13] FOOT SWITCH Jack file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - fonction 04.htm (2 sur 3) [15/12/2003 01:15:05]...
Page 16
CSQ: +4v, 10ms Remember that these pulse levels will become lower as the batteries age. Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - fonction 04.htm (3 sur 3) [15/12/2003 01:15:05]...
Page 17
Set RHYTHM SELECT [#10] at either "7" or "8". Load in the same manner as above, but using twelve steps instead of sixteen. 12-step rhythm patterns can be used for triple rhythms such as 3/4 and 3/2. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - write mode 03.htm (2 sur 4) [15/12/2003 01:13:19]...
Page 18
RHYTHM SELECT [#10] and the VARIATION switch [#7] should be made as close to the bar lines as possible in order to produce a smooth transition. file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - write mode 03.htm (3 sur 4) [15/12/2003 01:13:19]...
Page 19
Dr Rhythm DR-55 - Sound Of Music Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - write mode 03.htm (4 sur 4) [15/12/2003 01:13:19]...
Page 20
These controls are covered in detail in the following pages. NOTE: Do not change the position of the MODE switch [#8]. Back to Previous Page / On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - play mode 02.htm (2 sur 2) [15/12/2003 01:12:51]...
Page 21
Dr Rhythm DR-55 - Sound Of Music On to the Next Page Back To the Index file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - features 01.htm (2 sur 2) [15/12/2003 01:12:13]...
Page 22
A trigger is sent on every 16th note for which you've programmed an accent. There is also a Foot switch 1/4" for FS1 VIRTUAL DR-55 Play on a DR-55 - online (Keyboardmuseum): Virtual Boss Dr Rhythm DR-55 file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - Sound Of Music.htm (2 sur 4) [15/12/2003 01:18:42]...
Page 23
DR-55 Back Panel Manual SAMPLES Complete kit from DR-55, with kick, snare, rimshot & hihat. File File information Wav, 44.1 K, mono (30 Kb) Boss Dr Rhythm DR-55 file:///G|/MUSIQUE/notices/Manuels à assembler/Dr Rhythm DR-55 - Sound Of Music.htm (3 sur 4) [15/12/2003 01:18:42]...
