BA250 ATV Set up Instructions

Removal from Crate

1. Remove cardboard carton
2. Remove metal support
from metal frame.
from handlebars.
4. Remove brackets holding
3. Remove front wheels
rear axle to metal frame.
from metal frame.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baja motorsports BA250

Summary of Contents for Baja motorsports BA250

  • Page 1: Removal From Crate

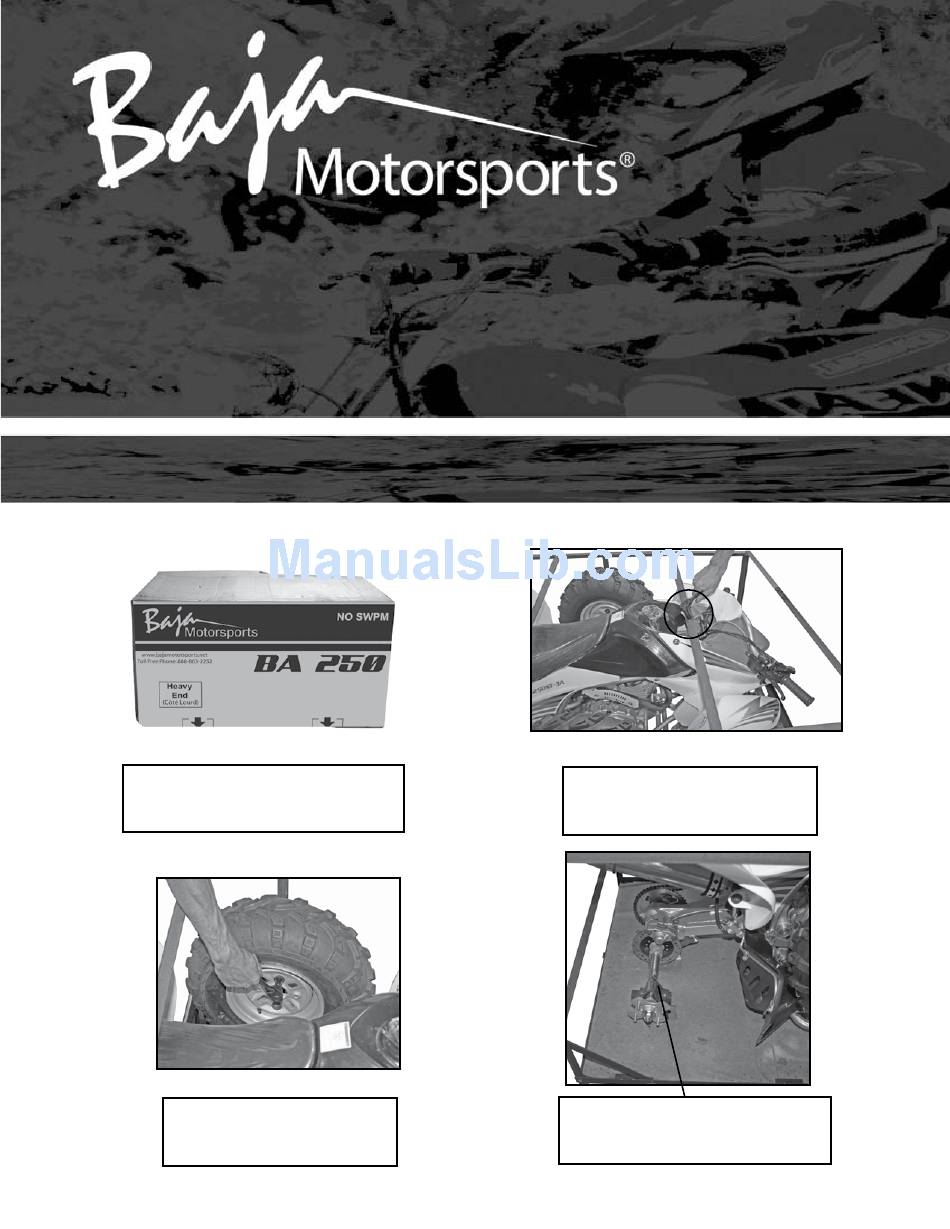

    BA250 ATV Set up Instructions Removal from Crate 1. Remove cardboard carton 2. Remove metal support from metal frame. from handlebars. 4. Remove brackets holding 3. Remove front wheels rear axle to metal frame. from metal frame.
  • Page 2 Removal from crate 5. Remove metal frame and parts included for assembly. Parts Rear Wheel Front Wheel Wheel covers...
  • Page 3 Parts Front bumper Tool Kit Tail light Battery straps Gas cap Ignition plate Lower handlebar Upper handlebar bracket clamp clamps...

  • Page 4: Front And Rear Wheels

    Front and Rear Wheels 7. Attach rear wheels with 17mm nut 6. Attach front wheels with 17mm nut and torque to 33 ft.lbs. and torque to 33 ft.lbs. Handlebar Ignition panel Upper handlebar Lower handlebar clamp bracket clamps 8. Place lower handlebar clamp under handlebar. 9.

  • Page 5: Front Bumper

    Front Bumper Repeat steps for opposite side 10. Attach front bumper to frame using 8mm bolts QTY 4. Torque to 17 ft.lbs. Tail light and Fender Brackets Repeat steps for opposite side 13. Attach top of fender bracket 11. Place rubber grommet to fender with 8 mm bolt.

  • Page 6: Battery Installation

    Battery Installation Battery located in under seat WARNING The following procedure is very dangerous and should be performed with utmost care and attention. Wear protective eyewear, rubber gloves, and have water available should electrolyte come in contact with skin or eyes.
  • Page 7 Battery Installation Note: The following page is for vehicles with battery’s containing separate electrolyte pack. Most battery’s will come with the electrolyte already sealed into the battery. Preparing the battery: · Place battery on level surface. Remove sealing tape from top. (see figure 20) ·...
  • Page 8 Battery Installation How to Initially Charge the battery: 1. Connect the red positive (+) cable to the red positive (+) pole of the battery. (see figure 23) 2. Connect the black negative (-) cable to the black negative (-) pole of the battery. (see figure 24) Figure 23 Note: The red positive (+) cable has a larger diameter than the black negative (-) cable.
  • Page 9 Gas and Oil Breather tube 14-A. Screw gas cap onto fuel tank filler neck and place breather tube in hole on ignition panel. 14-B. Fill gas tank as specified in owners manual. Gas cap Oil Plug 15. Fill engine with correct !!WARNING!! amount of oil.
