Page 1: Removal From Crate

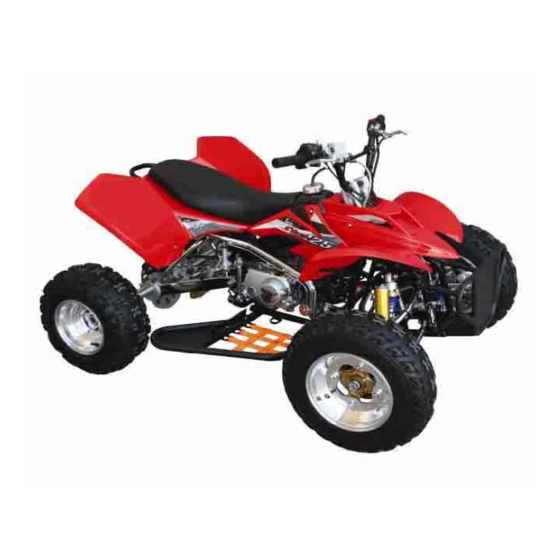

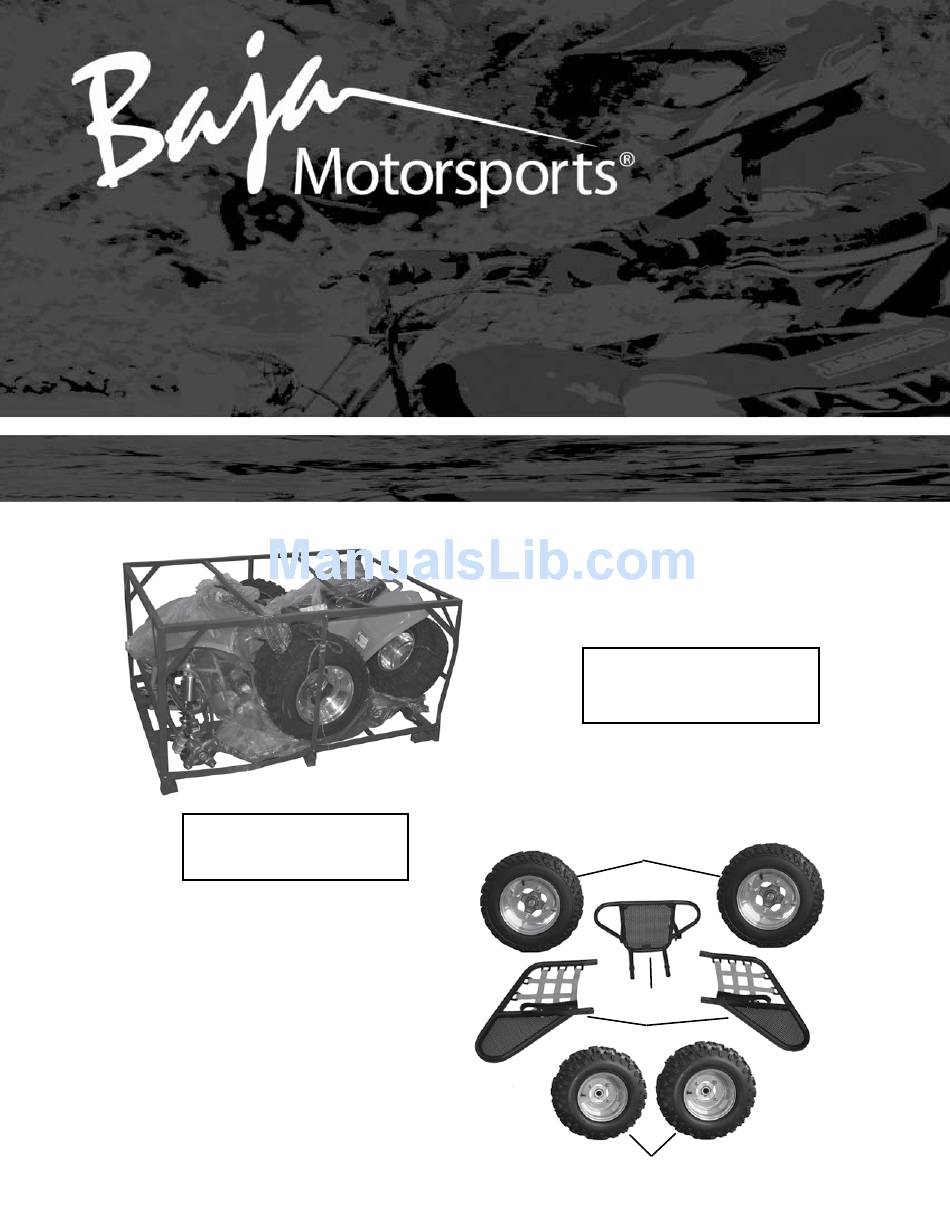

STR125 ATV Set Up Instructions Removal from crate 2. Carefully remove metal frame, wheels, nerf-bars, front bumper and hardware. Front wheels 1. Remove cardboard carton 19x6-10 from metal frame. Front bumper Nerf bars Rear wheels 18x6.50-8... - Page 2 Removal from crate 3. Remove wire straps from front and rear axles. Wheels Rear Wheel Front Wheel 18x6.50-8 19x6-10 Spacer Spacer Lug nut Lock washer Lock washer Lug nut 4. Attach front and rear wheels with spacer, lock washer and lug nuts provided. Torque to 35 ft.lb.
- Page 3 Handlebar 5. Install handlebars by using handlebar clamp provided. Torque bolts to 25Nm (18.5ft.lb.) Nerf bar Attachment Front bumper Attachment 6. Attach left and right nerf-bars to to frame with 7. Attach front bumper to frame with 8mm 8mm allen head screws and nuts provided. allen head screws and nuts provided.
- Page 4 Battery BATTeRy INSTALLATIoN INITIAL SeRVICe AND INSTALLATIoN oF BATTeRy: WARNING The following procedure is very dangerous and should be performed with utmost care and attention. Wear protective eye wear, rubber gloves, and have water available should electrolyte come in contact with skin or eyes. KeeP ALL CHILDReN AWAy FRoM THe AReA WHILe THIS PRoCeDURe IS BeING PeRFoRMeD.
- Page 5 Battery Note: The following page is for vehicles with battery’s containing separate electrolyte pack. Preparing the battery: · Place battery on level surface. Remove cap strip from top of battery. (see figure 20) Wear eye protection and rubber gloves for this step. once battery strip is removed, locate electrolyte in bottle and place over the Figure 20 six openings.
- Page 6 Gas and oil Handlebar 8. Fill engine with correct amount of oil. Refer to owners manual for oil types and quantity. 9. Fill gas tank as specified in owners manual. oil Cap 10. Refer to owners manual for !!WARNING!! proper starting instructions. This engine may be shipped with packing oil.
