Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.
PARTS LIST
NO.
COMPONENT
A
CHAIR BACK
B
SEAT FRAME
C
CUSHION SEAT
FRONT LEG
D1
(LEFT)
FRONT LEG
D2
(RIGHT)
SIDE
E1
STRETCHER
(LEFT)
SIDE
E2
STRETCHER
(RIGHT)
FRONT
F
STRETCHER
Assembly Instructions

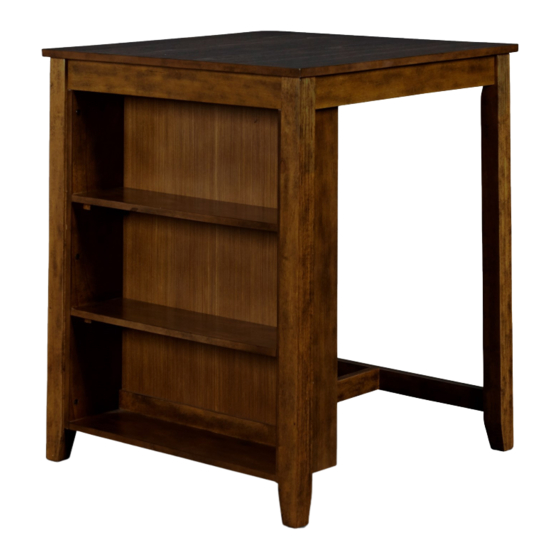

COUNTER TABLE SET W/2 CHAIRS
SKETCH
QTY.
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
1/4" DIA.
SPRING
WASHER
2
1/4" DIA.
BOLT
3
1/4" x 1 1/2"
BOLT
4
1/4" x 2 1/2"
BOLT
5
1/4" x 3 1/4"
WOOD SCREW
6
5/32" x 1 1/2"
ALLEN KEY
7
M4
SKETCH
QTY.
20 PCS
20 PCS
4 PCS
8 PCS
8 PCS
24 PCS
1 PC
PAGE: 1 OF 4
Advertisement
Table of Contents
Related Manuals for New Classic Furniture D-1701-32S-GIA
Summary of Contents for New Classic Furniture D-1701-32S-GIA
- Page 1 Assembly Instructions COUNTER TABLE SET W/2 CHAIRS Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions COUNTER TABLE SET W/2 CHAIRS To assemble the chairs, please follow the following steps and repeat for each chair: STEP 1 STEP 2 Lay the chair back on soft clean surface and install Insert side stretchers with wood screws. the seat frame.
- Page 3 Assembly Instructions COUNTER TABLE SET W/2 CHAIRS PARTS LIST HARDWARE LIST COMPONENT SKETCH QTY. COMPONENT SKETCH QTY. FLAT WASHER TABLE TOP 8 PCS 1 PC 5/16” DIA. SPRING WASHER BOX PANEL 1 PC 8 PCS 5/16” DIA. FRONT LEG LONG BOLT 1 PC 8 PCS LEFT...
- Page 4 Assembly Instructions COUNTER TABLE SET W/2 CHAIRS To assemble the table, please follow the following steps: STEP 1 STEP 2 (Right) (Right) (Left) (Left) (Right) (Left) STEP 3 STEP 4 (Left) (Right) PAGE: 4 OF 4...
