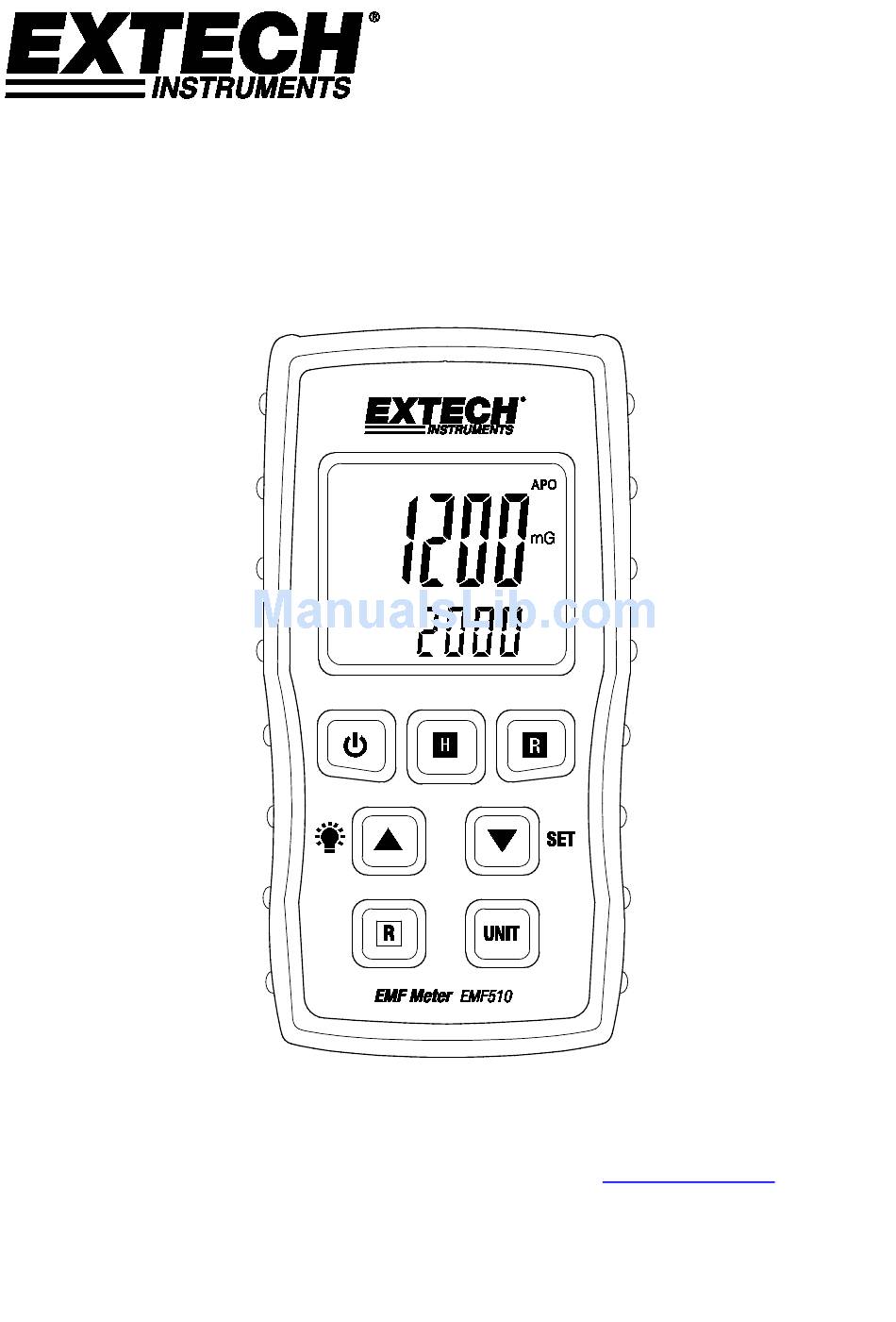

- Page 1 USER MANUAL EMF Meter Model EMF510 Additional User Manual Translations available at www.extech.com...

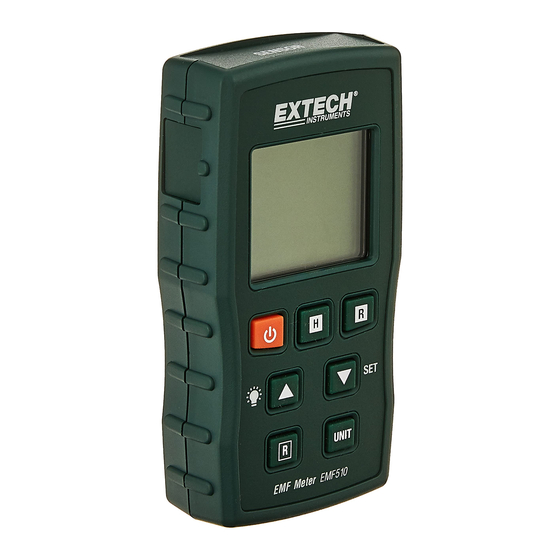

- Page 2 Introduction Thank you for selecting the Extech EMF510 EMF Meter. This instrument measures electromagnetic field radiation levels near power lines, appliances and industrial devices. Electromagnetic radiation is a ubiquitous type of energy that takes many forms such as radio waves, microwaves, X-rays, and gamma rays. The EMF510 measures radiation from voltage, current, electrical, and magnetic fields.
-
Page 3: Meter Description
Unit button Down arrow/SET button MAX/MIN Record button Display Hold button EMF Sensor LCD Description MAX/MIN Record Icon MAX Display MIN Display Display Hold Low Battery Indicator Auto Power OFF Unit of Measure and EMF Reading Selected EMF Range EMF510-en-GB_V1.0 8/17... -
Page 4: Operation
Operation Taking a Measurement The EMF510 is a single axis meter. To get an indication of all three axes you must take one reading for each plane. Short press the power button. If the LCD does not switch on, check the batteries located in the rear battery compartment. -
Page 5: Maintenance
Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. EMF510-en-GB_V1.0 8/17... -
Page 6: Specifications
±(5%rdg + 3dgt) 20.0 to 200.0 @50 or 60Hz 0.0 to 200.0 200 to 2000 Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com EMF510-en-GB_V1.0 8/17...
