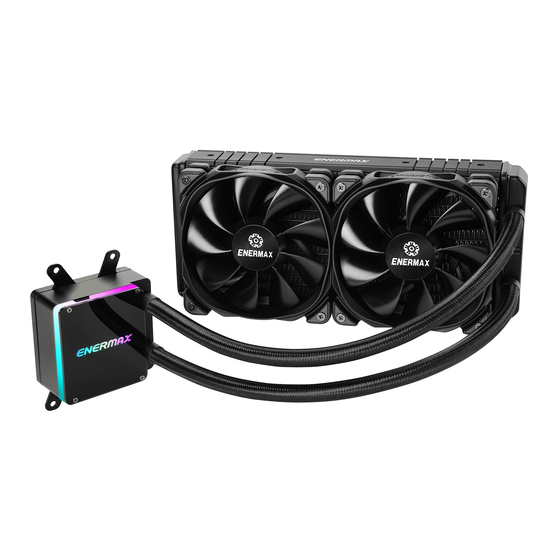

- Page 1 Us e r ’ s M anua l Incredible 500W+ TDP LIQTECH...
-
Page 3: Limited Warranty
ENERMAX Technology Corporation agrees to repair or replace the product, at its own option and at no charge, if, during the warranty period, it is returned to nearest ENERMAX Technology Corporation subsidiary/agent with all shipping charges prepaid and if inspection reveals that the product is defective. - Page 4 Web Site: http://www.enermax.com E-mail: enermax@enermax.com.tw This ENERMAX liquid cooler is warranted to be free from defects in material and workmanship for period stats in two(2) years. ENERMAX Technology Corporation agrees to repair or replace the product, at its own option and at no charge, if during the warranty perod, it is returned to...
-
Page 5: Specification
Specification Model ELC-LTTR240-TBP ELC-LTTR240-TBP ELC-LTTR360-TBP ELC-LTTR360-TBP Cold Plate Cold Plate Material Material Copper Copper Bearing Bearing Ceramic nano PI bearing Ceramic nano PI bearing MTBF MTBF 100,000 hours 100,000 hours Pump Pump Motor Speed Motor Speed 3000 rpm 3000 RPM Rated Voltage Rated Voltage 12 V... - Page 6 Part List (LIQTECH TR4 240) Fan x 2 Cooler x 1 Case Screw x 8 Fan Screw x 8 / SP3 Spring Screw x 4 AMD TR4 Screw x 4 Thermal Grease x 1 PWM Y cable x 1 Molex adapter x 1...
- Page 7 Part List (LIQTECH TR4 360) Fan x 3 Cooler x 1 Case Screw x 12 Fan Screw x 12 / SP3 Spring Screw x 4 AMD TR4 Screw x 4 Thermal Grease x 1 PWM 3 to 1 cable x 1 Molex adapter x 1 - 5 -...
- Page 8 AMD Installation Step 1 Attach the fan and the radiator to the chassis Schrauben Sie den Lüfter und den Radiator am Gehäuse fest. Fixez le ventilateur et le radiateur sur le châssis Fissare la ventola e il radiatore al case Fijar el ventilador y el radiador a la caja Zamontuj wentylator i radiator na obudowie komputerowej.
- Page 9 AMD Installation Step 2 Tighten the AMD TR4 / SP3 screw to the motherboard Schrauben Sie die Backplate mit den passenden AMD TR4 / SP3-Abstandshaltern am Mainboard fest. Serrez la vis du support AMD TR4 / SP3 à la carte-mère Fissare i montanti per AMD TR4 / SP3 alla scheda madre Fije los tornillos de pilar para AMD TR4 / SP3 a la placa madre Przykręć...
- Page 10 AMD Installation Step 3 Apply the thermal grease evenly on the CPU surface Verteilen Sie gleichmäßig eine dünne Schicht Wärmeleitpaste auf der CPU-Oberfläche. Appliquez une couche uniforme de pâte thermique sur la surface du CPU Applicare in modo uniforme la pasta termica sulla superficie della CPU Aplicar de forma uniforme la pasta térmica en la superficie de la CPU Nałóź...
- Page 11 AMD Installation Step 4 Remove the protect film from the cold-plate Entfernen Sie die Schutzfolie von der Kühlplatte der Pumpe. Retirez le film protecteur de la plaque-froide Rimuovere la pellicola di protezione dalla piastra di raffreddamento Quite la película de protección del bloque de refrigeración Zdjąć...
- Page 12 AMD Installation Step 5 Place the pump on the CPU and tighten the spring screws until all four corners are secured Platzieren Sie die Pumpe auf der CPU und drehen Sie die Federschrauben fest bis alle vier Seiten fixiert sind. Placez la pompe sur le CPU et serrez les vis à...
- Page 13 AMD Installation Step 6 Pump Pump 3 pin 4 pin Connect the pump power connector to the motherboard. Notice: If you recognize that your mainboard's CPU fan or PWM sockets do not provide enough voltage to power the pump, please use the included 4-pin Molex adaptor and connect the pump directly to your PSU.
- Page 14 AMD Installation Step 7 PWM Y cable 4 pin Connect the fan connector to the motherboard Schließen Sie den 4-Pin-PWM-Stecker des Lüfters am Mainboard an. Branchez le connecteur du ventilateur à la carte-mère Collegare il connettore della ventola alla scheda madre Conecte el conector del ventilador a la placa madre Podłącz wtyczkę...
- Page 15 - 13 -...
- Page 16 ©2017 ENERMAX TECHNOLOGY CORPORATION. All right reserved. Specifications are subject to change without prior notice. Some trademarks may be claimed as the property of others. Aug. 2017...
