Gooxi RMC4136-670-HSE User Manual

Hide thumbs Also See for RMC4136-670-HSE:

Advertisement

Quick Links

Download this manual
RMC4136-670-HSE
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMC4136-670-HSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gooxi RMC4136-670-HSE

Summary of Contents for Gooxi RMC4136-670-HSE

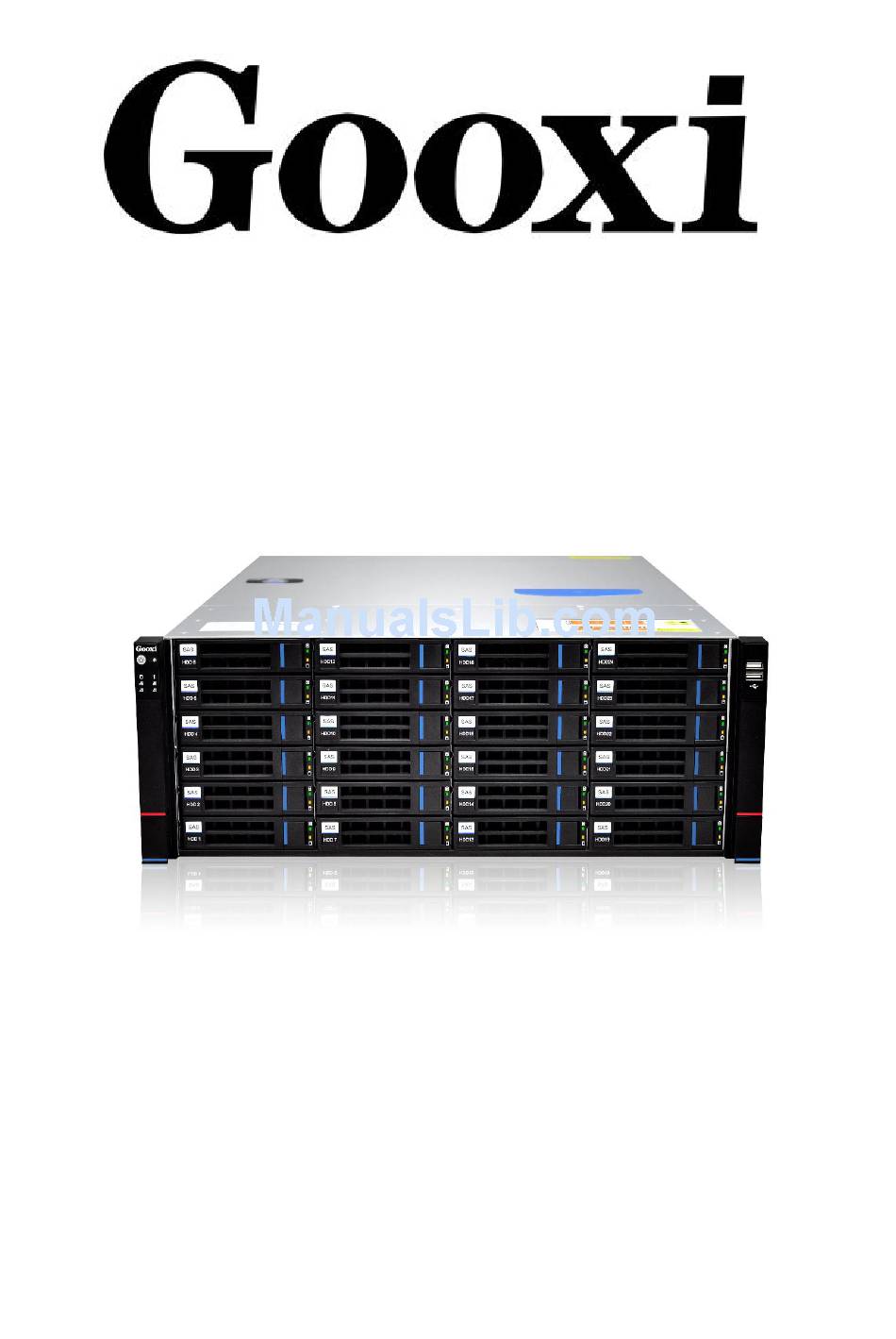

  • Page 1 RMC4136-670-HSE User Manual...
  • Page 2 Version 1.0 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 3 Content Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Easy Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 4 Internet bar server, database server, VOD storage server, HPC server, and so on. The server chassis is different from ordinary desktop chassis that pays more attention to appearance design, as it focuses on the quality and content. Gooxi RMC4236-670-HSE server chassis uses imported first-class SGCC galvanized steel,...
  • Page 5 Chapter 1 Chassis Overview Chassis Structure （1） Top cover （2） Rear window （3） Ventilation wall （4） Backplane （5） Hard disk module （6） Base （7） Hard disk box （8） Left-side ear （9） Right-side ear Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 6  16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply.  0～35 SAS - label.  One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Rear view: Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 7 The above picture shows the front panel buttons and LED indicators; each button or indicator light has its own function and status description that are described in the following table: LED Status Description Picture LED Appearance Description LOGO blue light is The device is on Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 8 Fault LED StatusLED 1、 Act LED 2、 FaultLED 3、StatusLED 4、LED description is as follows： Function Act LED Fault LED Status LED Hard disk at site Hard disk Flash 4Hz/s activity Hard disk Flash 4Hz/s location Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 9 Hard disk fault RAID Flash 1Hz/s reconstruction 1.7 Brief Introduction to Backplane The standard configuration of Gooxi backplane models are RMC4124-BPE-12G and RMC2112-BPE-12G, and the specific description is as follows: RMC4124-BPE-12G Correspondin Interface / jumper / Correspon Interface / jumper / slot...
  • Page 10 1.8 Introduction to the Output Interface of Backplane Hard Disk Front-built 24-bit expander backplane order: Back-built 12-bit expander backplane order: 1.9 机箱内部扩展背板连接示意图 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 11 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 12 Chapter 2 Easy Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 4136 Chassis Cover ⑴ Unscrew the top cover screws ⑵ Press the button of chassis back cover ⑶ Push the back cover Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 13 (4) Pull the back cover 2.2 Introduction to the Installation Steps of Gooxi4136 Chassis Fan Module ⑴ Install the shock-proof soft nails into the fan. ⑴ 分别将 4 个 8038 风扇安装在风扇模组支架里。 ⑵ 风扇安装完成效果图。 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 14 ⑶ 分别将两个风扇模组安装在机箱内。 ⑷ 风扇模组安装完成效果图。 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 15 2.3 Introduction to the Insert and Plug Steps of Gooxi4136 Chassis Hard Disk ⑴ Press the button to pull out the hard disk from the hard disk site. Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 16 (2)Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 17 (1) Place the power supply case to the chassis according to the hole site, as shown in the figure below. (2) Fix the power supply bracket, and screw on the screws at the position marked in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 18 ⑴ 将整个底座（含后窗、电源外壳）推进去机箱内，并固定好螺丝。 Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 19 ⑵ 电源外壳完成安装效果图。 (2) Insert the hot-swappable power modules PSU1 and PSU2, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 20 (4)The final installation effect of power supply 2.5 Introduction to the Installation Steps of Motherboard on Gooxi 4136 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad.
  • Page 21 (2) After the motherboard active stud (8mm height) is installed, place the motherboard into the chassis and fasten motherboard screw at the hole site. As shown in the figure below: 2.6 Introduction to the Installation Steps of Rear-built Hard Disk on Gooxi 4136 Chassis Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 22 (dummy module) (2)2.5-inch hot-swappable hard drive module is installed and locked to the chassis base with a screw, as shown in the figure below: (3)Effect picture of 2.5-inch hot-swappable hard disk module locks screws Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 23 (4) Push the entire base (including 2.5-inch hard drive module) into the chassis, and fix the base and rear window screw. (5)Effect picture of completed installation of 2.5-inch hot-swappable hard drive module Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 24 (6)Install two 2.5-inch hard drives on the hard disk box, respectively (7)Insert two 2.5-inch hard drives into the rear hard disk module, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 25 (8)The completed installation effect is as follows Note: If customer selects two optional 2.5-inch hot-swappable hard drives, then Gooxi-type CRPS power must be equipped with. Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 26 Imported SGCC (galvanized steel sheet), ABS panel and punching net Chassis dimension 670*433*177mm(Depth * width * height) Chassis weight 19kg Package dimension 885*585*323mm(Depth * width * height） Overall gross weight 23KG Safety certification CE、FCC、RoHS Shenzhen Gooxi Hengyu Technology Co., Ltd...
  • Page 27 Note: This manual is a general instruction of RMC4136-670-HSE series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Hengyu Technology Co., Ltd...
