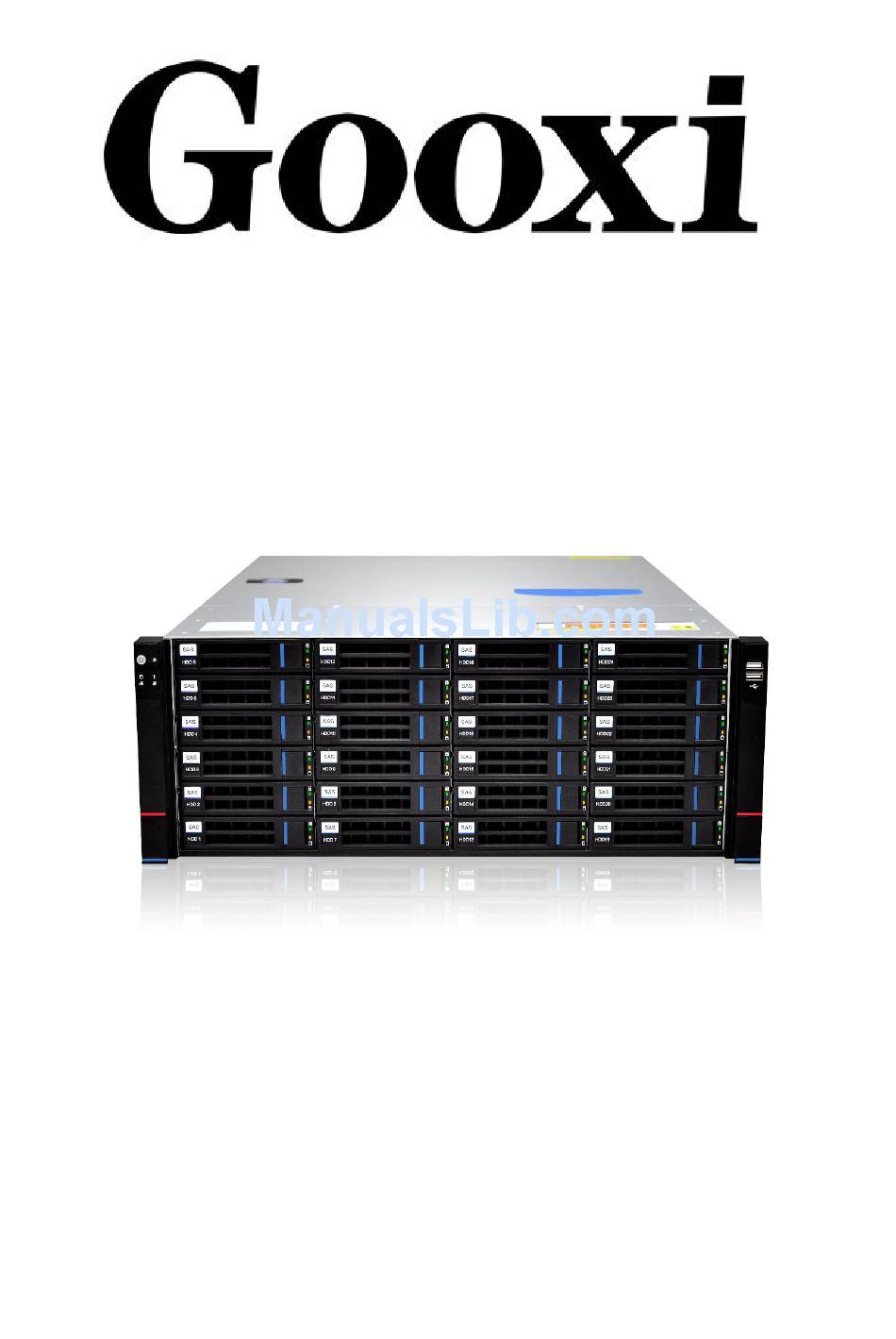

- Page 1 RMC4124-670-HSE User Manual Version 1.0...
- Page 2 Content Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Easy Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 3 Internet bar server, database server, VOD storage server, HPC server, and so on. The server chassis is different from ordinary desktop chassis that pays more attention to appearance design, as it focuses on the quality and content. Gooxi RMC4124-670-HSE server chassis uses imported first-class SGCC galvanized steel,...
- Page 4 Chapter 1 Chassis Overview Chassis Structure （1） Top cover （2） 2.5-inch hard disk box （3） Backplane （4） Rear window （5） Hard disk module （6） Fan （7） 3.5-inch hard disk box （8） Left-side ear （9） Right-side ear Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 5 16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply. 0～23 SAS - label. One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 6 Rear view: 1.5 Related Indicators of Chassis Panel Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 7 IPMI management software Internet access 1 connection The green light is on ⑥ is normal Internet access 2 connection The green light is on ⑦ is normal USB interface 2*USB2.0 interface ⑧ Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 8 Hard disk Flash 4Hz/s location Hard disk fault RAID Flash 1Hz/s reconstruction 1.7 Brief Introduction to Backplane The standard configuration of Gooxi backplane model is RMC4124-BPE-12G, and the specific description is as follows: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 9 PMC PM8044 Expander chip 1、2、3、4、5 4 Sockets of 4PIN SFF-8643 12Gb SAS input 6、7、8、9 11、12、13 temperature control fans interface 1.8 Introduction to the Output Interface of Backplane Hard Disk Front-built 24-bit expander backplane order: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 10 Chapter 2 Easy Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 4124 Chassis Cover ⑴ Unscrew the top cover screws ⑵ Press the button of chassis back cover Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 11 ⑶ Push the back cover (4) Pull the back cover 2.2 Introduction to the Installation Steps of Gooxi4124 Chassis Fan Module ⑴ Install the hot-swappable fan modules into the chassis, respectively. (1) Finished completion effect of fan module. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 12 (2) Finished completion effect of the last three fan modules. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 13 ⑴ Press the button to pull out the hard disk from the hard disk site. (2)Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 14 (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 15 (1) Place the power supply case to the chassis according to the hole site, as shown in the figure below. (2) Fix the power supply bracket, and screw on the screws at the position marked in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 16 (3)Insert the hot-swappable power modules PSU1 and PSU2, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 17 (4)The final installation effect of power supply 2.5 Introduction to the Installation Steps of Motherboard on Gooxi 4124 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 18 Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad. As shown in the figure below: Install Gooxi G1DE-4B dual circuit motherboard corresponding to the base hole site.
- Page 19 2.6 Introduction to the Installation Steps of Built-in 2.5-inch Hard Drive on Gooxi4124 Chassis ⑴ Install the 2.5-inch hard disk on the bracket. (2) As shown below: Install two 2.5-inch modules on the inside of the chassis (3)Completed installation effect Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 20 (4) Completed installation effect of two built-in hard disks Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 21 2.7 Introduction to the Installation Steps of Rear Hot-swappable 2.5-inch Hard Drive on Gooxi4124 Chassis (1) Replace the rear window suite of CRPS power supply case, and it supports the installation of 2.5 modules. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 22 (2) Effect picture of rear window suite after the power is completed. (3)2.5-inch hot-swappable hard drive module is installed and locked to the chassis base with a screw, as shown in the figure below: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 23 (4) Lock the screws at the rear window position. (5)Effect picture of completed installation of 2.5-inch hot-swappable hard disk module. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 24 (6)Install two 2.5-inch hard disks on the hard disk box (7)Insert two 2.5-inch hard drives into the rear hard disk module, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 25 (8)The completed installation effect is as follows Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 26 Note: If customer selects two optional 2.5-inch hot-swappable hard drives, then Gooxi-type CRPS power must be equipped with. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 27 Fixed mode of cabinet Ordinary Configuration Parameters Product material Imported SGCC (galvanized steel sheet), ABS panel and punching net Chassis dimension 670*444*177mm(Depth * width * height) Chassis weight 19kg Package dimension 902*591*318mm(Depth * width * height） Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 28 Overall gross weight 23KG Safety certification CE、FCC、RoHS Note: This manual is a general instruction of RMC4124-670-HSE series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Hengyu Technology Co., Ltd...
