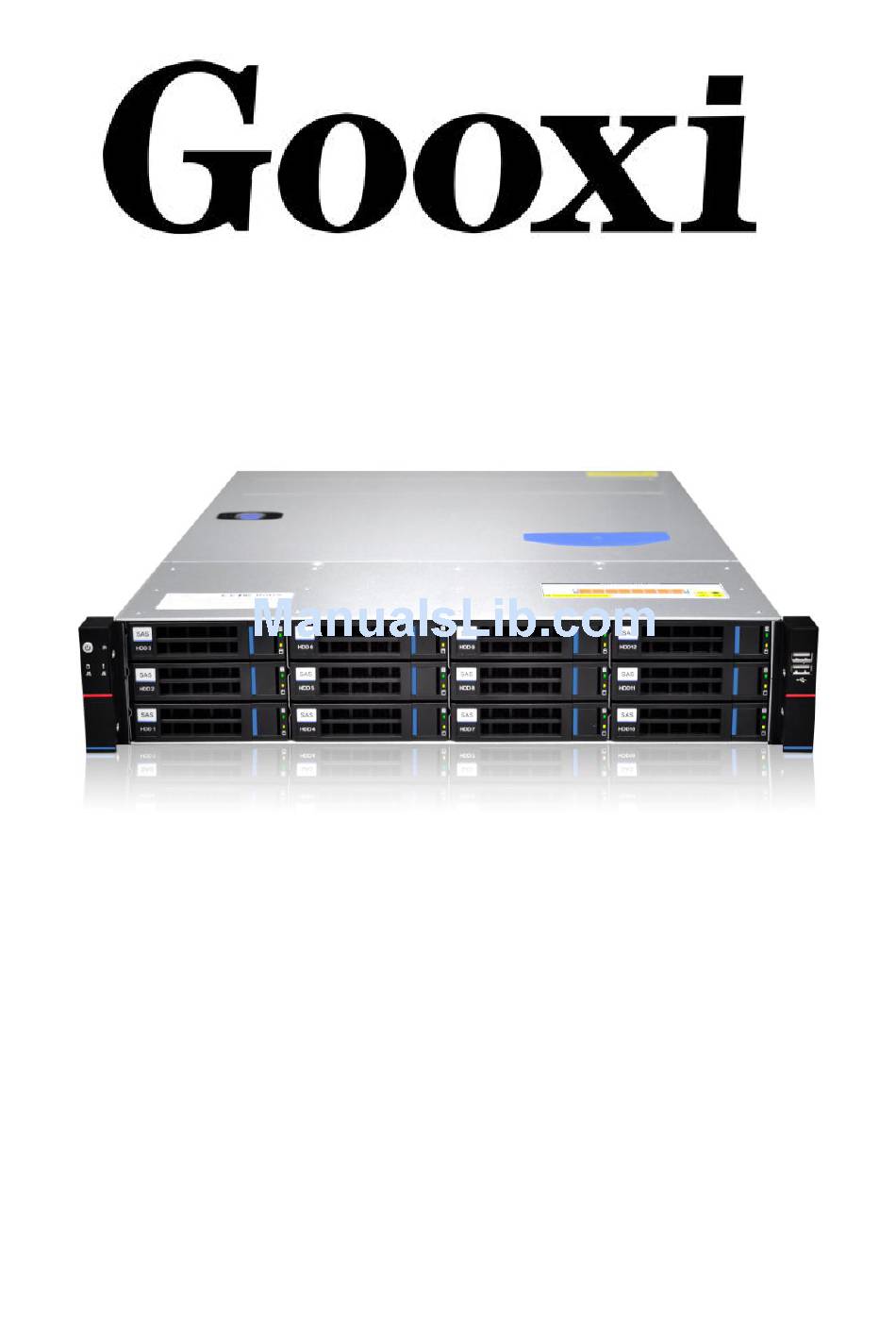

- Page 1 RMC2112-670-HSE User Manual Version 1.0...
- Page 2 Content Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Easy Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 3 Internet bar server, database server, VOD storage server, HPC server, and so on. The server chassis is different from ordinary desktop chassis that pays more attention to appearance design, as it focuses on the quality and content. Gooxi RMC2112-670-HSE server chassis uses imported first-class SGCC galvanized steel,...
- Page 4 Chapter 1 Chassis Overview Chassis Structure （1） Base （2） Rear window （3） Ventilation wall （4） Hard disk module （5） Top cover （6） Handle （7） Hard drive bracket （8） Fan Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 5 16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply. 0～11 SAS - label. One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Rear view: Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 6 LED Status Description Picture LED Appearance Description LOGO label (labeling or customized acrylic label) The green light is on The device is on ② Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 7 Fault LED StatusLED 1、 Act LED 2、 FaultLED 3、StatusLED 4、LED description is as follows： Function Act LED Fault LED Status LED Hard disk at site Hard disk Flash 4Hz/s activity Hard disk Flash 4Hz/s location Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 8 Hard disk fault RAID Flash 1Hz/s reconstruction 1.7 Brief Introduction to Backplane The standard configuration of Gooxi backplane model is RMC2112-BPE-12G, and the specific description is as follows: RMC2112-BPE-12G Correspondin Interface / jumper / Correspondin Interface / jumper / slot...
- Page 9 Chapter 2 Easy Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 2112 Chassis Cover ⑴ Unscrew the top cover screws ⑵ Press the button of chassis back cover ⑶ Push the back cover (4) Pull the back cover...
- Page 10 ⑴ Press the button to pull out the hard disk from the hard disk site. (2) Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 11 (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 12 (1) Place the power supply case to the chassis according to the hole site, as shown in the figure below (2) Install the power to the chassis according to the correct position, and then screw on the power supply screws at the position marked below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 13 (3) Fix the power supply bracket, and screw on the screws at the position marked in the figure below. (4) Insert the hot-swappable power modules PSU1 and PSU2, respectively Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 14 (5) The final installation effect of power supply. 2.4 Introduction to the Installation Steps of Motherboard on Gooxi 2112 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad.
- Page 15 As shown in the figure below: 2.5 Introduction to the Installation Steps of Rear-built Hard Disk on Gooxi 2112 Chassis (1) Install 2.5-inch Hot Swappable Hard Disk Module, as shown in the below；...
- Page 16 (2) Install two 2.5-inch hard drives on the hard disk box, respectively. (3) Insert two 2.5-inch hard drives into the rear hard disk module, respectively. (4) Completed installation effect is shown as follows Shenzhen Gooxi Hengyu Technology Co., Ltd...
- Page 17 Note: If customer selects two optional 2.5-inch hot-swappable hard drives, then Gooxi-type CRPS power must be equipped with. Chapter 3 Chassis Parameters Basic Parameters Chassis style Rack mount Chassis structure Applicable motherboard EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX Supported motherboard Gooxi、Intel、ASUS、SuperMicro、TYAN、MSI、GIGABYTE, etc. brands Power type...
- Page 18 902*591*228mm(Length * width * height） Overall gross weight 16KG Safety certification CE、FCC、RoHS Note: This manual is a general instruction of RMC2112-670-HSE series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Hengyu Technology Co., Ltd...
