RMC4104-790-HTF

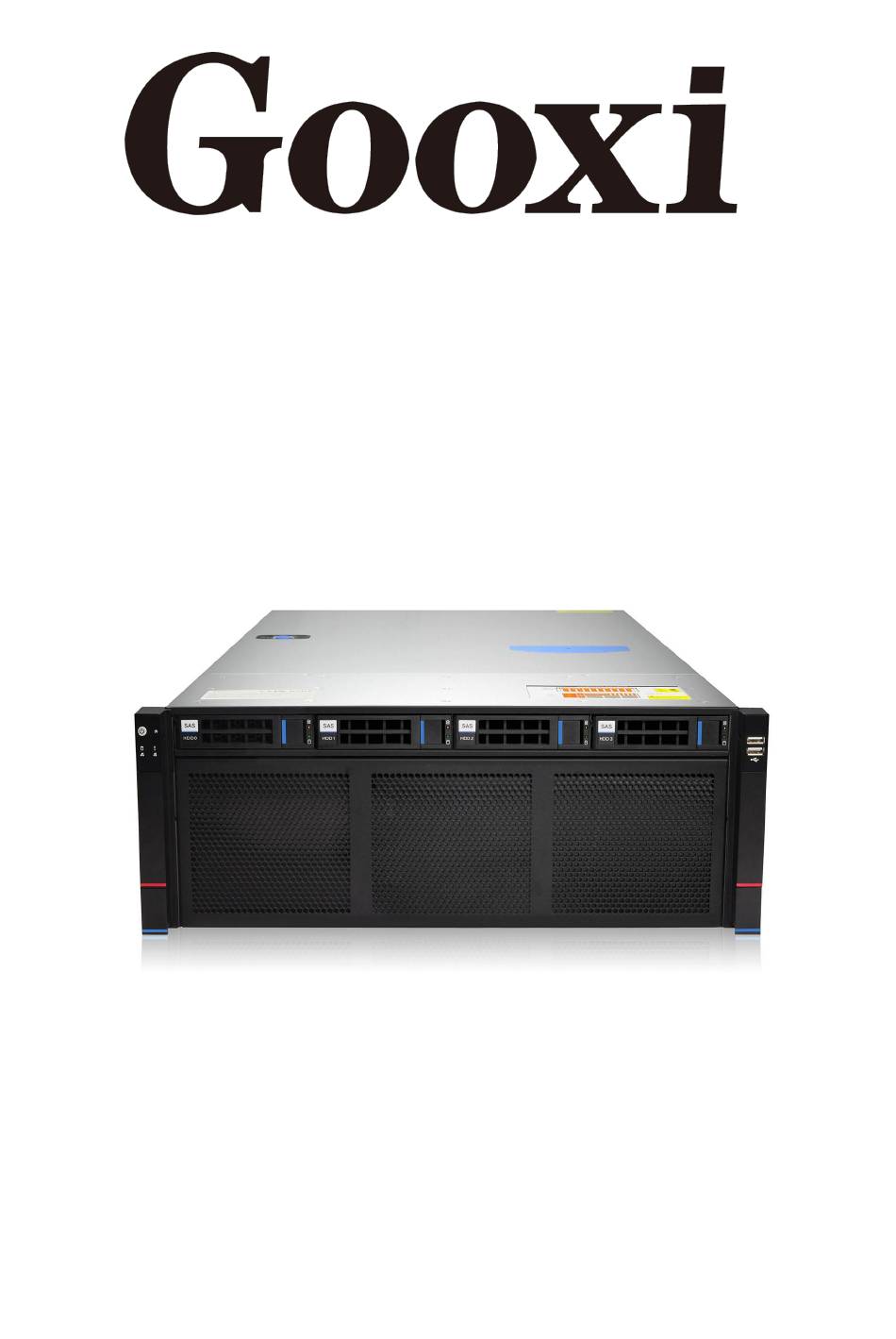

High-Density GPU Server Chassis
User Manual
Rev 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMC4104-790-HTF and is the answer not in the manual?

Questions and answers

Related Manuals for Gooxi RMC4104-790-HTF

Summary of Contents for Gooxi RMC4104-790-HTF

  • Page 1 RMC4104-790-HTF High-Density GPU Server Chassis User Manual Rev 1.0...
  • Page 2 In addition, given the higher stability requirements when the server is operated, the heat dissipation of the Gooxi RMC4104-790-HTF GPU server chassis is very in place. The design of the heat dissipation channel is reasonable, which can form a forward and backward ventilation heat dissipation channel, so as to take away a large amount of heat in the chassis in time and ensure the stable operation of the server.
  • Page 3 Moreover, Gooxi does not guarantee the accuracy or reliability of the results obtained by using this user manual or any information obtained through this user manual.
  • Page 4 Product Name: RMC4104-790-HTF GPU Server Chassis Version: V1.0 Publication date: March 2020 Terms: Words Meaning Slimline cable SFF8654-SFF8654, high speed signal transmission cable RAID Redundant Arrays of Independent Disks 8038 Fan Fan size of 80x80x38mm Electro Magnetic Interference SGPIO Serial General Purpose Input/Output protocol...
  • Page 5 Abbreviation Abbreviation English meaning Chinese meaning Central Processing Unit 中央处理器 Graphic Processing Unit 图形处理器 Serial Advanced Technology Attachment SATA 串行 ATA 接口规范 Serial Attached SCSI 串行 SCSI secondary SATA sSATA 扩展 SATA 接口 Mother Board 主板 Motherboard Interface Board 主板转接板/侧板 Backplane 背板...

  • Page 6: Table Of Contents

    2.3 Installation steps of GPU in front window of Gooxi 4104 chassis ................ 21 2.4 Installation steps of 3.5-inch hard disk on the front window of Gooxi 4104 chassis ..........23 2.5 Installation steps of 2.5-inch hard disk in rear window of Gooxi 4104 chassis .............25 2.6 Installation steps of Gooxi 4104 chassis motherboard ...................

  • Page 7: Chapter 1 Chassis Overview

    Chapter 1 Chassis overview 1.1 Chassis structure (rear view) Fig. 1.1 (1) 3.5-inch hard disk module (2) Upper 8038 fan module (3) GPU card (4) Motherboard bracket (5) Upper 2.5-inch hard disk module (6) Lower 8038 fan module (7) Rear window 8038 fan module (8) Lower 2.5-inch hard disk module (9) Power module...

  • Page 8: Chassis Structure (Front View)

    1.2 Chassis structure (front view) Fig. 1.2 (1) Upper cover plate (2) 2.5-inch hard disk box (3) Rear window (4) Upper 8038 fan module (5) Rear window 8038 fan module (6) Left side mount ear (7) 3.5-inch hard disk backplane (8) Hard disk module (9) Right side mount ear...

  • Page 9: Rear Window Structure

    1.3 Rear window structure Fig. 1.3 (1) Power supply bay (2) 2.5-inch hard disk box (3) I / O blank position (4) Expansion slot (5) 8038 fan module (6) 8038 fan module (7) 8038 fan module 1.4 Material package Fig. 1.4 (1) 96* #6-32*5mm countersunk screws used to fix the hard disk (2) 10* movable studs with a total height of 8mm are used to install the motherboard (3) 16* #6-32*6mm cross pan head screws are used to fasten the motherboard and power supply...

  • Page 10: Chassis View

    1.5 Chassis view Front view: Fig. 1.5 Rear view: Fig. 1.6...

  • Page 11: Chassis Panel Indicators

    1.6 Chassis panel indicators Fig. 1.7 The figure above shows the buttons and indicators on the front panel. Each button or indicator has its own function and status description, which is described in Table 1.1 below: LED status description Picture LED appearance Description LOGO label (labeling or customized...

  • Page 12: Hard Disk Indicator

    1.7 Hard disk indicator Fault LED StatusLED Act LED Fig. 1.8 (1) Act LED (2) Fault LED (3) Status LED (4) LED description is shown in Table 1.2 below: Function Act LED Fault LED Status LED Hard disk in place Light on Hard disk activity Flashing 4Hz/ s...

  • Page 13: Backplane Description

    1.8 Backplane description Gooxi standard backplane model: RMC1104-BP-12G. The specific instructions are as follows: Fig. 1.9 RMC1104-BP-12G Corresponding Port / jumper / slot Corresponding position Port / jumper / slot position 1, 2, 3, 4 4* 29PIN SAS output port...

  • Page 14: Power Adapter Board

    1.9 Power adapter board Gooxi standard power adapter board model is RMC4110G-PIB2, and the specific instructions are as follows: Fig. 1.10 RMC4110G-PIB2 Corresponding Corresponding Port / jumper / slot Port / jumper / slot position position 1, 2 2* 8PIN CPU power supply...

  • Page 15: Gpu Expansion Board

    2.0 GPU expansion board Gooxi GPU RM4110-PSWIB1expansion board model, and the specific instruction are as follows: Fig. 1.11 RM4110-PSWIB1 Corresponding Port / jumper / slot Corresponding position Port / jumper / slot position 1, 2, 3, 4 4* Slimline ports...

  • Page 16: Gpu Power Cable Port

    2.1 GPU power cable port Fig. 1.12 GPU power cable port description shown as table 1.6: RM4110-PSWIB1 Connector No. Description Note 1, 2, 3 P12V 4, 5, 6, 7, 8 Table 1.6...

  • Page 17: Riser Card

    2.1 Riser card Fig. 1.13 RM4110G-PEIB Corresponding Corresponding Port / jumper / slot Port / jumper / slot position position Riser bracket 1* PCIE X16 port 3, 4 2* Slimline SAS(SFF-8654) connector Table 1.7...

  • Page 18: Chapter 2 Installation Instructions

    (4) Lift up the rear cover plate 2.2 Installation of lower fan, deflector & upper fan of Gooxi 4104 chassis (1) Install 4 hot-swap fan modules in the lower layer in the chassis along the direction shown in the figure.
  • Page 19 Fig. 2.3 (2) Place the air deflector flat on the 4 fans on the lower layer as shown in the figure, and the two buttons indicated by the red arrow will automatically snap. Fig. 2.4...
  • Page 20 (3) Install 4 hot-swap fan modules on the upper layer in the chassis along the direction shown in the figure. Fig. 2.5 (4) Figure of fan module installed. Fig. 2.6...

  • Page 21: Installation Steps Of Gpu In Front Window Of Gooxi 4104 Chassis

    2.3 Installation steps of GPU in front window of Gooxi 4104 chassis (1) Remove the screws on the left and right sides of the front hard disk module. Fig. 2.7 (2) Take out the front hard disk module, as shown in Figure 2.8 below: Fig.
  • Page 22 Fig. 2.9 take out the fixing screw and bracket Fig. 2.10 installing GPU graphics card After installing the graphics card, install the front hard disk module in reverse according to the previous picture.

  • Page 23: Installation Steps Of 3.5-Inch Hard Disk On The Front Window Of Gooxi 4104 Chassis

    2.4 Installation steps of 3.5-inch hard disk on the front window of Gooxi 4104 chassis (1) Pull out the hard disk bracket, as shown in Figure 2.11 below: Fig. 2.11 (2) Put the 3.5-inch hard disk to the hard disk rack according to the screw hole position, as shown in Figure 2.12 below:...
  • Page 24 (3) After the hard disk is installed, see Figure 2.13 below: Fig. 2.13 (4) Insert the hard disk rack into the chassis, as shown in Figure 2.14 below: Fig. 2.14...

  • Page 25: Installation Steps Of 2.5-Inch Hard Disk In Rear Window Of Gooxi 4104 Chassis

    2.5 Installation steps of 2.5-inch hard disk in rear window of Gooxi 4104 chassis (1) Pull out the hard disk bracket, as shown in Figure 2.15 below: Fig. 2.15 (2) Put the 2.5-inch hard disk to the hard disk rack according to the screw hole position, as shown in Figure 2.16 below: Fig.

  • Page 26: Installation Steps Of Gooxi 4104 Chassis Motherboard

    (8mm high) at the corresponding position of the insulating pad according to the screw hole position of the motherboard. As shown in Figure 2.18 below: Fig. 2.18 corresponding base hole position for installing Gooxi G2DE-B dual-socket motherboard. (2) After installing the motherboard movable stud (8mm high), put the motherboard into the chassis according to the corresponding position, and tighten the screws of the motherboard at the screw hole of the motherboard, as shown in Figure 2.19:...

  • Page 27: Installation Steps Of Gooxi 4104 Riser Card

    2.7 Installation steps of Gooxi 4104 Riser card (1) Take out the Riser bracket and install the Riser card, as shown in Figure 2.20 and 2.21 below: Fig. 2.20 take out the fixing screw and bracket Fig. 2.21 installing Riser card...

  • Page 28: Chapter 3 Chassis Parameter Information

    Chapter 3 Chassis parameter information System System model RMC4104-790-HTF Motherboard EEB(12*13)/CEB(12*10.5) Motherboard Gooxi, Intel, ASUS, SuperMicro, TYAN, MSI, GIGABYTE, etc brand support Power type 3+1 redundant power supply (1200W or 1600W power supply module) Number of PSU SGPIO Support Backplane...
