10/100 straight-through pinouts

If the crossover function is implemented internally, the port is labeled MDI-X (Medium
Dependent Interface-Crossover). When an MDI-X port is connected to an MDI port, the
twisted pair media should be wired straight-through using the physical pinouts indicated in
Table C-2.
Table C-2: 10/100 Pinouts using internal, straight-through crossover
Pin
1
2
3
4
5
6
7
8
Figure C-1 shows the straight-through 10/100 connector wiring to be used when the crossover
function is implemented on the hub or switch.

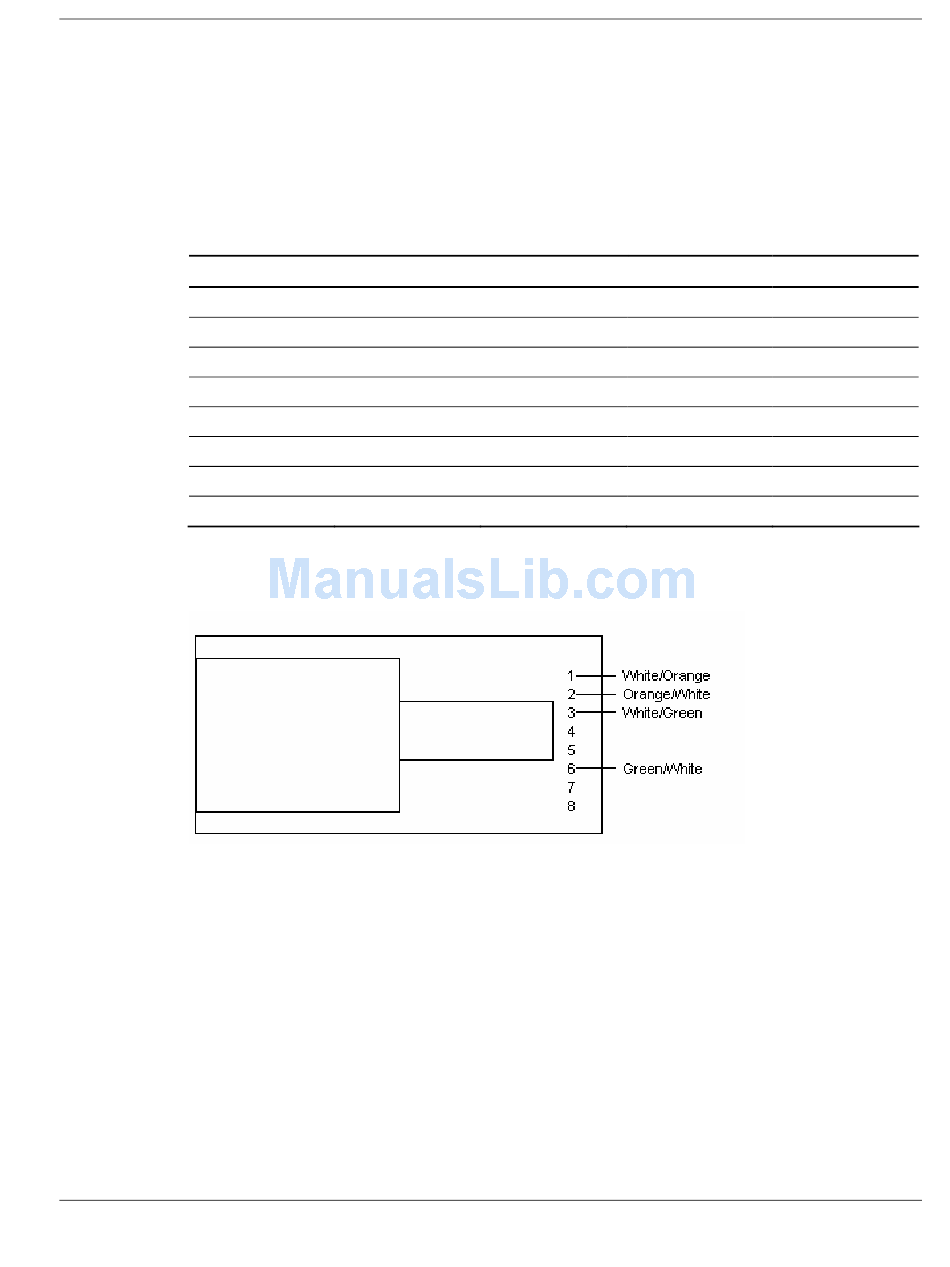

Figure C-1: 10/100 straight-through wiring for RJ-45 connector
HP NC370T PCI-X Multifunction Gigabit Server Adapter User Guide
Function Color match
TD+ White/Orange
TD- Orange/White
RD+ White/Green
Blue/White
White/Blue
RD- Green/White
White/Brown
Brown/White
Function Pin
TD+ 1
TD- 2
RD+ 3
4
5
RD- 6
7
8
