Introduction

LED indicators

The NC370T PCI-X Multifunction Gigabit Server Adapter has one auto-negotiating
10/100/1000 RJ-45 port. LED indicators show link, activity, and port speed.

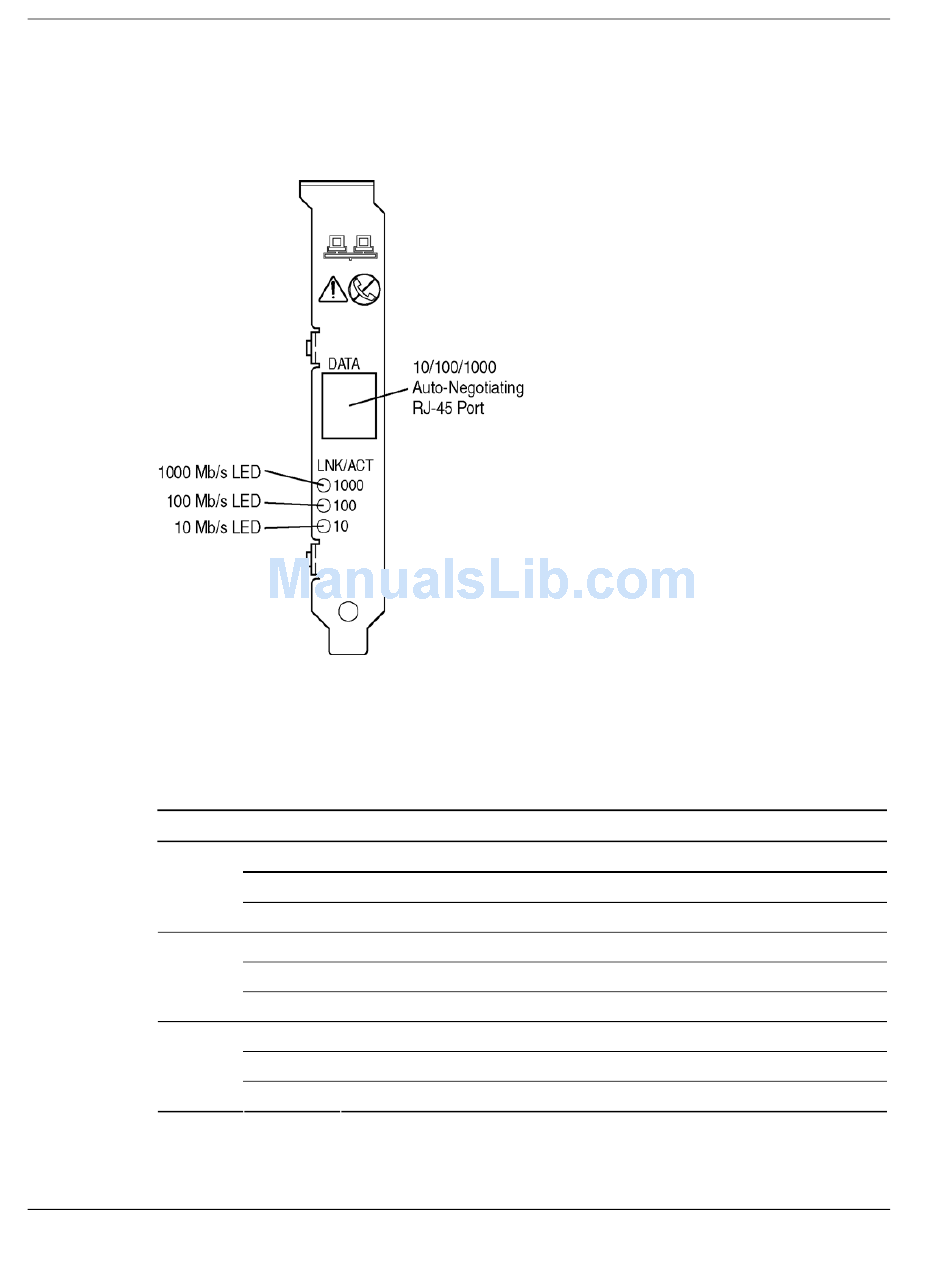

Figure 1-1: RJ-45 port and LED locations
The NC370T PCI-X Multifunction Gigabit Server Adapter LED indicators operate as
described in the following table.
Table 1-1: 10/100/1000 LED Operations for the NC370T Server Adapter
LED
1000
100
10
1-2
Display Description
Off No 1000 Mb/s link is available.
On Link to the network is established at 1000 Mb/s.
Flashing Link to the network is established at 1000 Mb/s with activity.
Off No 100 Mb/s link is available.
On Link to the network is established at 100 Mb/s.
Flashing Link to the network is established at 100 Mb/s with activity.
Off No 10 Mb/s link is available.
On Link to the network is established at 10 Mb/s.
Flashing Link to the network is established at 10 Mb/s with activity.
