QuickSpecs
Overview
The HP NC364m is a HP BladeSystem c-Class network adapter providing four Gigabit Ethernet ports on a single card saving
valuable server mezzanine slots for other purposes. The x4 PCI Express NC364m is supported on both Integrity and ProLiant c-Class
servers in all mezzanine slots. For Integrity c-Class servers, it is the first network adapter mezzanine option available providing up to
16 Gigabit Ethernet ports per BL860c and BL870c server. For ProLiant c-Class servers, the NC364m is the second quad-port
adapter option for c-Class allowing ProLiant customers a choice of an adapter that uses either an Intel or Broadcom controller. With
the NC364m, up to 128 Gigabit Ethernet ports per c7000 enclosure and 64 per c3000 enclosure are possible.
The four ports provide the highest port density available for BladeSystem servers in a single adapter. The NC364m is ideal for
virtualization, security, server consolidation, network segmentation, and other server applications requiring maximum throughput
and port density. The total aggregate throughput of 8Gbps full duplex also meets the needs for customers desiring high bandwidth
but are not yet ready to move to 10 Gigabit Ethernet.
At A Glance
At A Glance
At A Glance
At A Glance
Four Gigabit Ethernet ports
Supported on ProLiant and Integrity servers in all c-class enclosures, all server mezzanine slots; multiple cards per server.
Dual Intel 82571EB controllers
Designed with server needs in mind:
IEEE 802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x
ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames
TCP/IP checksum offload (TCO) and large send offload (LSO)
Interrupt coalescence
Dual address cycles (DAC)
PXE (when using Virtual Connect modules only)
IPv6 packet transmit and receive (excluding all offload capabilities); IPv6 aware SNMPv1 agent for Windows

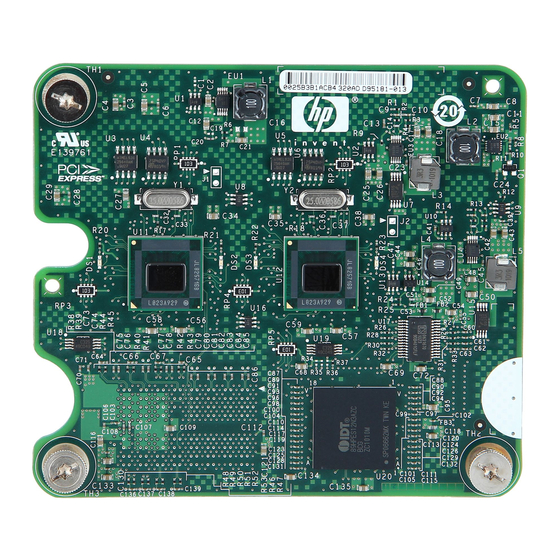

HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
DA - 12798
Worldwide — Version 5 — July 18, 2008
HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
HP NC364m Quad Port 1GbE BL-c Adapter
Page 1

Advertisement

loading

Related Manuals for HP NC364m

Summary of Contents for HP NC364m

  • Page 1 NC364m, up to 128 Gigabit Ethernet ports per c7000 enclosure and 64 per c3000 enclosure are possible. The four ports provide the highest port density available for BladeSystem servers in a single adapter. The NC364m is ideal for virtualization, security, server consolidation, network segmentation, and other server applications requiring maximum throughput and port density.
  • Page 2: Standard Features

    QuickSpecs HP NC364m Quad Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter Overview Models Models Models Models HP NC364m Quad Port 1GbE BL-c Adapter...
  • Page 3 The NC364m support for 9K jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six times the size of standard 1500 byte Ethernet frame. The NC364m supports jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.
  • Page 4: High Availability

    HP NC364m Quad Port 1GbE BL-c Adapter High Availability Quad port Quad port Quad port Quad port The four ports on the NC364m are transmitted to up to four separate enclosure interconnect bays providing redundant signal paths. Redundant adapters Redundant adapters Redundant adapters Redundant adapters...
  • Page 5: Mezzanine Slot Compatibility

    For purchase of the Interconnect Modules referenced above; please see the related options section of this QuickSpecs. If the NC364m is installed in mezzanine slot 1 (M1) of the listed half-height servers, connectivity will be provided on only two of the four ports.
  • Page 6: Service And Support, Hp Care Pack, And Warranty Information

    Support Services Support Services To fully capitalize on the capabilities of your HP BladeSystem a server, a service partner is required who thoroughly understands your server technology and systems environment. HP Services, an industry leader in the provisioning of multi vender support solutions, provides a range of support services designed to meet the varying needs of today's businesses.
  • Page 7: Related Options

    Cisco Catalyst Blade Switch 3120G for HP 451438-B21 Cisco Catalyst Blade Switch 3120X for HP 451439-B21 HP GbE2c Layer 2/3 Ethernet Blade Switch for c-Class BladeSystem 438030-B21 HP GbE2c Ethernet Blade Switch for c-Class BladeSystem 410917-B21 Ethernet Pass-Through Module for HP BladeSystem...
  • Page 8: Technical Specifications

    Multiple cards per server. NOTE: NOTE: NOTE: NOTE: If the NC364m is installed in mezzanine slot 1 of a half-height server (excluding the BL260c G5), connectivity will be provided on only 2 of the 4 ports. IEEE Compliance...
  • Page 9 Windows is a US registered trademark of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
