Summary of Contents for Rae ToxiRAE II PGM-1100 Series
-

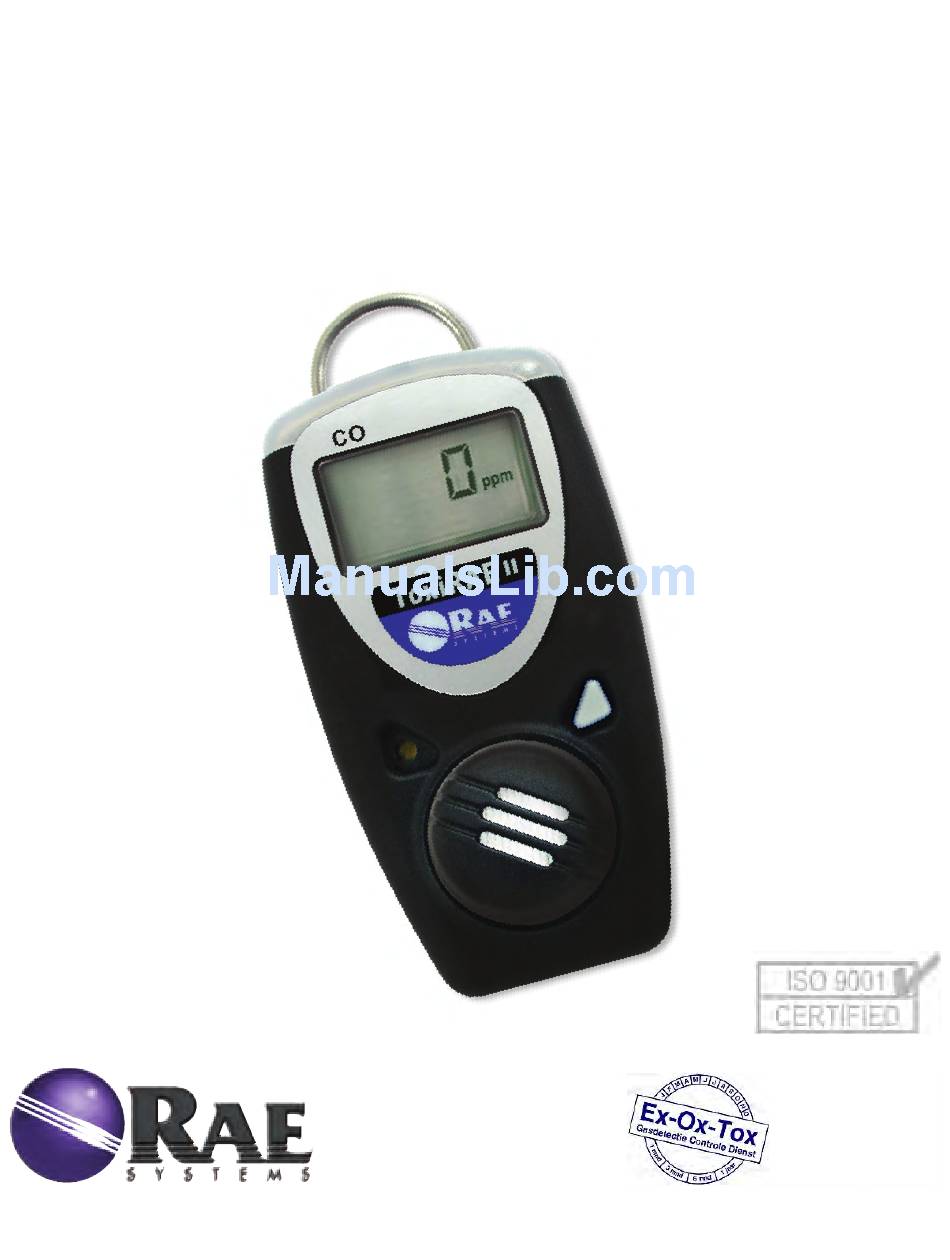

Page 1: User Manual

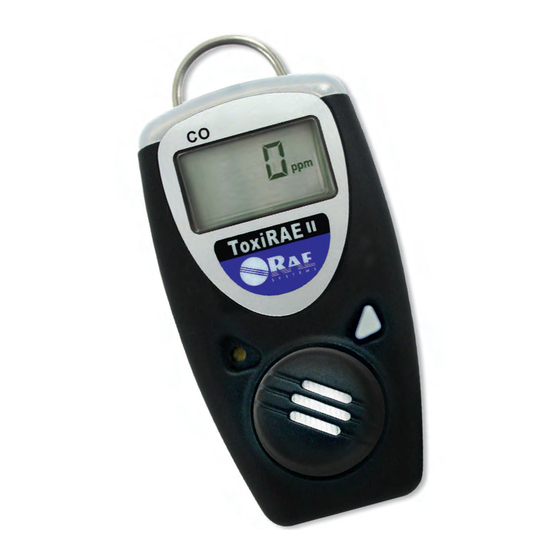

ToxiRAE II PGM-1100 Series Personal Toxic Gas Monitor Ex-Ox-Tox Gasdetectie Westerdreef 5V User Manual 2152 CS Nieuw-Vennep Telefoon: 0252 620885 E-mail: info@exoxtox.nl Website: www.exoxtox.nl 045-4003-001, Rev A December 2012... - Page 2 Remove monitor cover and sensor module only in an area known to be non-hazardous. Sensors are not interchangeable; use only RAE Systems sensors, and use only the sensor type specified for your ToxiRAE II monitor. Use only RAE Systems batteries. Use of non-RAE Systems components will void the warranty and can compromise the safe performance of this product.
-
Page 3: Table Of Contents
Table of Contents Standard Contents ..... . 1 Calibration Kit . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General Information . - Page 4 Proper Product Disposal At End Of Life The Waste Electrical and Electronic Equipment (WEEE) directive (2002/96/EC) is intended to promote recycling of electrical and electronic equipment and their components at end of life . This symbol (crossed-out wheeled bin) indicates separate collection of waste electrical and electronic equipment in the EU countries .
-
Page 5: Standard Contents
Standard Contents ToxiRAE II monitor with sensor as specified High-capacity Lithium battery installed Gas adapter Alligator clip Stainless steel belt clip / hardhat adapter Operation instructions Calibration Kit Test gas (for sensor as specified) Gas regulator with flow controller Hard transport case... -
Page 6: General Information
General Information The ToxiRAE II single-gas monitor continuously displays toxic gas concentrations . The ToxiRAE II is a full-featured gas monitor providing continuous, digital display of the selected toxic gas concentration, STEL, TWA and Peak values, as well as high, low, TWA and STEL alarms . -
Page 7: Physical Description
Physical Description 1 Bright red LED Alarm 2 Display 3 Audio Alarm 4 Gas Inlet 5 Button 6 Alligator Clip... -
Page 8: Display Features
Display Features 1 Zero Calibration 2 Low Battery Indicator 3 Short Term Exposure Limit (STEL) 4 Time Weighted Average (TWA) 5 Low Alarm 6,7 High Alarm 8 Parts Per Million (ppm) 9,10 Span Calibration 11 Gas Concentration... -
Page 9: Operating The Toxirae Ii
Operating the ToxiRAE II Turning the Monitor ON Make sure the Lithium battery is installed . Hold the button down and release when the display says “on .” The monitor is now on . The monitor performs a self-test preceding the warm-up and zero calibration . -
Page 10: Short Term Exposure Limit (Stel)
Short Term Exposure Limit (STEL) The STEL is the average reading of the gas concentration for the last 15 minutes . NOTE: The STEL reading does not appear until 15 minutes have elapsed . Time Weighted Average (TWA) The TWA is the accumulated reading of the gas concentration since the monitor was turned on, divided by 8 hours . -
Page 11: Program Mode
Program Mode Use the Program Mode to perform any of the following actions (listed in order of appearance): Calibration Changing Preset Limits or Span Gas Values Entering Program Mode (Firmware Version 1.4, sensors for HCN, Cl NO, NO , SO or NH ):The instrument must first be turned on . -
Page 12: Calibration
. • Calibration intervals and bump test procedures may vary due to national legislation . • RAE Systems recommends using RAE calibration gas . • Any rapid up-scale reading followed by a declining or erratic reading may indicate a gas concentration beyond the upper scale limit, which may be hazardous . -
Page 13: Zero Calibration
You will see the “CAL” (calibration) and “go” messages switch back and forth on the screen . To advance or skip to the next submenu, press the button once . Zero Calibration (Firmware version 1.7 Only) Note: Zero calibration is performed auto– matically at startup with firmware version 1.4. -
Page 14: Span Calibration
Span Gas Calibration To perform span gas calibration, press and hold the button . Release when “go” displays continuously without flashing on and off. The “gAS” and span gas preset value switches back and forth on the screen . During these 10 seconds, connect the span gas to the monitor . - Page 15 To interrupt and exit span calibration during the countdown, press the button and “no” appears on the screen . Press the button again to confirm and advance to the next submenu . span gas cylinder regulator calibration adapter Tygon tubing...
-
Page 16: Changing Preset Limits Or Span Gas Values
Changing Preset Limits or Span Gas Values High Alarm Low Alarm STEL SPAN Cycle through the submenus by pressing the Example: button once after each; stop at appropriate screen . Changing the High Alarm preset (With Firmware version 1 .4, the monitor returns to the Monitor Mode after the span gas value .) You will see “SEt”... -
Page 17: Maintenance
To exit Program Mode (Firmware version 1.7): Press the button until “Pro” and “End” appear . Hold the button down for 5 seconds and release . The ToxiRAE II is now in Monitor Mode . Maintenance Follow these instructions carefully and calibrate and test your monitor according to this User Manual’s instructions before placing it in service again . - Page 18 Step 4. Install a Lithium battery (Voltage: 3 .6V, Capacity: 1 .65AH, Size: 2/3AA, P/N: 500-0076-100) . Important! Use only RAE Systems batteries. Use of non-RAE Systems components will void the warranty and can compromise the safe performance of this product.
-
Page 19: Changing The Filter (All Versions)
Replacing the Filter (All Versions) The ToxiRAE II has a removable sensor cover that allows you to change the sensor filter. Replace the filter (P/N: 045-2054-000) when it appears dirty or when the sensor is replaced . To remove the sensor cap, use the calibration adapter to turn the sensor cap one quarter-turn counterclockwise . -
Page 20: Changing The Sensor (All Non-U .S . Versions)
(P/N: 045-2054-000) when it appears dirty or when the sensor is replaced . (See Table A for sensor part numbers.) Sensors are not interchangeable. Use only RAE Systems sensors, and use only the sensor type specified for your ToxiRAE II monitor. -
Page 21: Specifications
• IECEx Ex ia IICT4 Temperature -40° to 131° F (-40° to 55° C) for O2, CO, and H2S. For specific temperature ranges for other sensors, please reference RAE Systems Technical Note TN-114 . Humidity 0-95% relative humidity (non-condensing) Attachments Wrist strap, stainless-steel alligator clip (installed), stainless-steel belt clip/... -
Page 22: Table A: Sensor Configuration
Sensors are not interchangeable. Use only RAE Systems sensors, and use only the sensor type specified for your ToxiRAE II monitor. Use only RAE Systems batteries. Use of non-RAE Systems components will void the warranty and can compromise the safe performance of this product. -
Page 23: Table B: Alarm Signals (H S)
Table B: Alarm Signals (H Alarm Type Display Cause Buzzer & Vibration Alarm Over Range Reading > 3 beeps/sec once every maximum range second High Reading > High 3 beeps/sec once every Alarm Limit second Reading > Low 2 beeps/sec once every Alarm Limit second... - Page 24 Ex-Ox-Tox Gasdetectie Westerdreef 5V 2152 CS Nieuw-Vennep Telefoon: 0252 620885 E-mail: info@exoxtox.nl Website: www.exoxtox.nl...
