IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
SAVE THESE INSTRUCTIONS
SAFETY NOTICE: If this stove is not properly
installed, a house re may result. For your
safety, follow the installation instructions.
Contact local building or re of cials about
restrictions and installation inspection
requirements in your area.
TESTED and LISTED to CAN/ULC S627
AND UL 1482
Meets the Environmental Protection Agency's
2020 Crib wood Particulate Emission
Standards
Visit www. truenorthstoves.com for the most up-to-date version of this manual
080617-28
SERIAL #
INSTALLATION
AND OPERATING
INSTRUCTIONS

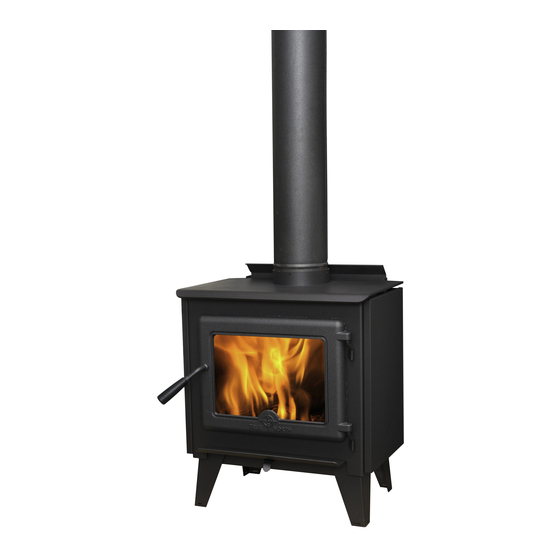

MODEL: TN10
TN10-NA
5055.549-A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for True North TN10
Summary of Contents for True North TN10
- Page 1 TESTED and LISTED to CAN/ULC S627 AND UL 1482 MODEL: TN10 Meets the Environmental Protection Agency's 2020 Crib wood Particulate Emission Standards Visit www. truenorthstoves.com for the most up-to-date version of this manual...
-
Page 2: Table Of Contents
TOUCH GLASS. PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the True North, TN10 Freestanding wood heater. This heater meets the 2020 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 13,100 to 17,600 Btu/hr. -
Page 3: Speci Cations
Remember the correct air inlet control setting is affected by variables such as type of wood, outside temperature, chimney size and weather conditions. With practice, you will become pro cient in operating your heater and will obtain the performance for which it was designed. TN10 NA 080617-28 5055.549-A... -
Page 4: Safety And Maintenance
4. DOOR GASKETS - The gasket used for the True North (5/8"(16mm) medium density berglass rope) requires only light pressure to seal. This will prolong seal life. It is important that the door seal be main- tained in good condition. -
Page 5: Maintenance Checks
Blower: • The blower should be cleaned out a minimum every six months by using a vacuum on the grill openings in the back and bottom of the blower casing to remove any dust and debris. TN10 NA 080617-28 5055.549-A... -
Page 6: Chimney Smoke And Creosote Formation
Chimney res are easy to detect; they usually involve one or more of the following: • Flames and sparks shooting out of the top of the chimney • A roaring sound • Vibration of the chimney TN10 NA 080617-28 5055.549-A... -
Page 7: To Avoid A Chimney Fire
Also check combustibles around the chimney and the roof. The services of a competent or certi ed installer, (certi ed by the Wood Energy Technical Training program (WETT) - in Canada, National Fireplace Institute (NFI) - in U.S.A., are strongly recommended. TN10 NA 080617-28 5055.549-A... -
Page 8: Operation
Your True North heater is designed for maximum overall ef ciency at a moderate ring rate. Over ring is hazardous, a waste of fuel and will damage your stove. Too slow a burn may contribute to creosote buildup and lowers combustion ef ciency. -
Page 9: How To Test Your Wood
4. Do not load fuel to a height or in such a manner that would be hazardous when opening the door. 5. For extended or overnight burns, unsplit logs are preferred. Remember to char the wood completely on maximum setting before adjusting air control for overnight burn. TN10 NA 080617-28 5055.549-A... -
Page 10: Restarting After Extended Or Overnight Burns
With practice, you will become pro cient in operating your heater and will obtain the performance for which it was designed. TN10 NA 080617-28 5055.549-A... -
Page 11: Stove Dimensions
[654mm] 24” [610mm] [with Optional Blower] Figure 1: TN10 Dimensions. Residential Installation Warning: Under no circumstances is this heater to be installed in a makeshift or "temporary" manner. It may be fired only after the following conditions have been met. -
Page 12: Residential Clearances
286mm 155mm 3" 13 1/4" 76mm 337mm 8" 8" 8" 205mm 205mm 205mm 18 5/8" 475mm 18 5/8" 475mm 3" 76mm Alcove: Min. Height 5' / 1.525m Max. Depth 3' / 915mm Figure 2: TN10 clearances. TN10 NA 080617-28 5055.549-A... -
Page 13: Ember Protection
Ember protector 8" [203mm] 18" [457mm] 16" [406mm] Figure 3: TN10 - CAN Floor protector. Figure 4: TN10 - US Floor protector. Securing Bracket Installation: These will be needed to anchor the stove in a mobile home installation and are recommended... -
Page 14: Double-Wall Connector
• Install the remaining lengths of pipe, one on top of the other to the nished height of the listed insulated chimney adapter and secure to each other. A slip-section will make attaching the smoke pipe to the chimney system adapter easier. TN10 NA 080617-28 5055.549-A... - Page 15 * 3” (76 mm) diameter air inlet rodent screen. with rodent screen. * If the crawl space is well ventilated it is not necessary to extend air inlet to outside. Figure 6: TN10 residential venting con guration. TN10 NA 080617-28 5055.549-A...
- Page 16 * 3"(76mm) diameter air inlet with rodent screen Hooded vent or 90° * If the crawl space is well ventilated it is not necessary elbow turned down. to extend air inlet to outside Figure 7: TN10 Venting to a masonry chimney. TN10 NA 080617-28 5055.549-A...
-
Page 17: Through Wall Installations
Supports shall be securely fastened to wall surfaces on all sides. Fasteners between supports and the chimney length shall not penetrate the chimney liner. Minimum Clearance 9 in. (229mm) TN10 NA 080617-28 5055.549-A... - Page 18 Supports shall be securely fastened to wall surfaces on all sides and shall be sized to t and hold chimney section. Fasteners used to secure chimney section shall not penetrate chimney ue liner. Minimum Clearance: 2 in. (51mm) TN10 NA 080617-28 5055.549-A...
-
Page 19: Mobile Home Installation
3" 18 5/8" 76mm 473mm Figure 8: TN10 Mobile home clearances. Installation Minimum chimney height from top of unit is 12' (3.66 m) or as per chimney manufacturers roof clearances whichever is greater. NOTE: Longer chimney lengths and different pitch ashings may be used. Install all components to the connector or chimney manufacturer's installation requirements. -
Page 20: Combustion Air
In addition to the obvious hazard of sparks landing on combustibles, an open re door will cause the heater to draw air from the living space and possibly cause suffocation in an air tight home. TN10 NA 080617-28 5055.549-A... -
Page 21: Baf E Board / Tube Installation
6. Slide the baf e board halves together and then separate slightly to ensure there are no gaps on either side of the baf e board. 7. Push baf e board tight against the rear of the rebox. TN10 NA 080617-28 5055.549-A... -
Page 22: Optional Blower
• Except on "High" setting, wait 30 minutes before turning on blower to desired setting. ELECTRICAL RATING 115V, 60Hz, 0.5A SPEED CONTROL BLOWER POWER CORD Figure 9: Blower Wiring Diagram. Figure 10: Remove the cover plate. Figure 11: Installing the blower. TN10 NA 080617-28 5055.549-A... -
Page 23: Firebrick Installation
• Next install 3 rebricks on the bottom of the unit. Place them to the rear of the rebox. • Finally place 3 rebricks at the back of the heater, by inserting the bricks under the rear retainer TN10 NA 080617-28 5055.549-A... -
Page 24: Troubleshooting
- Check outside air supply for obstruction blocked - Check that room air cover is removed 2. Draft too low - Chimney plugged or restricted, inspect and clean - Chimney oversized or otherwise unsuitable, consult Dealer TN10 NA 080617-28 5055.549-A... -
Page 25: Replacement Parts
Door Gasket ................TN19.DGKIT Replacement Glass (c/w gasket) ..........TRNO.7025 Glass Clamps (4 pcs.) ..............TRNO.7608 Firebrick Set 9” x 4 1/2” x 1 1/4” (10 pcs.) ........TN10.BRIC Quadrant Assembly ..............TN10.RP748517 Secondary Air Chamber, Left side ........TN10.RP748515 Secondary Air Chamber Right side ........TN10.RP748514 Flame Shield ...............TN10.RP7485511... -
Page 26: Rating Label
Rating Label Rating label location The Rating label is located on the lower portion of the rear cover. COTE SIDE TN10 NA 080617-28 5055.549-A... - Page 27 TN10 NA 080617-28 5055.549-A...
- Page 28 © 2017 Copyright Paci c Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer Web site: www. truenorthstoves.com 2975 Allenby Rd., Duncan, BC V9l 6V8...
