IMPORTANT:
KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE.

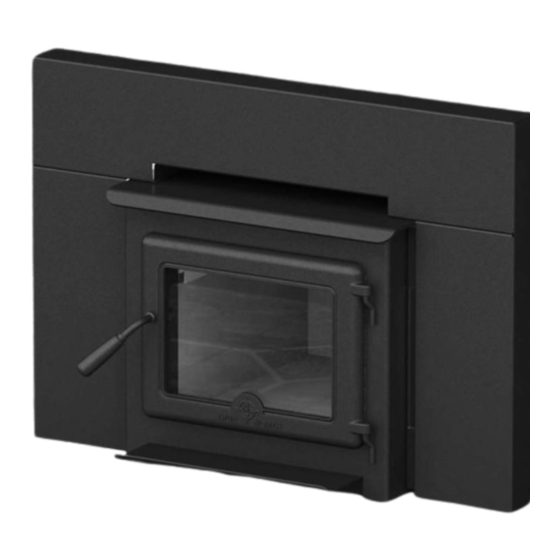

TN 20 Insert
INSTALLATION AND OPERATING INSTRUCTIONS
- AUSTRALIA
SERIAL #
SAFETY NOTICE
If this stove is not properly installed, a house fire may result. For your safety,
follow the installation instructions. Contact local building or fire officials
about restrictions and installation inspection requirements in your area.
MODEL: TN 20 Insert
131216-24
TN20 INS - AUSTRALIA
5055.553.AS
Advertisement
Table of Contents
Related Manuals for True North TN 20
Summary of Contents for True North TN 20
-
Page 1: Installation And Operating Instructions
If this stove is not properly installed, a house fire may result. For your safety, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. MODEL: TN 20 Insert 131216-24 TN20 INS - AUSTRALIA... -
Page 2: Table Of Contents
Replacement Parts requirements in your Compliance Plate area. Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. TN 20 INS.AS 5055.553AS_131216-20... -
Page 3: Safety And Maintenance
Periodically inspect seals and replace if necessary. Follow instructions included in the door gasket kit (TN19.DGKIT ) obtainable from your nearest True North dealer. DOOR GLASS - Do not slam loading door or otherwise impact glass. When closing door, make sure that no logs protrude to impact the glass. -
Page 4: Maintenance Checks
Add a large piece of wood to the stove when it has a good, large bed of coals. It is dry if it is burning on more than one side within one minute. It is damp if it turns black and lights within three minutes. If it sizzles, hisses and blackens without igniting in five minutes it is soaked and should not be burnt. TN 20 INS.AS 5055.553AS_131216-20... -
Page 5: Formation And Need For Removal
4. After the chimney fire is out, the chimney must be cleaned and checked for stress and cracking before starting another fire. Also check combustibles around chimney and the roof. This should be done by a certified inspector/chimney sweep. TN 20 INS.AS 5055.553AS_131216-20... -
Page 6: Lighting For The First Time
Remember, the air inlet setting is affected by variables such as type of wood, outside heater and chimney. temperature, chimney size and weather conditions. With practice, you will become proficient in operating your heater and will obtain the performance for which it was designed. TN 20 INS.AS 5055.553AS_131216-20... -
Page 7: Restarting After Overnight Burn
To turn OFF, push the switch to the middle position. For your protection against shock hazard, use only a properly grounded outlet that will accept a grounded plug. TN20.AS fan switch location. Figure 1. TN 20 INS.AS 5055.553AS_131216-20... -
Page 8: Dimensions
MINIMUM FIREPLACE OPENING AND HEARTH DIMENSIONS MINIMUM FLOOR PROTECTION UNDER THE APPLIANCE MUST BE 720MM DEEP X 545MM WIDE X 110MM THICK (CLAY BRICKS). 575mm 515mm 465mm 720mm 765mm 110mm Clay brick TN20 AS INS Fireplace specs. Figure 3. TN 20 INS.AS 5055.553AS_131216-20... -
Page 9: Minimum Clearances
For your protection against shock hazard, use only a properly grounded outlet that will accept a three-pronged plug. Do not cut or remove the grounding prong. All electrical connections to and within an appliance shall be in accordance with the requirements of AS/NZS 3000, AS/NZS 3100 or ER 93 and the regulatory authority as appropriate. TN 20 INS.AS 5055.553AS_131216-20... -
Page 10: Masonry Fireplace Installation
Code. The Insert must be installed in accordance with local codes, and or AS/NZS 2918:2001 TN 20 INS.AS 5055.553AS_131216-20... -
Page 11: Flue Liner
7) Attach a rain cap to the end of the liner. A storm collar may be used if desired. Rain Cap Storm Collar and Base Plate or Top Flashing Stainless Steel Flex Liner Damper held open or removed Full liner TRNO. Figure 5. TN 20 INS.AS 5055.553AS_131216-20... -
Page 12: Chimney
300 cm of flue top Any nearby structure more than 300 cm 300 cm or less 60 cm min 300 cm increase from 100 cm min.until clear within 300 cm of flue top Chimney and connector Figure 6. TN 20 INS.AS 5055.553AS_131216-20... -
Page 13: Combustion Air
6) Push the entire appliance back until the surround assembly is in contact with the fireplace structure. Part B Part C TRNO20 SURROUND ASSEMBLY. Figure 9. Surround removal. Figure 10. TN 20 INS.AS 5055.553AS_131216-20... -
Page 14: Firebrick Installation
4. Finally install the last 4 firebricks by inserting the side brick under the retaining flange and then the bottom brick under the side brick and lay it down REAR FRONT TN20 Firebricks. Figure 11. TN 20 INS.AS 5055.553AS_131216-20... -
Page 15: Ash Removal
Remove the four screws securing the blower cover to the blower bracket. Remove the three nuts securing the blower to the mounting bracket and replace the blower. Reverse all previous steps to re-install the new blower. TN20.INSA.fan removal Figure 12. TN 20 INS.AS 5055.553AS_131216-20... -
Page 16: Removal
Repeat steps #3 & #4 with the remaining baffle tube. 6. Slide the baffle board halves together and then separate slightly to ensure there are no gaps on either side of the baffle board. Push baffle board tight against the rear of the firebox. TN 20 INS.AS 5055.553AS_131216-20... -
Page 17: Troubleshooting
1. Combustion air supply blocked • Check outside air supply for obstruction 2. Draft too low • Chimney plugged or restricted, -inspect and clean • Chimney oversized or otherwise unsuitable, -consult Dealer Blower Controller TN20 INSA Wiring dia. Figure 13. TN 20 INS.AS 5055.553AS_131216-20... -
Page 18: Replacement Parts
Glass Clamps (4 pc.) TRNO.7608 Firebrick Set 9"x4 1/2"x1 1/4"(20pcs.) TRNO.BRIC Rear Brick Rail(c/w 2 screws) TN20.7625 Quadrant Assembly TN20.7475.25 TN20.INSBLOWA Trimmable O/S Surround add-on TN20.7482 Flame shield TRNO.7610 TN20 AS Insert Exploded Parts. Figure 14. TN 20 INS.AS 5055.553AS_131216-20... -
Page 19: Compliance Plate
Distributed by: PIVOT STOVES AND HEATING CO 234-238 MOORABOOL STREET, GEELONG, VIC 3220 pivotstove.com.au 13/12/16 5050.86AS 5050.852AS TN 20 INS AUS Rating Label-131216. Figure 15. The certification label is located on the left side casing of the insert. TN 20 INS.AS 5055.553AS_131216-20... - Page 20 © 2017 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. PACIFIC ENERGY FIREPLACE PRODUCTS LTD. Web site: www.pacificenergy.net 2975 Allenby Rd., Duncan, BC V9L 6V8 PRINTED IN CANADA...
