4-3-2 RESET Circuit

Reset signal is signal in order to start-up CPU under Power-on.
Reset circuit uses a reset ASM811REUSF-T(U8). When 3.3Vdc is fallen under 2.7Vdc by Power-off,
reset signal prohibits the system from miss-operating by lowering down to 0V.
ASM811
REUSF-T

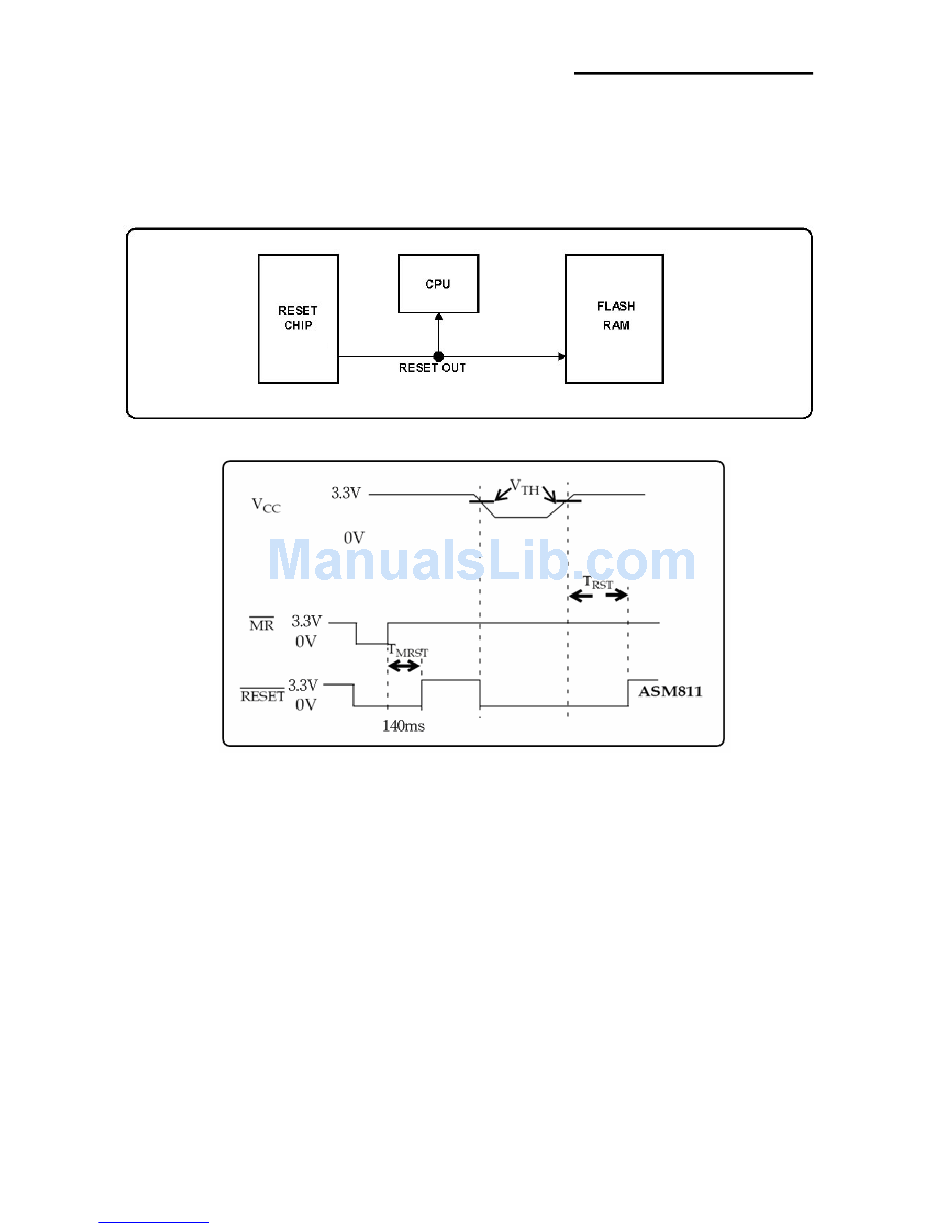

[Figure 4-4 Reset Block Diagram]
[Figure 4-5 Reset Waveform]
