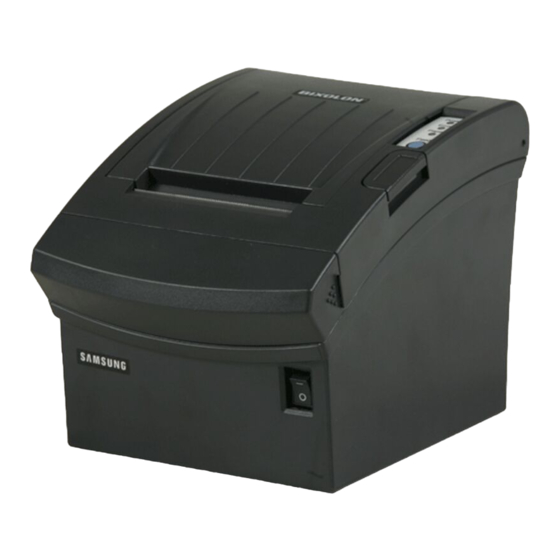

  • Page 1 Windows Driver Manual SRP-350plus Thermal Printer Rev. 2.07 http://www.bixolon.com...
  • Page 2: Table Of Contents

    SRP-350plus ■ Table of Contents 1. Manual Information ......................3 2. Operating System (OS) Environment ................3 3. Windows Driver Preparation ..................3 4. Windows Driver Installation ..................4 4-1 Installing on Windows XP / Server 2003 ..............4 4-1-1 Via Serial Port or Parallel Port ................4 4-1-2 Via USB Port ......................
  • Page 3: Manual Information

    Windows Driver according to PC operating system (OS). We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.
  • Page 4: Windows Driver Installation

    SRP-350plus 4. Windows Driver Installation 4-1 Installing on Windows XP / Server 2003 4-1-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click “Next”. 3) Select a COM port or LPT port to be used and then click “Next”...
  • Page 5 SRP-350plus 4) When the following message box appears, click “Continue Anyway”. 5) Click “Yes” to reboot the PC. Rev. 2.07 - 5 -...
  • Page 6 SRP-350plus 6) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 7) In the “Ports” tab, click “Configure Port…” ※ Pass this step if you are using a parallel port. 8) Match the communication settings to those of the printer. The communication settings of the printer can be performed by conducting a self-test.
  • Page 7 SRP-350plus 9) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 2.07 - 7 -...
  • Page 8: Via Usb Port

    SRP-350plus 4-1-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click “Next”. 3) Select “USB” and then click “Next”. Rev. 2.07 - 8 -...
  • Page 9 SRP-350plus 4) When the following message box appears, click “Continue Anyway”. 5) Click the “OK”. 6) Turn off the printer and then turn it on. Rev. 2.07 - 9 -...
  • Page 10 SRP-350plus 7) When the New Hardware Wizard appears for the installation of the Windows Driver, select the option as shown below and click “Next”. 8) Click “Next”. Rev. 2.07 - 10 -...
  • Page 11 SRP-350plus 9) When the following message box appears, click “Continue Anyway”. 10) Click “Finish”. Rev. 2.07 - 11 -...
  • Page 12 SRP-350plus 11) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 12) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.
  • Page 13: Installing On Windows Vista / Server 2008 / 7 / 8

    SRP-350plus 4-2 Installing on Windows VISTA / Server 2008 / 7 / 8 4-2-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click “Next”. 3) Select a COM port or LPT port to be used and then click “Next”.
  • Page 14 SRP-350plus 4) When the following message box appears, click “Install”. 5) Click “Yes” to reboot the PC. Rev. 2.07 - 14 -...
  • Page 15 SRP-350plus 6) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers. 7) In the “Ports” tab, click “Configure Port…” ※ Pass this step if you are using a parallel port.
  • Page 16 SRP-350plus 9) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally Rev. 2.07 - 16 -...
  • Page 17: Via Usb Port

    SRP-350plus 4-2-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click “Next”. 3) Select “USB” and then click “Next”. Rev. 2.07 - 17 -...
  • Page 18 SRP-350plus 4) When the following message box appears, click “Install”. 5) Click the “OK”. 6) Turn off the printer and then turn it on. The printer driver will be installed automatically. Rev. 2.07 - 18 -...
  • Page 19 SRP-350plus 7) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers. 8) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.
  • Page 20: Windows Driver Settings

    SRP-350plus 5. Windows Driver Settings The following functions can be configured after installing the Windows driver. 5-1 Paper 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” button in the “General” tab. 3) Click “Paper” Tab.
  • Page 21: Paper Size

    SRP-350plus 5-1-1 Paper Size Paper size of 80 x 297 mm is selected by default, and the following sizes can be selected. 80  297 mm 80  3276 mm If a custom paper size is required, click the “…” button to add or update a custom paper size and then, click the “Save”...
  • Page 22: Paper Type

    SRP-350plus 5-1-2 Paper Type You can choose Receipt or Ticket as paper types. Receipt allows flexible paper length according to the data length. Ticket print in fixed length even the print data is short. Default setting is “Receipt”. Receipt Receipt allows flexible paper length according to the data length.
  • Page 23: Document Settings

    SRP-350plus 5-2 Document Settings 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” or “Printing Preferences” button in the “General” tab. 3) Click “Document Settings” Tab. 5-2-1 Send Commands The Windows driver serves to receive the content for print from an application and send it to the printer.
  • Page 24: Cash Drawer

    SRP-350plus 5-2-2 Cash Drawer To open a cash-drawer before printing, tick “Open before printing #1” or “Open before printing #2” in the “Cash Drawer” and then click “OK”. To open a cash-drawer after printing, tick “Open after printing #1” or “Open after printing #2”...
  • Page 25: Windows Driver Specifications

    SRP-350plus 6. Windows Driver Specifications 6-1 Fonts The Windows Driver of the printer supports the fonts listed below. Printing is done at faster speed when using the fonts below as opposed to the Windows fonts of the OS. Printer Fonts...
  • Page 26: Special Functions

    SRP-350plus 6-2 Special Functions This Windows driver supports the special functions as shown in the following table. Select the “FontControl” font first and use the characters in the table to use the special functions. Take care as this function is not for printing general texts.
  • Page 27 SRP-350plus Character Special Function Prints 1 NV bit image in double-sized mode. Prints 2 NV bit image in double-sized mode. Prints 3 NV bit image in double-sized mode. Prints 4 NV bit image in double-sized mode. Prints 5 NV bit image in double-sized mode.
  • Page 28: Barcodes

    SRP-350plus 6-3 Barcodes The Windows Driver supports the barcodes indicated below. This function is available when entering barcode data after selecting “Printer Font Name”. In addition, the “FontControl” font can be used to add HRI characters. Printer Font Name Size (Point)
  • Page 29: Use Of Windows Driver

    This section contains example codes to control the printer using Windows driver with Visual Basic. Sample codes contained in the CD. 7-1-1 Windows Driver Selection The following code is an example of the selection of the “BIXOLON SRP-350plus” Windows Driver. For Each prnPrinter In Printers If prnPrinter.DeviceName = “BIXOLON SRP-350plus”...
  • Page 30: Barcode Printing

    SRP-350plus 7-1-3 Barcode Printing The following code is an example of the printing of the JAN8 (EAN) barcode. 'Print Bar Code. Printer.FontSize = 20 Printer.FontName = "JAN8 (EAN)" Printer.Print "1234567" Printer.EndDoc 7-1-4 Two-Dimensional Barcode Printing The following code is an example of the printing of the PDF417 two-dimensional barcode.
  • Page 31: Use Of Wordpad

    After running WordPad and setting the following conditions, conduct a test. - Select Printer After selecting “Print” from the “File” menu, select the printer (BIXOLON SRP-350plus). - Select Paper Size, Orientation, and Margins After selecting “Page Setup” from the “File” menu, select the paper size, orientation, and margins.
  • Page 32: Barcode Printing

    SRP-350plus 7-2-3 Barcode Printing Use the Windows Driver of the printer to print the barcode. 1) Select the desired barcode from the Font menu (Code128). 2) Select the desired font size (20). 3) Enter “{A123453” in WordPad. 4) Click the Print button in the toolbar to print.
  • Page 33: Two-Dimensional Barcode Printing

    SRP-350plus 7-2-4 Two-Dimensional Barcode Printing Use the Windows Driver of the printer to print the two-dimensional barcode. 1) Select the desired two-dimensional barcode from the Font menu (PDF417). 2) Select the desired font size (9.5). 3) Enter “Two-dimensional Codes Test: PDF417” in WordPad.
