Page 1: User Manual

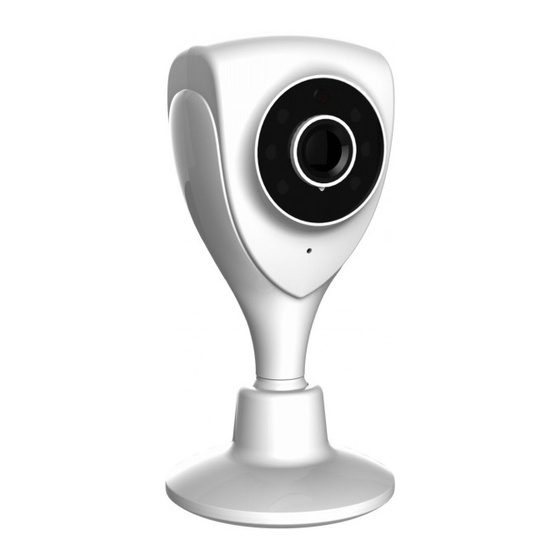

CM1 USER MANUAL Cloud Camera (HD Cloud Camera) User Manual MODEL: CM1 Note: To protect your privacy, please change the initial password after login. Please keep your user name and password safely. -
Page 2: Table Of Contents
CM1 USER MANUAL Contents 1. Introduction ........................1 2. Installation........................1 2.1. Camera installation and Login ................1 2.2. Wireless Installation Considerations ..............4 3. Homepage ........................5 3.2 Camera status ......................9 3.3 Account settings ....................10 3.4 Image settings and PTZ control ................11 3.5 Mode selections .................... -
Page 3: Introduction
CM1 USER MANUAL 1. Introduction Thanks for buying our products. Cloud IP camera has a variety of functions, which dedicates to the office and home solutions. Unlike traditional IP Camera, cloud camera uses P2P technology, plug and play (no need to do port forwarding, DNS, or IP address setting). - Page 4 CM1 USER MANUAL Registeratio Language Download Enter the ID number or registered account Password Login Note: The user can click on the login screen of the "Register" button to register a user account, login to add / manage multiple cameras.
- Page 5 CM1 USER MANUAL Account settings Registered account login page Live view shoot Play Real-time viedo Image playback shortcuts 3: Install the plug-in: Install video plug Note: If the image blurs when you watch, probably run the focal during transportations or human factors of the camera lens, the focal length of the lens...
-
Page 6: Wireless Installation Considerations
CM1 USER MANUAL reference, swing the camera lens back and forth a few times till the image in best performance. 2.2. Wireless Installation Considerations Wireless Camera promises you in the wireless network coverage area to use wireless connection to access the network. However, the wireless signals need to pass through walls, ceilings and other objects, thickness and location of limits Wi-Fi range. -
Page 7: Homepage
CM1 USER MANUAL doorways. Materials and objects such as glass, steel, metal, band insulator, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. 4. Keep your product away from the electronic devices that generate RF noise and appliances at least 3-6 feet or 1-2 meters from the outside position. - Page 8 CM1 USER MANUAL 2. Add Camera ID 1. Add online cameras...
- Page 9 CM1 USER MANUAL 3. Enter Cloud IP Cam password and click add device. 4. Enter Cloud IP Cam password and click revise button.
- Page 10 CM1 USER MANUAL 5. After choosing Wi-Fi, enter the password and click apply. 6. Add IP Cam Successfully. Attention: 1. the 4th step is based on the Cam’s initial password, if the initial password is not “admin”, this step can be cancelled.
-
Page 11: Camera Status
CM1 USER MANUAL 2. The 5th step, after choosing Wi-Fi and enter password, when applying, please check the STATE1 ( ) light flashing status. Before pulling the cable please make sure the STATE1 ( ) flash 3 times for every 3 seconds. -
Page 12: Account Settings
CM1 USER MANUAL : Add or delete online cameras. : Show or hide the status bar. Account settings 1. Set video size: ser can choose the resolution of the images. 2. Password: ser can modify the admin account (The visitors login the account by administrator password can modify the information of the account). -
Page 13: Image Settings And Ptz Control
CM1 USER MANUAL 3.4 Image settings and PTZ control 1. Brightness / Contrast / Saturation / Sharpness: video images can adjust the parameters of the corresponding (Such as the right to adjust these parameters will result in poor image quality display we may not recommend users adjust of these parameters). -
Page 14: Mode Selections
CM1 USER MANUAL 3.5 Mode selections 1. Automatically: Infrared lamp’s on and off is based on the environment around the photosensitive sensor. 2. Daytime: IP camera is switch into daytime mode, infrared lamp is off. 3. Night: IP camera is switch into night mode, infrared lamp is on. - Page 15 CM1 USER MANUAL Snapshot button: Click the button for playing video capture pictures. Voice intercom: Click buttons, camera and computer microphone / speakers are turned on; the two sides’ voices can be heard. 3.7. Playback Micro SD card stores the video files.
- Page 16 CM1 USER MANUAL...
-
Page 17: Information
CM1 USER MANUAL 4. Information Alarm Information Checking 1. Information checking 2. Open the image 3. Save as... -
Page 18: Management
CM1 USER MANUAL Management This section shows the configuration of the IP Cam. 5.1 About Basic information about the camera is displayed. Model: The camera version number. Software Version: Camera current software version number. Plug-in version: watch current video cameras plug-in version number. -
Page 19: Nickname
CM1 USER MANUAL 5.2 Nickname Modify the current camera name. Nickname: User can modify the name of the camera. 5.3 Admin Password... -
Page 20: Guest Password
CM1 USER MANUAL Admin Password: Enter the current login password (default password is admin). New Password: Enter the new admin password. (To protect your privacy, please change the initial password after logging. Please keep the user name and password.) New Password confirmation: Re-enter the current camera modified login password. -
Page 21: Network
CM1 USER MANUAL 5.5 Network NIC: Ethernet (wired) or wireless networks. 1. Ethernet: Effective when connected to a wired network. Start Status: The current Ethernet situation is enable or disable. Mac Address: The current Ethernet Mac address. Automatically obtain an IP address (cameras... - Page 22 CM1 USER MANUAL Obtain DNS Service Address automatically: After clicking, IP Cam will automatically obtain DNS by router. By using DNS server address underneath: After clicking, the camera will manually access with DNS connected to the Cam (user may not need to set it).
- Page 23 CM1 USER MANUAL Note: After setting up WIFI click Applications,, WIFI Choose Surface does Client immediately refresh the page information, user wants to quit "Network", and then enter, you can see no Choose Line connection router status display: After a...
-
Page 24: Osd
CM1 USER MANUAL 5.6 OSD Menu settings... -
Page 25: Sd Card
CM1 USER MANUAL Display text: After tickled, the upper left corner of the screen will display the name of the camera. The user can modify the display name of the camera (Can not have Chinese or symbols, only English and numbers). - Page 26 CM1 USER MANUAL Format: The Micro SD (T-FLASH) card is formatted; the existing micro SD card contents will be cleared. Repair: If "Playback" cannot see video file or view the alarm information, can repair the micro SD card. (Note: The repair function may cause part of the micro...
-
Page 27: Camera Alarm Arming Settings
CM1 USER MANUAL 5.8 Camera alarm arming settings: Adjust the sensitivity Apply I / O Alarm input: When normally open, alarm input port connect with an external alarm sensor (such as door sensor, infrared, smoke alarm detector, etc.) must be a normally open alarm probes. -
Page 28: Scheduled Recording
CM1 USER MANUAL higher, generally we recommend user to choose the default values, the user also can set up sensitivity based on their will. Choose motion I/O on/off Take photo Pre - recorded time Apply Alarm on 5.9 Scheduled recording:... -
Page 29: Date / Time
CM1 USER MANUAL In this option you can choose the 7* 24 hour video or scheduled recording. Note: video files will be stored in SD card, when content is full, it will overridden. 5.10 Date / Time: Time Server address: Users can manually enter in the online search to fill the local country time zone server address (default time server address is China time). -
Page 30: System
CM1 USER MANUAL Date: When “time server automatically" turned off, users can manually modify the cam’s date. Time: When "time server automatically" turned off, users can manually modify the camera’s time. Click “Apply” to save your changes. 5.11 System: Online Upgrade: If you have the latest software, there will be tips <Update> click update, the camera will be online software upgrade, after the upgrade is successful will re-start the Camera. - Page 31 CM1 USER MANUAL Restore the factory settings: The user can click the "Restore" button, will pop up on the right Diagram tips. When the "Save network device" checked, the point is determined, in addition to Network setup parameters retained, the other parameters are restored to the factory settings back;...
-
Page 32: Other
CM1 USER MANUAL 5.12 Other: Audio: Speaker: Set the size of the camera's speaker sound, use the mouse to drag the slider to set, the greater the value, the greater the sound from the speaker. Mac: Sets the camera microphone sensitivity, drag the slider with the mouse... -
Page 33: Troubleshooting
CM1 USER MANUAL 6. Troubleshooting This chapter provides solutions for questions or problems in camera installation and operation. If you encounter problems, please follow solutions below. (Below we take Windows ® Vista ™ and XP as example. Different operation systems have the similar operation.) - Page 34 CM1 USER MANUAL ... Restore your camera to factory settings by press “RESET” key one time on camera bottom ... Disconnect router power supply and connect it again to restart Try again to make your camera work after the above checking.
- Page 35 CM1 USER MANUAL problem still exists, connect your camera with power, and then press “RESET” key on the bottom to restore to factory settings. 4). Why are there vertical white lines in image? CMOS sensor being exposed to strong light (such as direct exposure to sunlight or halogen light) may cause this problem.
- Page 36 CM1 USER MANUAL If you are using Internet Explorer, please make sure ActiveX is on. You may need to modify the browser's security settings to allow ActiveX plug-in installed. If you are using Internet Explorer versions earlier than 7.0, you need to upgrade your Web browser.
- Page 37 CM1 USER MANUAL the same gateway IP address. Ip address has been 1. Confirm the router is good. obtained or the user 2. Camera hardware failure, requiring Red light to configure a static ip repair. flashing 3 address, is trying to...
- Page 38 CM1 USER MANUAL services Wi-Fi for adhoc mode References Cloud Camera Quick (Wi-Fi did not Installation Guide configure the router / router connection failed / DHCP fails to enter this mode), you green can Wi-Fi terminal lights (mobile phone / pad /...
- Page 39 CM1 USER MANUAL gateway 1. The user to check whether the communication network can access the Internet. normal, is trying to 2. Check whether there are two communicate with the routers connected (first level router Green internet network cable will need to receive a...
-
Page 40: Wireless Infrastructure
CM1 USER MANUAL Wireless Infrastructure IP CAMERA wireless products are based on industry standards for your home, business or public access wireless networks to provide easy and compatible high-speed wireless connection. IP CAMERA strictly follows the IEEE standard. Wireless LAN (WLAN) is network that transmits and receives data trough wireless signal not electrical wiring. -
Page 41: Wireless Security
CM1 USER MANUAL Make sure home appliances such as cordless telephones, microwaves, and televisions are far from the router / access point, which helps reduce interface. Safety Prevent your next door neighbors or others connecting to your wireless network. Open WPA or WEP in the router to protect your wireless network. Please refer to the product manual for more information on this feature. - Page 42 CM1 USER MANUAL WEP is Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by data encryption on your wireless network, so that to ensure secure transitions from one wireless device to the other.
- Page 43 CM1 USER MANUAL feature. Based on 802.11i, WPA2 replaces TKIP with Advanced Encryption Standard (AES) instead of TKIP. User authentication through EAP gets missed in WEP.WEP is easily to be sniffed or stolen for it accesses wireless network trough computer MAC address.
-
Page 44: Specifications
CM1 USER MANUAL 9.Specifications... - Page 45 FCC Statement： 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and(2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The distance between user and products should be no less than 20cm The distance between user and products should be no less than 20cm...
- Page 46 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 47 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF Exposure Warning: The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter.
