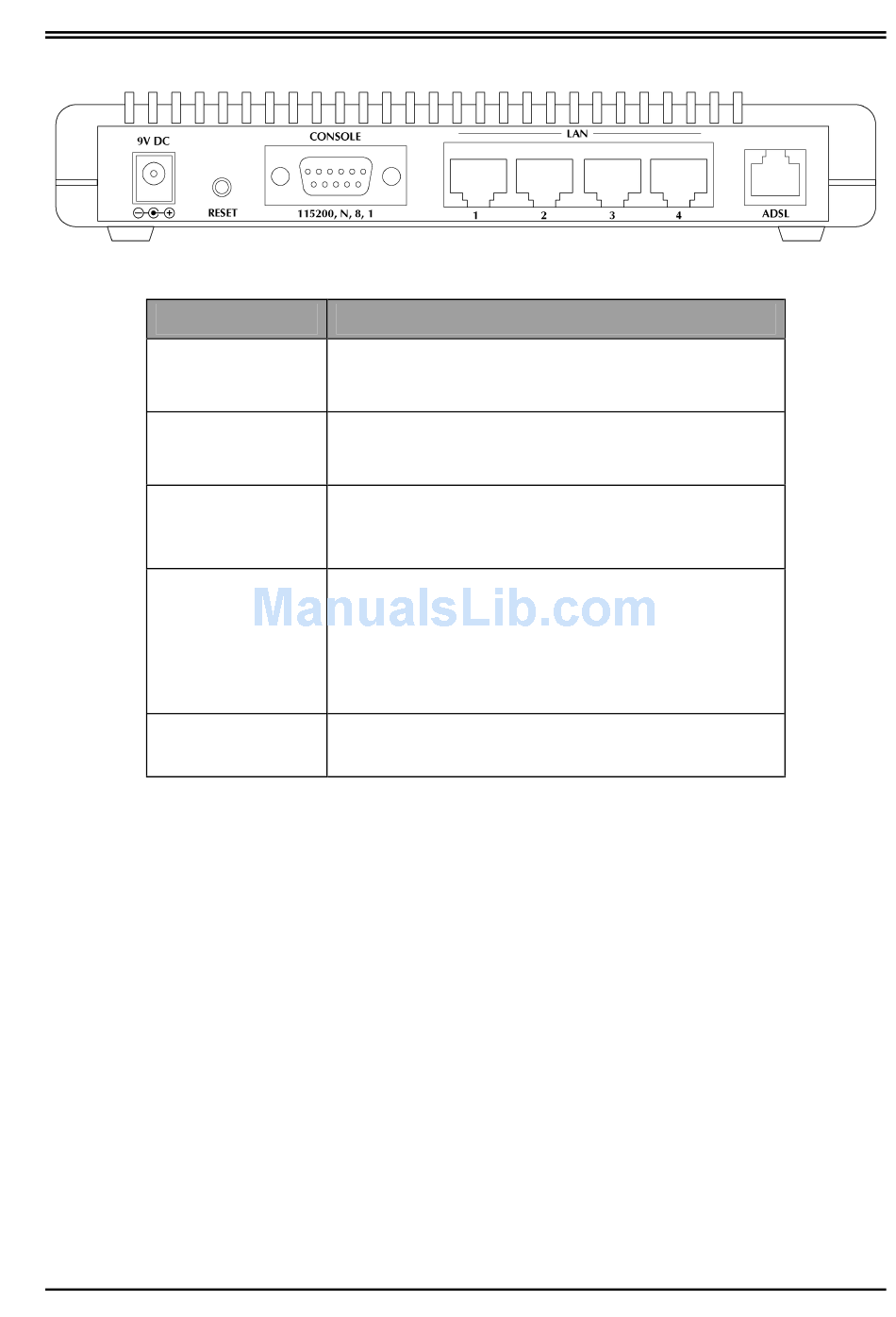

2.3 The Rear Ports

Port
ADSL
CONSOLE
LAN 1 — 4
(RJ-45
connector)
Reset
PWR

2.4 Cabling

The most common problem is bad cabling or ADSL line. Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. As a first check,
verify that the LAN Link and ADSL line LEDs are lit. If they are not, verify that you are
using the proper cables.
ADE-4120
Connect the supplied RJ-11 cable to this port
when connecting to the ADSL/telephone
network.
Connect a RS-232 cable to this port when
connecting to a PC's RS-232 port (9-pin serial
port).
Connect an UTP Ethernet cable to one of the
four LAN ports when connecting to a PC or an
office/home network of 10Mbps or 100Mbps.
After the device is powered on, press it to reset
the device or restore to factory default settings.
The operation is as below:
0-4 seconds: reset the device
5 seconds or above: restore to factory default
settings (this is used when you can not login to
the router, e.g. forgot the password)
Connect the supplied power adapter to this
jack.
