Rear Panel

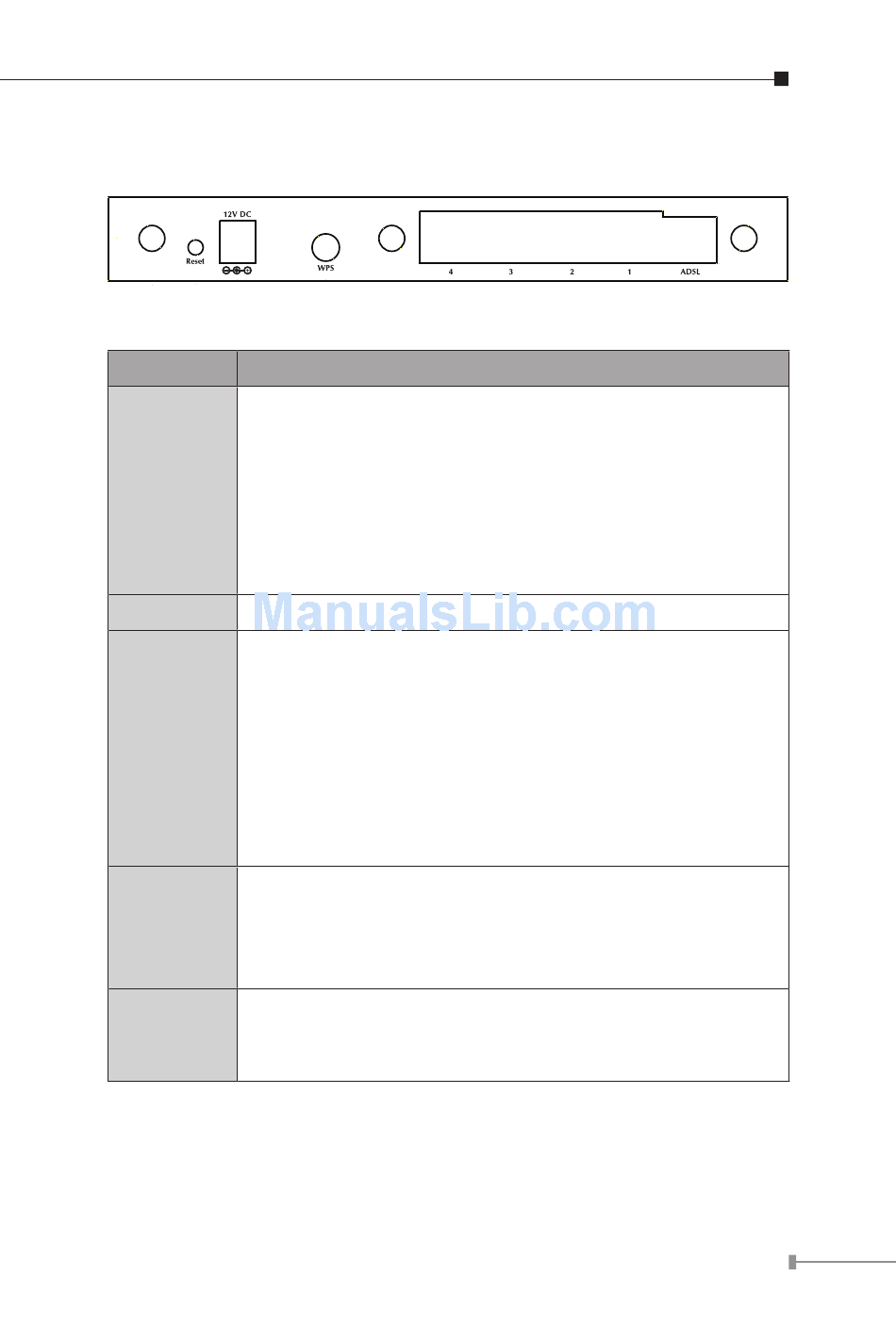

Rear panel Port and Button Definition

Port
● Reboot router: press the reset button for less than 5
seconds, and it will keep your original configurations.
● Load factory default setting: press the reset button
Reset
for longer than 5 seconds and the router will reset
itself to the factory default settings
(Warning! your original configurations will be replaced
with the factory default settings)
Power
Power connector with 12V DC 1A.
Wi-Fi Protected Setup (WPS) is the simplest way to
build connection between wireless network clients and
this ADSL router. Press this button on the router and
enable WPS function of the wireless clients, the router
WPS Button
and clients will automatically configure the security key
and connect directly. Please note that the router will
wait for WPS requests from wireless clients in 2 minutes
after the WPS button is pressed.
Router is successfully connected to a device through
the corresponding port (1, 2, 3, or 4). If the LED is
LAN1-4
flashing, the Router is actively sending or receiving data
over that port.
The RJ-11 connector allows data communication
ADSL
between the modem and the ADSL network through a
Connector
twisted-pair phone wire.
Description
