GVA G85FFW15 Instruction Manual

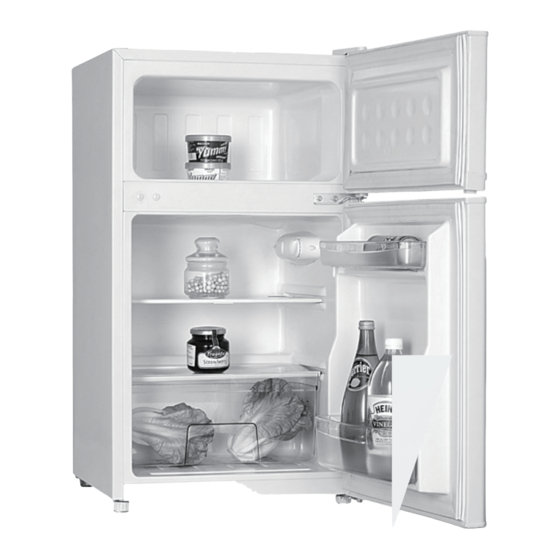

85l refrigerator/ freezer
Hide thumbs

Advertisement

Table of Contents

85L Refrigerator/ Freezer
G85FFW15
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G85FFW15 and is the answer not in the manual?

Questions and answers

Related Manuals for GVA G85FFW15

Summary of Contents for GVA G85FFW15

  • Page 1 85L Refrigerator/ Freezer G85FFW15 Instruction Manual...

  • Page 3: Table Of Contents

    Contents Guide to the A p p l i a nc e Cari ng fo r the Envir Safet y Info rm ation and Getti ng Started Ope ratio n Instruc tio ns Tro ublesh oot ing Care and Mainte nan ce Tec hnic al Spec ific atio ns...

  • Page 4: Guide To The Appliance

    Guide to the Appliance Freezer Freezer Door Compartment Thermostat Upper Fridge Control & Light Door Shelf Fridge Glass Shelf Fridge Door Salad Bin Cover Salad Bin Lower Fridge Door Shelf Levelling Feet Note: Due to production improvements, the appliance may differ slightly from the diagram shown.

  • Page 5: Caring For The Environment

    Caring for the Environment Responsible disposal of the packaging • The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. • Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of.

  • Page 6: Safet Y Info Rm Ation And

    Safety Information and Warnings Read this manual thoroughly before first use, even if you are familiar with this type of product. We have provided many important safety statements in this manual concerning the use of this appliance. Always read and observe all safety statements. They reduce the risk of fire, electric shock and injury when correctly adhered to.

  • Page 7: Safety Information And Warnings

    If the power cord is damaged, it must be replaced by the manufacturer or its service agent. Contact GVA customer care for advice. Electrical work: If the installation of this appliance requires any electrical work, make sure it is...
  • Page 8 Safety Information and Warnings Usage conditions and restrictions • This appliance is intended to be used in household and similar applications such as: 1）Staff kitchen areas in shops, offices and other working environments; 2）Farm houses and by clients in hotels, motels and other residential type environments; 3）Bed and breakfast type environments;...

  • Page 9: Getting Started

    Unwind the cord to its full length and inspect it for damage. Do not use the appliance if the appliance or its cord has been damaged. In case of damage, contact GVA customer care for advice on examination, repair or return of the damaged product.

  • Page 10: Getting Started

    Getting Started Location Locate the appliance - Away from direct sunlight, which may affect the acrylic coating. - Away from sources of heat (stove, heater, radiator, dishwasher, etc.), which may increase power consumption. - In an area without extreme cold ambient temperatures, which may affect cooling performance.
  • Page 11 Getting Started This door can be opened from either the left side (as supplied) or right side to suit your individual installation requirements. If you want to open the door from the right side, follow the instructions below to reverse the door swing. WARNING Ensure the appliance is disconnected from the power supply when reversing door swing.
  • Page 12 Getting Started 4. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching. 5. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.
  • Page 13 Getting Started 8. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Screw Unscrew 9. Re-fit the bottom hinge. Replace both levelling feet. Transfer the door to the proper position. Screw 10. Move the hinge hole cover of lower door from left side to right side.
  • Page 14 Getting Started 11. Reverse the middle hinge 180°C, then transfer it to the left position. Insert the middle hinge pin in the upper hole of the lower door, then tighten the bolts. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the hinge.

  • Page 15: Operation Instructions

    Operation Instructions Switching on the Appliance 1. Before connecting the appliance to the mains supply, adjust the thermostat control dial to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature °...

  • Page 16: Troubleshooting

    If you experience a problem with your appliance, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your appliance, call GVA customer care for advice. Problem...

  • Page 17: Care And Maintenance

    Care and Maintenance Defrosting the Appliance When? For the most efficient operation and minimum energy consumption, defrost the appliance when the frost accumulated on the evaporator is about 5mm thick. How? Turn the thermostat dial to the [0] position and unplug the cord. Remove perishable food items and keep them in another fridge or freezer or place in a cooler bag to protect the food.

  • Page 18: Care And Maintenance

    Care and Maintenance Energy Saving Tips Place the appliance in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. Do not line any storage bin with aluminium foil, wax paper or paper towels. Liners interfere with cold air circulation, reducing cooling efficiency.

  • Page 19: Tec Hnic Al Spec Ific Atio Ns

    Model: G85FFW15 Group: 4 (Refrigerator/Freezer) Product dimension WxDxH : 470mm x 500mm x 850mm Total gross volume: 85L Total storage volume: 84L Fresh-food compartment storage volume: 59L Freezer compartment storage volume: 25L Climate class: T Rated voltage: 220-240V. Rated Frequency: 50Hz Rated Current: 0.6A...
  • Page 20 M.E.W. (Australia) Pty Ltd 15 Vaughan Street Essendon Fields VIC 3041 ACN 152 719 036 1300 725 885 customercare@gvaproducts.com.au gvaproducts.com.au CKGVA-P01-A...

This manual is also suitable for:

G204ffw15
