Summary of Contents for GVA G67BFW15

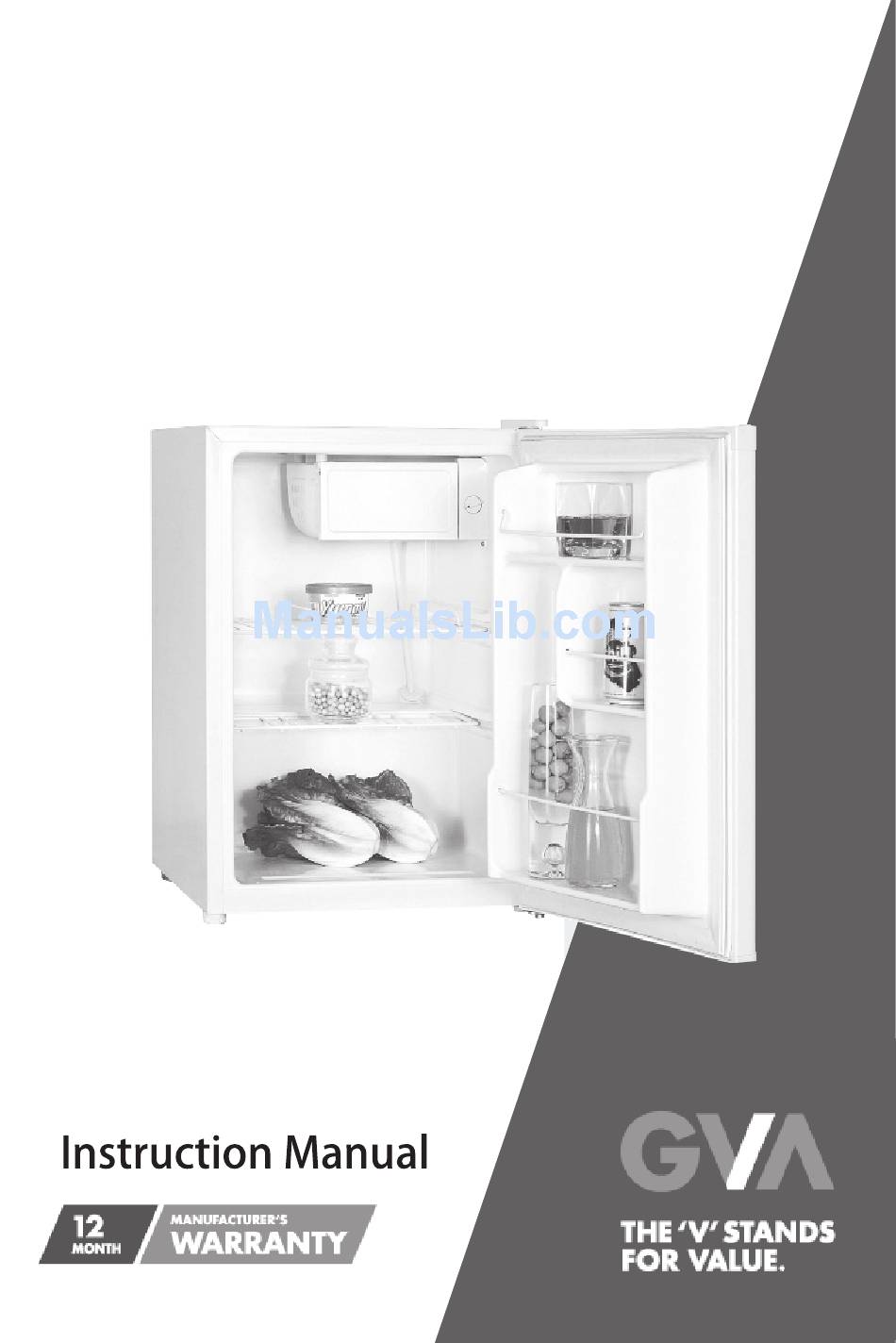

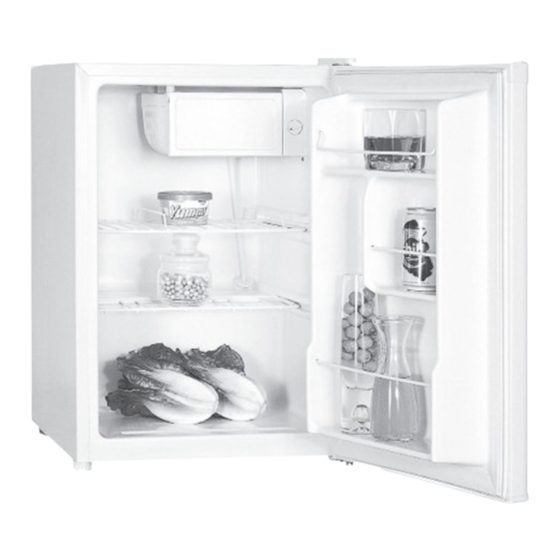

- Page 1 67L Bar Fridge G67BFW15...
-
Page 2: Table Of Contents
Contents G uide to the A p p l i a n c e Cari ng fo r the Envir Safe ty Info rm atio n an d G ett ing Starte d Op e ratio n Instruc tio ns Tro uble sh oo ting C are and Maint e nan ce Te c hn ic al Spe c i f ic atio ns... -
Page 3: Guide To The Appliance
Guide to the Appliance o i t o i t s ’ n s ’ n g i l g i l l t h l t h below sketch. below sketch. 1. Cabinet 1. Cabinet 6. Door 6. Door 2. -
Page 4: Caring For The Environment
Caring for the Environment Responsible disposal of the packaging • The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. • Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. -
Page 5: Safe Ty Info Rm Atio N An D
Safety Information and Warnings Read this manual thoroughly before first use, even if you are familiar with this type of product. We have provided many important safety statements in this manual concerning the use of this appliance. Always read and observe all safety statements. They reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 6: Electrical Safety
Installation • Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two person lift or mechanical aid when installing it. • Location: The room for installing appliance must be at least 1M³per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found on the rating plate on the back of the appliance. -
Page 7: Safety Information And Warnings
Safety Information and Warnings Usage conditions and restrictions • This appliance is intended to be used in household and similar applications such as: 1）Staff kitchen areas in shops, offices and other working environments; 2）Farm houses and by clients in hotels, motels and other residential type environments; 3）Bed and breakfast type environments;... -
Page 8: Getting Started
Getting Started Before first use • Unpack the appliance but keep all packaging materials until you have made sure your new bar fridge is undamaged and in good working order. • Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach. - Page 9 Getting Started • Locate the bar fridge: • Away from direct sunlight, which may affect the acrylic coating. • Away from sources of heat (stove, heater, radiator, dishwasher, etc.),which may increase power consumption. • In an area without extreme cold ambient temperatures, which may affect cooling performance.
- Page 10 Getting Started This bar fridge can be opened from either the left side (as supplied) or right side to suit your individual installation requirements. If you want to open the door from the right side, follow the instructions below WARNING! d i r c s i i s r...
- Page 11 Getting Started 4.Remove the top left screw cover. 5. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching. 6. Remove the screws and bottom hinge. Then remove the levelling feet from both side.
- Page 12 Getting Started 7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Screw Unscrew 8. Refit the bracket fitting the bottom hinge pin. Replace both levelling feet. Screw 9. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
- Page 13 Getting Started 12. Put the hinge cover and the screw co ver back. 13. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge.
-
Page 14: Operation Instructions
Operation Instructions Temperature control • The control for regulating the temperature inside the refrigerator is located on the upper right hand side of the compartment. • Position “0” means OFF. • Turning clockwise in direction will turn the refrigerating unit ON. •... -
Page 15: Troubleshooting
Troubleshooting If you experience a problem with your bar fridge, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your bar fridge, call the after sales support line for advice. Problem Possible cause •... - Page 16 Troubleshooting •The exterior walls can be warmer than room The external fridge surface is warm. temperature. This is normal while the compressor works to transfer heat from inside the fridge cabinet. •The fridge door has been left open. Excessive frost and ice has built up.
-
Page 17: Care And Maintenance
Care and Maintenance Defrosting the bar fridge When？ For the most efficient operation and minimum energy consumption, defrost the bar fridge when the frost accumulated on the evaporator is about 5mm thick. How？ Turn the thermostat dial to the [0] position and unplug the bar fridge. Remove perishable food items from the fridge and keep them in another fridge or cooler bag to protect the food. -
Page 18: Energy Saving Tips
Energy saving tips •Place the fridge in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. •Let hot foods cool down a little before placing them into the fridge. Overloading the fridge forces the compressor to run longer. •Wrap foods properly and wipe containers dry before placing them in the fridge. -
Page 19: Te C Hn Ic Al Spe C I F Ic Atio Ns
-Model: G67BFW15 -Group: 2 (Refrigerator) -Product dimension WxDxH : 440mm x 510mm x 640mm -Total gross volume: 67L -Total storage volume: 62L -Fresh-food compartment storage volume: 57.0L -Special compartment storage volume: 5.0L -Climate class: T -Rated voltage: 220-240V~ -Rated Frequency: 50Hz -Rated Current: 0.45A... - Page 20 M.E.W. (Australia) Pty Ltd 15 Vaughan Street Essendon Fields VIC 3041 ACN 152 719 036 1300 725 885 customercare@gvaproducts.com.au gvaproducts.com.au CKGVA-B01-G...
