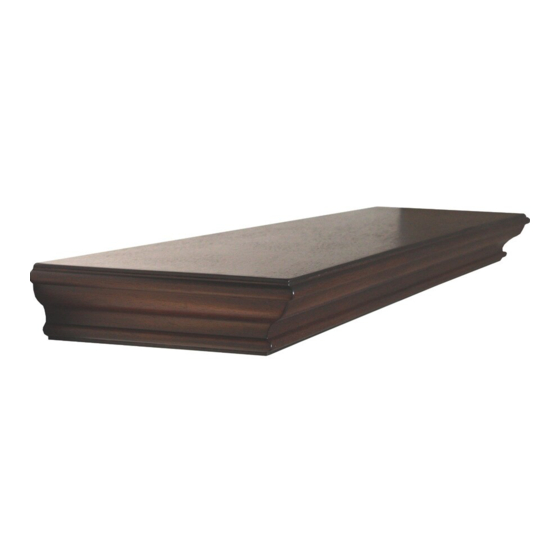

- Page 1 ITEM #0441147 COLONIAL WALL SHELF MODEL #EFC-WS13-007 allen + roth® is a registered trademark French p. 6 of LF, LLC. All Rights Reserved. Español p.11 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Shelf...
- Page 3 HARDWARE CONTENTS (shown actual size) Bracket Wall Qty. 1 Anchor Pinhead Screw Qty. 7 Long Qty. 7 Screw Qty. 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Assemble the parts on a soft, non-abrasive surface, such as carpeting, to avoid scratching the finish.
- Page 4 ASSEMBLY INSTRUCTIONS 1. Hold the bracket (DD) against the wall at the desired height.Mark the hole positions with a marking pencil (not included). Make sure the holes are level. Using a 1/4 in. masonry bit (not included), drill three holes into the pre-marked keyhole positions.
- Page 5 ASSEMBLY INSTRUCTIONS 4. Hang the shelf (A) onto the bracket (DD). Secure the shelf (A) with the long screws (CC). Hardware Used Long Screw CARE AND MAINTENANCE • Periodically check to make certain all components are properly positioned, free from damage and firmly connected. •...
