48-IN VANITY WITH TOP
ITEM #5141656; 5141668; 5141672
MODEL #1690VA-48-318-901-UM; 1690VA-48-318-925-UM; 1690VA-48-318-926-UM
MODEL NUMBER
1690VA-48-318-901-UM
1690VA-48-318-925-UM
1690VA-48-318-926-UM
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday.
DESCRIPTION

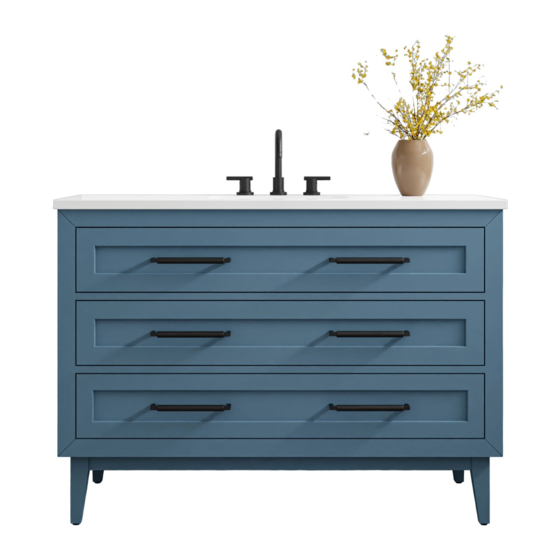

O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED WHITE TOP
O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED CARRARA TOP
O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED CALACATTA TOP
1
Advertisement
Related Manuals for Allen + Roth 1690VA-48-318-925-UM
Summary of Contents for Allen + Roth 1690VA-48-318-925-UM
- Page 1 48-IN VANITY WITH TOP ITEM #5141656; 5141668; 5141672 MODEL #1690VA-48-318-901-UM; 1690VA-48-318-925-UM; 1690VA-48-318-926-UM MODEL NUMBER DESCRIPTION 1690VA-48-318-901-UM O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED WHITE TOP 1690VA-48-318-925-UM O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED CARRARA TOP 1690VA-48-318-926-UM O21 48-IN EDISON CHAMBRAY VANITY/ENGINEERED CALACATTA TOP ATTACH YOUR RECEIPT HERE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions....................4 Care and Maintenance........................10 Warranty............................10 Replacement Parts List.........................11... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Handle Wrench Bolt Sink Bracket Lock Washer Wrench Qty. 1 Qty. -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS... - Page 5 INSTALLATION INSTRUCTIONS 2. As shown in the diagram, fully extend the drawer and locate the plastic levers on the metal glide tracks. Push the left-side and right-side levers at the same time to disengage the drawer from the drawer glides. Gently lift the drawer up to remove it from vanity (A).
- Page 6 INSTALLATION INSTRUCTIONS 4. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 7 INSTALLATION INSTRUCTIONS 6. Screw bolts (FF) into the threaded holes of stone top (B). Hardware Used Bolt 7. Lower the sink brackets (GG) over the bolts (FF) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (II) over bolts (FF) and secure with nuts (HH).
- Page 8 INSTALLATION INSTRUCTIONS Helpful tip: it may be easier to install your choice of faucet (not included) before securing the vanity top (B) to vanity base (A). 8. To install the top (B) to the vanity (A). Apply silicone caulk to the top edge of the wood cabinet.
- Page 9 INSTALLATION INSTRUCTIONS 10. Apply silicone caulk (not included) to unpolished side and bottom of backsplash (C). Position backsplash (C) on top (B) and against wall. Clean any excess caulk before allowing to dry. Assembly is now complete. Install desired faucet and drain assemblies (neither included) per the manufacturers’...
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 11: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com. PART DESCRIPTION PART# Complete Set 48" Engineered White Top 2500VT-48-901 Complete Set 48"...
