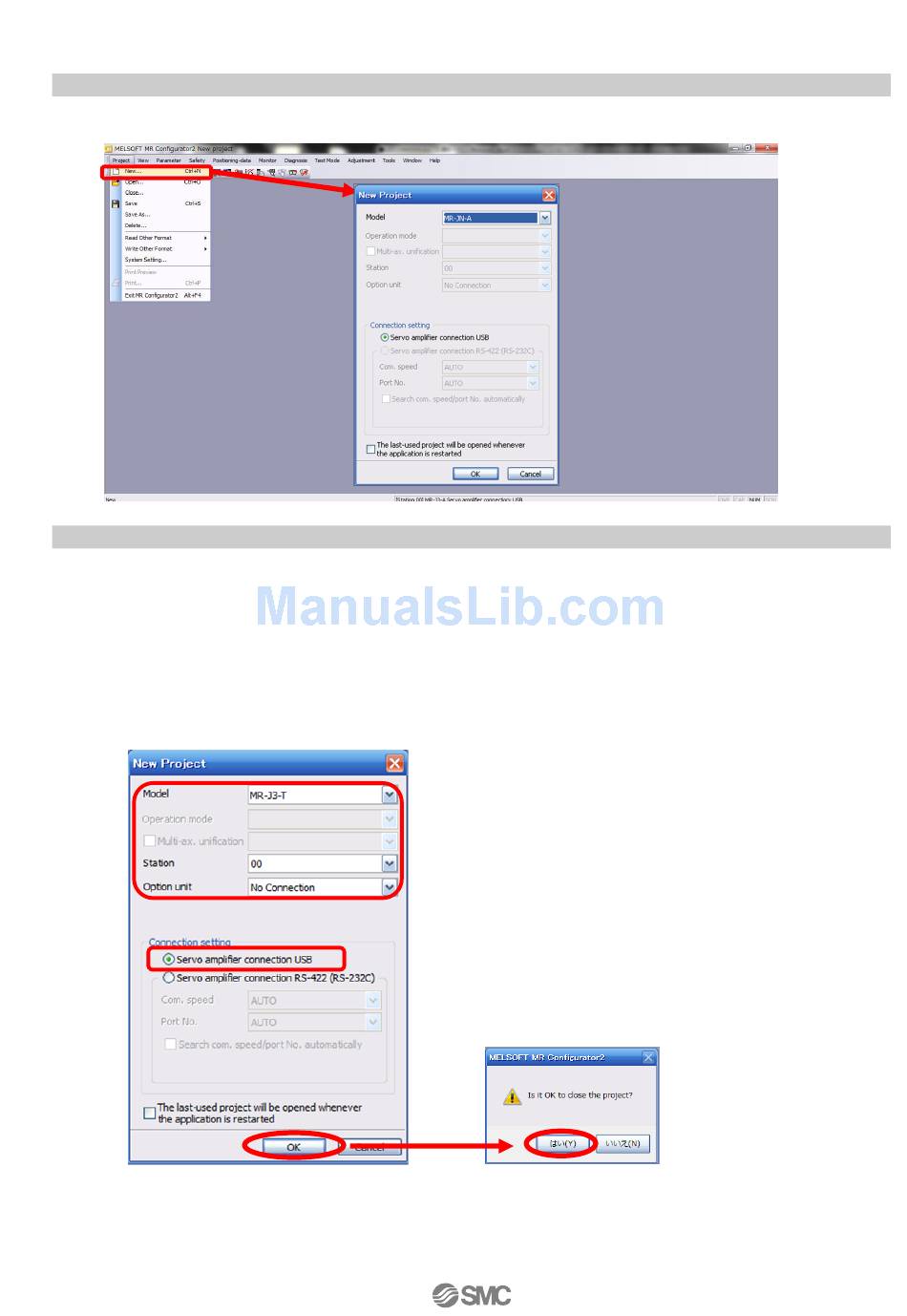

5.2.2 "System Settings"
① From "Project" menu select "New", the "New project" window will be displayed.
5.2.3 Model Selection
① The Mitsubishi Electric Corporation series will be displayed in the model selection list.
Please select the model "MR-J3-T", if using the LECSC.
Please select the station for the USB connection. Please to match the value of parameter [PC20] and the
station.
Please select the station "00", if you want to use for the first time.
Please select the option unit "
② Please select "servo amplifier connection USB" as the communication device.
③ Click OK.
④ Click OK.
①
②
③
".
No Connection
-20-
④
