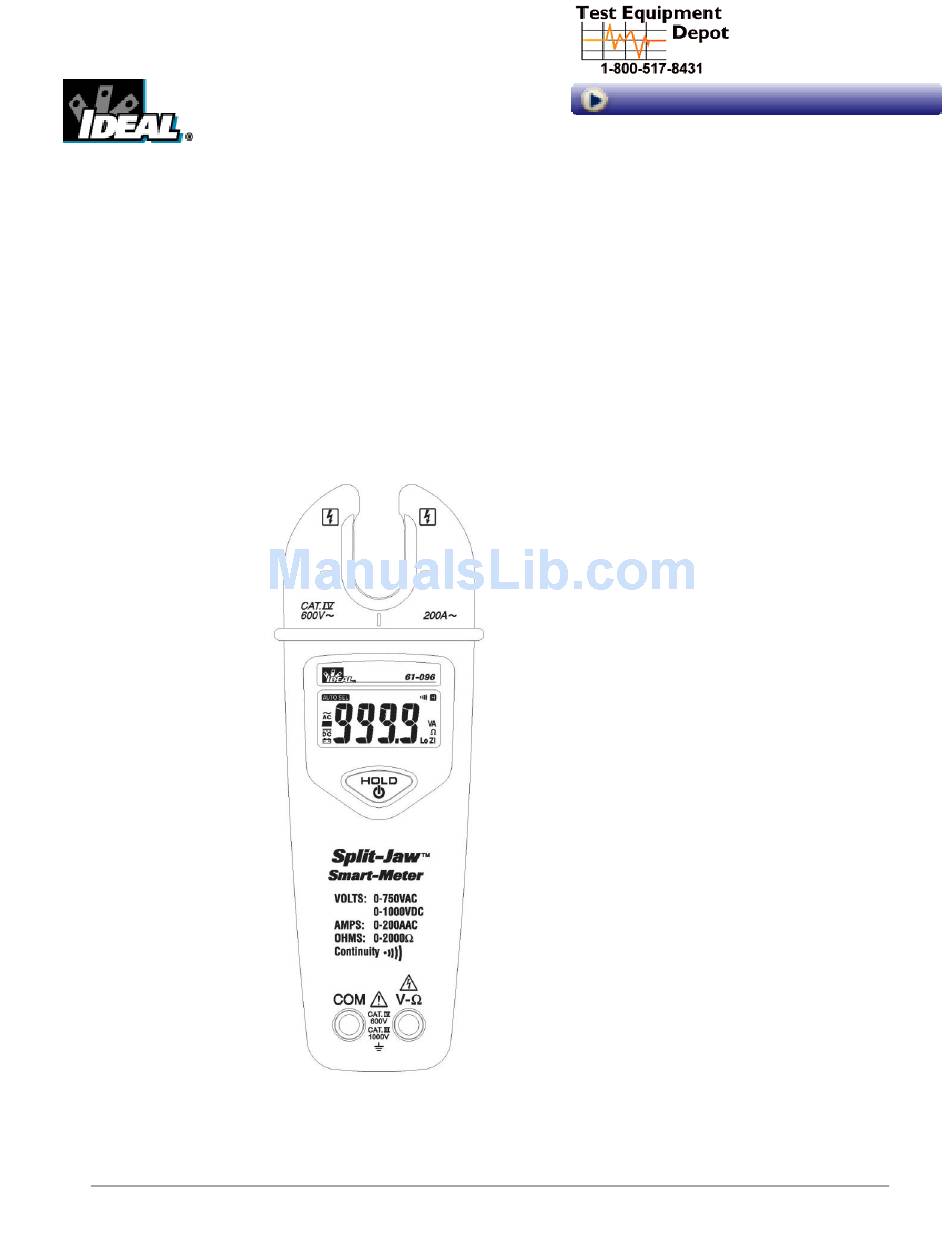

IDEAL INDUSTRIES INC.
TECHNICAL MANUAL
MODEL 61-096 Split Jaw Smart Meter
The Service Information provides the following information :
•
Precautions and safety information
•
Specifications
•
Basic maintenance (cleaning, replacing the battery and fuses)
•
Performance test procedures
•
Calibration and calibration adjustment procedures
Form Number: TM61096
Revision: 2. Date: Nov 2010
Form Number TM61096
Rev 2 Nov 2010
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IDEAL 61-096
Summary of Contents for IDEAL 61-096
- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com IDEAL INDUSTRIES INC. TECHNICAL MANUAL MODEL 61-096 Split Jaw Smart Meter The Service Information provides the following information : • Precautions and safety information • Specifications •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Introduction Precautions and Safety Information Symbols Safety Specifications General Specification Voltage Specification Resistance & Continuity Specification Current Specification Physical and environment characteristics Certification and compliance Required Equipment Basic Maintenance Opening the Meter Case Replacing the Battery Performance Tests Testing the Voltage Function Testing the Resistance Function... -
Page 3: Introduction
The information provided in this document is for the use of qualified personnel only. Caution The 61-096 contain parts that can be damaged by static discharge. Follow the standard practices for handling static sensitive devices. Precautions and Safety Information Use the Meter only as described in the Service Manual. -
Page 4: Safety
SAFETY Review the following safety precautions to avoid injury and prevent damage to this product or products connected to it. To avoid potential hazards, use the product only as specified. CAUTION: These statements identify conditions or practices that could result in damage to the equipment or other property. -
Page 5: Specifications
SPECIFICATIONS All specifications are warranted unless noted typical and apply to the 61-096 Stated accuracies are at 23°C±5°C at less than 80% relative humidity and without the battery indicator displayed. General specifications Characteristics Description Display count 6000 Numeric update rate... -
Page 6: Voltage Specification
Measurement Characteristics Accuracy is ±(% reading + number of digits) at 23°C ± 5°C, less than 80% R.H. DC / AC Volts Function Range Accuracy ±(1.5% reading + 3 digits) 1.3V 750.0V 50Hz 500Hz 1.8V 1000V ±(1% reading + 2 digits) -0.6V -1000V ±(1% reading + 4 digits) -
Page 7: Physical And Environment Characteristics
Physical and Environmental Characteristics Characteristics Description Dimensions (W×H×L) 84mm×188mm×41mm Weight (with battery) 230g Environmental characteristics Description Temperature operating 0 to +50°C Non-Operating -20 to +60°C Humidity (operating) <80% R.H. Altitude Operating 2,000M (6560 ft.) Non-Operating 12,300M (40354 ft.) MIL-T-28800E TYPE II Class 5 Vibration &... -
Page 8: Required Equipment
Required Equipment Required equipment is listed in Table B. If the recommended models are not available, equipment with equivalent specifications may be used. Repairs or servicing should be performed only by qualified personnel. Table B. Required Equipment Equipment Required Characteristics Recommended Model AC Voltage Range: 0 750V AC... -
Page 9: Basic Maintenance
3. The case bottom is secured to the case top by two screws. Using a Phillips-had screwdriver, remove the two screws. Replacing the Battery The Meter powered by 9V battery for 61-096 To replace the battery refer to Figure. Form Number TM61096... -
Page 10: Performance Tests
Performance Tests The following performance tests verify the complete operability of the Meter and check the accuracy of each Meter function against the Meter’s specifications. Accuracy specifications are valid for a period of one year after calibration, when measured at an operating temperature of 18°C to 28°C and a maximum of 80% relative humidity. -
Page 11: Testing The Resistance Function
6. Set the calibration for the voltage from step 1 to 8 in Table 2. 7. Compare the reading on the Meter display with the display reading shown in Table 2. 8. If the display reading falls outside of the range shown in Table 2, the meter does not meet specification. -
Page 12: Testing The Ac Current Function
Testing the AC Current Function To verify the accuracy of AC current measurement functions, do the following: 1. Open jaw of the meter around the suitable wire or conductor. 2. Push the button to start your meter. 3. Apply the inputs for steps 1-4 in Table 4. 4. -
Page 13: Calibration
CALIBRATION PROCEDURE Recalibrate your meter: It is recommended that the meter may be calibrated once year. Use the following procedure to calibrate the clamp meter. 1. Perform calibration at an ambient temperature and relative humidity (23°C±2°C and R.H.≤80%). Allow instrument to sit at this temperature for at least thirty minutes. 2. -
Page 14: Calibration Adjustment Points
VR13 VR14 VR12 VR15 VR17 VR16 Figure 1 61-096 Calibration Adjustment Points Form Number TM61096 Rev 2 Nov 2010... -
Page 15: Calibration Adjustment Points
Figure 2 61-096 Calibration Adjustment Points Form Number TM61096 Rev 2 Nov 2010...
