Summary of Contents for DeDietrich DIEMATIC 3

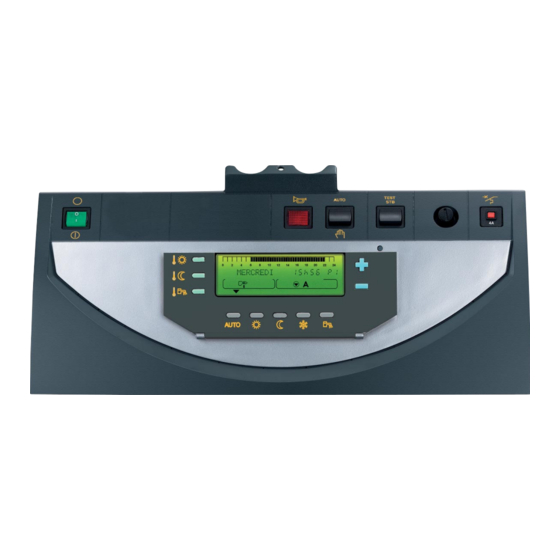

- Page 1 GT 120 - GTUC 120 - GT 220 - GTUC 220 Control panel DIEMATIC 3 - FM129 DIEMATIC 3 CH - FM133 Installation instructions 300003765-02...
-
Page 2: Table Of Contents
Skeleton Diagrams ..............20 DIEMATIC 3 - GT 120 / 220... -
Page 3: Symbols Used
See: Boiler installation instructions. • Connection of the water circuit for domestic use See: Calorifier instructions. • Installing options See: Option instructions. • Parameter settings and installation configuration See: Control panel technical instructions. 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 4: Installing The Outside Sensor
H: Inhabited height controlled by the sensor A: recommended position on a corner B: Possible position 3.1 Positions to be avoided 3.2 Installing the outside sensor CB Ø 4 wood screw + Inserts (provided) DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 5: Fitting The Flow Sensor
- Secure the sensor with the collar provided for this purpose. The flow sensor must not be covered by the insulation around the pipe. 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 6: Electrical Connections
Power the appliance via a circuit which includes a remote omnipolar switch with a gap of more than 3 mm. Earthing shall comply with standard NFC 15100 (France) or RGBT (Belgium). DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 7: Terminal Block
Connecting the TELCOM vocal telesurveillance module 1(B) For Switzerland: See chapter: Connecting the options To connect the mixing valve PCB + sensor options - See: Flue gas thermostat Instructions for option FM48, AD217 Boiler sensor 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 8: Basic Connections
230 V main supply Flue gas thermostat Burner fault alarm light Pump circuit A D.H.W. load pump DHW sensor Titanium anode Outside sensor Boiler sensor 10 Boiler with or without accumulator DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 9: Connecting Circuit B
Connect open to terminal 23 , close to terminal 22 and neutral to terminal 24 (N). If using a thermal motor Connect between terminal 23 (open) and terminal 2 (N). 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 10: Connecting The Options
Outlet sensor 10 Interactive remote control (package FM51 or FM52) 11 Flue gas sensor 12 TELCOM voice remote monitoring module (depending on its availability in your country) 13 Solar sensor probe DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 11: Connection Of A Second Domestic Hot Water Tank
- Adjust the TEMP.DHW A set temperature using the key D.H.W. load pump 80°C range to obtain a domestic hot water calorifier type operation. Outside sensor Boiler sensor Boiler with or without accumulator Boiler with accumulator 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 12: Pool Connection
This connection is possible if circuit A is not used 230 V main supply Flue gas thermostat Burner fault alarm light Swimming pool sensor (Package AD212) Pool secondary pump Primary pump pool Outside sensor Boiler sensor DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... - Page 13 5. Electrical connections Controlling the pool circuit Hourly programming of the secondary circuit pump The DIEMATIC 3 regulation can be used to control a pool circuit in The secondary pump operates during programme A comfort periods two different cases: in summer and winter alike.
-
Page 14: Connecting A Pool And Preparation For Solar Heated Domestic Hot Water
5.10 Connecting a pool and preparation for solar heated domestic hot water This connection is possible if circuit A and either circuit B or C are not used. DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 15: Connecting One Or Two Circuits With Mixer Valve
To connect the mixing valve PCB + sensor options - See: Instructions for option FM48 For Switzerland: 1 PCB + sensor for a mixing valve is already prefitted to the control panel. 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... -
Page 16: Hot Water Storage Tank Connection
Package AD160 contains 2 sensors: - The sensor for the solar panel is used as a storage tank sensor - The sensor for the storage tank is used as a DHW sensor DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... -
Page 17: Basic Connections If The Installation Is In Cascade And When Connecting To A Regulation Diematic Vm
(package AD 212) The boiler can be connected to a boiler in cascade or to a DHW sensor DIEMATIC VM using a BUS cable (package AD134 or DB119). D.H.W. loop back pump 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220... - Page 18 Flue gas thermostat Burner fault alarm light Primary injection pump Boiler sensor (Follower boiler) Boiler with or without accumulator From the previous cascade boiler Not used Boiler sensor on common output DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02...
- Page 19 (#CONFIGURATION) on each boiler to 1 and 2 respectively. Set the parameter CIRC. A: to PRIM.P. on boiler The boilers switch over every 7 days. If necessary, the startup of the secondary boiler is timed at 4 minutes. 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220...
-
Page 20: Skeleton Diagrams
6. Skeleton Diagrams 6 Skeleton Diagrams DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02... - Page 21 6. Skeleton Diagrams 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220...
- Page 22 6. Skeleton Diagrams DIEMATIC 3 - GT 120 / 220 27/11/2015 - 300003765-02...
- Page 23 6. Skeleton Diagrams 27/11/2015 - 300003765-02 DIEMATIC 3 - GT 120 / 220...
- Page 24 DE DIETRICH THERMIQUE S.A.S 129164, +49 (0)25 72 / 9161-0 +49 (0)25 72 / 9161-102 info@remeha.de +7 (495) 221-31-51 info@dedietrich.ru DE DIETRICH THERMIQUE Iberia S.L.U. DE DIETRICH SERVICE www.dedietrich-calefaccion.es www.dedietrich-heiztechnik.com Freecall 0800 / 201608 C/Salvador Espriu, 11 08908 L’HOSPITALET de LLOBREGAT +34 935 475 850 info@dedietrich-calefaccion.es...
