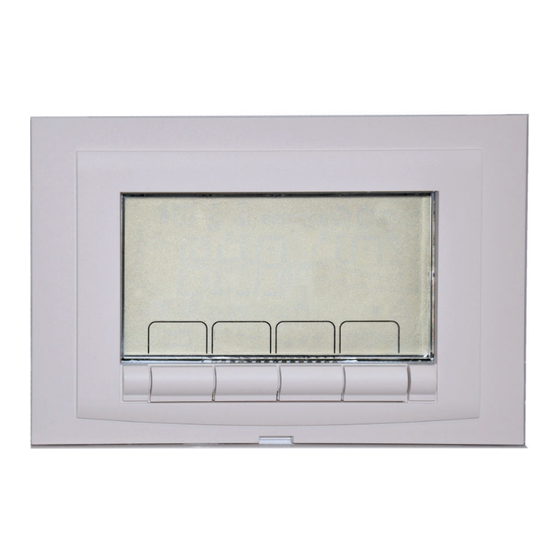

DeDietrich IniControl Installation, User And Service Manual

For de dietrich c 330; de dietrich c 630 eco
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Regulation
IniControl
For C 330 / C 630 ECO
7600717-001-06
C003108-A
Installation, User
and Service
Manual
Ireland
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IniControl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeDietrich IniControl

Summary of Contents for DeDietrich IniControl

  • Page 1 Ireland Regulation IniControl For C 330 / C 630 ECO Installation, User and Service Manual C003108-A 7600717-001-06...

  • Page 2: Table Of Contents

    Contents Introduction ....................4 Symbols used ............4 Liabilities ...............4 1.2.1 Manufacturer’s liability ..........4 1.2.2 Installer’s liability .............5 1.2.3 User’s liability ............5 Certifications ............6 Safety instructions and recommendations ..........7 Recommendations ..........7 Technical specifications ................8 Sensor characteristics .........8 Installation ....................9 Package list ............9 4.1.1 Standard delivery ............9 4.1.2...
  • Page 3 Contents Changing the settings ........19 5.4.1 General ..............19 5.4.2 Parameter descriptions .........19 5.4.3 Modification of the user-level parameters .....23 5.4.4 Modification of the installer-level parameters ..24 5.4.5 Setting the maximum heat input for central heating operation ...............25 5.4.6 Return to the factory settings Reset Param ..26 5.4.7 Carrying out an auto-detect ........26 5.4.8...
  • Page 4 260216 - 7600717-001-06...

  • Page 5: Introduction

    IniControl For C 330 / C 630 ECO 1. Introduction Introduction Symbols used In these instructions, various danger levels are employed to draw the user’s attention to particular information. In so doing, we wish to safeguard the user’s safety, highlight hazards and guarantee correct operation of the appliance.

  • Page 6: Installer's Liability

    1. Introduction IniControl For C 330 / C 630 ECO In the interest of customers, we are continuously endeavouring to make improvements in product quality. All the specifications stated in this document are therefore subject to change without notice. Our liability as the manufacturer may not be invoked in the...

  • Page 7: Certifications

    IniControl For C 330 / C 630 ECO 1. Introduction This appliance is not intended to be used by persons (including children) whose physcial, sensory or mental capacity is impaired or persons with no experience or knowledge, unless they have the benefit, through the...

  • Page 8: Safety Instructions And Recommendations

    2. Safety instructions and recommendations IniControl For C 330 / C 630 ECO Safety instructions and recommendations Recommendations WARNING Any intervention on the appliance and heating equipment must be carried out by a qualified engineer. For a proper operating of the boiler, follow carefully the instructions.

  • Page 9: Technical Specifications

    IniControl For C 330 / C 630 ECO 3. Technical specifications Technical specifications Sensor characteristics Outside sensor Temperature in °C -20 Resistance in Ω 2392 2088 1811 1562 1342 1149 984 842 720 616 528 454 Specifications of the flow sensor circuit B + C...

  • Page 10: Installation

    4. Installation IniControl For C 330 / C 630 ECO Installation Package list 4.1.1. Standard delivery The delivery includes: 4 The control panel with the IniControl module 4 Installation, use and maintenance manual for the control panel 4.1.2. Accessories Various options are available depending on the configuration of the...

  • Page 11: Connecting The Outside Sensor

    IniControl For C 330 / C 630 ECO 4. Installation 4 protected from direct sunlight 4 easy to access Recommended position Possible position Inhabited height controlled by the sensor Inhabited area controlled by the sensor 8800N001-C Positions to be avoided: 4 masked by a building element (balcony, roof, etc.)

  • Page 12: Electrical Connections

    4. Installation IniControl For C 330 / C 630 ECO Electrical connections 4.4.1. Connecting a direct heating circuit Connect the outside temperature sensor. SCU-S05 SCU-S05 PCB = Option ECS S EXT S DE On/off PUMP 2 1 2 Heating connection pump.
  • Page 13 IniControl For C 330 / C 630 ECO 4. Installation Boiler pump Low loss header Cascade outlet sensor Connect the sensor to the terminal block S SYST on the master boiler. Boiler power supply - 230 V Connection cable linking the Opentherm from the PCU to...

  • Page 14: Commissioning

    5. Commissioning IniControl For C 330 / C 630 ECO Commissioning Control panel For operation of the boiler C 630 ECO: Each module has its own instrument panel. 5.1.1. Description of the keys SERVICE °C°Fh barPsi °C % rpm kW uA x10 l/min "...

  • Page 15: Description Of The Display

    IniControl For C 330 / C 630 ECO 5. Commissioning 5.1.2. Description of the display n Key functions Back to the previous level without saving the modifications made SERVICE °C°Fh Manual reset barPsi °C % rpm Central heating function: kW uA Access to the max.

  • Page 16: Switch On The Instrument Panel

    For operation of the boiler C630 Eco: The features and instructions described are for each boiler module. The instrument panel IniControl is ready for use, as soon as the power to the boiler is switched on. 1. Open the gas valve on the boiler.

  • Page 17: Reading Out Measured Values

    IniControl For C 330 / C 630 ECO 5. Commissioning 4. The start-up cycle begins and cannot be interrupted. During the start-up cycle, the display shows the following information: A short test where all segments of the display are visible.

  • Page 18: Readout From The Hour Counter And Percentage Of Successful Starts

    5. Commissioning IniControl For C 330 / C 630 ECO 4 5210 = Pressure switch minimum VPS. 4 5213 = Burner start. 4 5214 = Trap protection activated. 4 5215 = internal. 4 5216 = internal. 4 5217 = internal.

  • Page 19: Status And Sub-Status

    IniControl For C 330 / C 630 ECO 5. Commissioning 5.3.3. Status and sub-status The information menu Q gives the following status and sub-status numbers: St status Sub-status Operation Rest Rest Anti-short cycle activated Open isolating valve Boiler start (Heat demand)

  • Page 20: Changing The Settings

    5. Commissioning IniControl For C 330 / C 630 ECO Changing the settings 5.4.1. General The boiler control panel is set for the most common heating systems. With these settings, practically all heating systems operate correctly. The user or installer can optimise the parameters according to own preferences.
  • Page 21 IniControl For C 330 / C 630 ECO 5. Commissioning Factory setting Parameter Description Adjustment range C 330 ECO 280 350 430 500 570 650 Heat curve set point (Maximum outside temperature) 0 to 30 °C (Only with an outside...
  • Page 22 5. Commissioning IniControl For C 330 / C 630 ECO Factory setting Parameter Description Adjustment range C 330 ECO 280 350 430 500 570 650 ( x 100) Service operating hours 175 175 175 175 175 175 Do not modify...
  • Page 23 IniControl For C 330 / C 630 ECO 5. Commissioning Factory setting Parameter Description Adjustment range C 630 ECO 560 700 860 1000 1140 1300 Heat curve set point (Maximum outside temperature) 0 to 30 °C (Only with an outside...

  • Page 24: Modification Of The User-Level Parameters

    5. Commissioning IniControl For C 330 / C 630 ECO Factory setting Parameter Description Adjustment range C 630 ECO 560 700 860 1000 1140 1300 0 = Service messages off Maintenance message 1 = Service messages on ( x 100)

  • Page 25: Modification Of The Installer-Level Parameters

    IniControl For C 330 / C 630 ECO 5. Commissioning 1. Press the two keys f simultaneously and then key [+] until the symbol W flashes on the menu bar. 2. Select the users menu using the key S . p[001 is displayed with 1 flashing.

  • Page 26: Setting The Maximum Heat Input For Central Heating Operation

    5. Commissioning IniControl For C 330 / C 630 ECO 1. Press the two keys f simultaneously and then key [+] until the symbol - flashes on the menu bar. 2. Select the fitter menu using the ® key. c0de appears on the display.

  • Page 27: Return To The Factory Settings Reset Param

    IniControl For C 330 / C 630 ECO 5. Commissioning 5.4.6. Return to the factory settings Reset Param 1. Press the two keys f simultaneously and then key [+] until the symbol - flashes on the menu bar. 2. Select the installers menu using the key S . c0de appears on the display.

  • Page 28: Setting The Manual Mode

    5. Commissioning IniControl For C 330 / C 630 ECO 5.4.8. Setting the manual mode In some cases it may be necessary to switch the boiler to manual operation, For example, if the controller has not yet been connected. The boiler can be switched to automatic or manual operation under the symbol E.

  • Page 29: Troubleshooting

    IniControl For C 330 / C 630 ECO 6. Troubleshooting Troubleshooting Shutdowns and lock-outs For operation of the boiler C 630 ECO: The features and instructions described are for each boiler module. 6.1.1. General The boiler is fitted with an electronic regulation and control unit. The heart of the control system is a microprocessor, the Comfort ©...
  • Page 30 6. Troubleshooting IniControl For C 330 / C 630 ECO Shutdown Description Probable causes Checking / solution code Check the circulation (direction, pump, valves) The water flow in the Check the water pressure installation is insufficient The maximum difference Check the cleanliness of the heat...
  • Page 31 IniControl For C 330 / C 630 ECO 6. Troubleshooting Shutdown Description Probable causes Checking / solution code The PSU PCB is not recognised Wrong PSU PCB for this Replace the PSU PCB 5v[18 boiler The boiler has not been...
  • Page 32 6. Troubleshooting IniControl For C 330 / C 630 ECO Error Description Probable causes Checking / solution code The exchanger sensor is short Bad connection Check the wiring between the PCU PCB and the circuited sensor Check that the SU PCB is correctly in place...
  • Page 33 IniControl For C 330 / C 630 ECO 6. Troubleshooting Error Description Probable causes Checking / solution code Return temperature too low Bad connection Check the wiring between the PCU PCB and the sensor Check that the SU PCB is correctly in place...
  • Page 34 6. Troubleshooting IniControl For C 330 / C 630 ECO Error Description Probable causes Checking / solution code Check that the air inlet and flue gas discharge flues are not blocked Check that condensate has been removed and the cleanliness of the siphon...
  • Page 35 IniControl For C 330 / C 630 ECO 6. Troubleshooting Error Description Probable causes Checking / solution code Problem on the gas valve Bad connection Check the wiring between the PCU PCB and the gas valve e[17 Check that the SU PCB is correctly in place...

  • Page 36: Error Memory

    6. Troubleshooting IniControl For C 330 / C 630 ECO Error memory The boiler control is equipped with an error memory. The last 16 errors encountered are recorded in this memory. In addition to the error codes, the following data are also saved: 4 Number of times that the error occured: (MK[xx).

  • Page 37: Deletion Of The Error Display

    IniControl For C 330 / C 630 ECO 6. Troubleshooting 6.2.2. Deletion of the error display 1. Press the two keys f simultaneously and then key [+] until the symbol a flashes on the menu bar. 2. Select the installers menu using the key S . c0de appears on the display.
  • Page 40 Зубарев переулок, д. 15/1 +49 (0)25 72 / 9161-0 Бизнес-центр «Чайка Плаза», +49 (0)25 72 / 9161-102 офис 309 info@remeha.de +7 (495) 221-31-51 info@dedietrich.ru DE DIETRICH THERMIQUE Iberia S.L.U. DE DIETRICH SERVICE www.dedietrich-calefaccion.es www.dedietrich-heiztechnik.com Freecall 0800 / 201608 C/Salvador Espriu, 11 08908 L’HOSPITALET de LLOBREGAT...
