BATTERY CHARGING

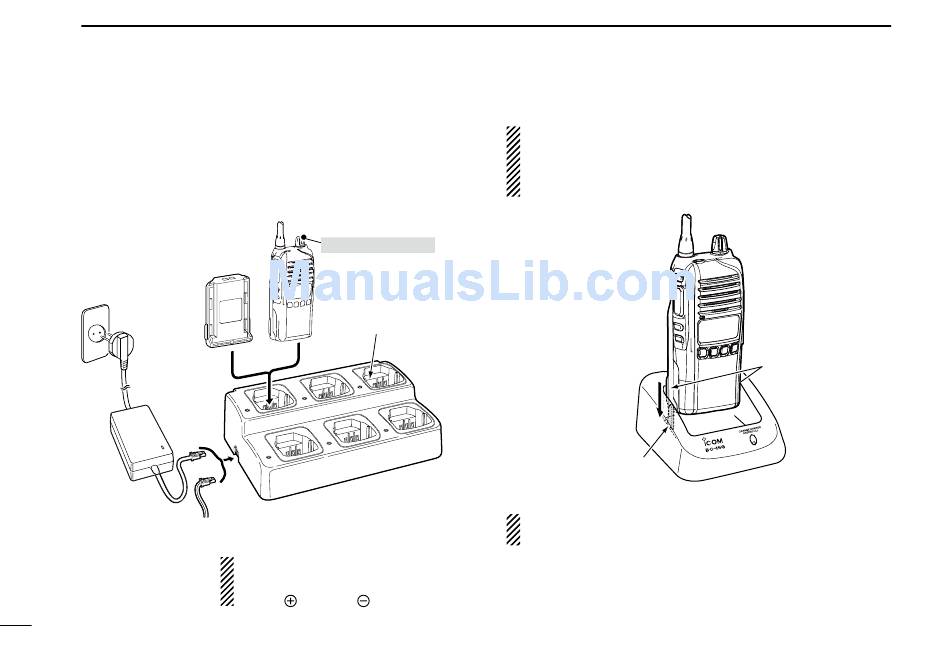

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 Li-ion battery packs to
be charged simultaneously. The following items are addition-
ally required.
• Six AD-106 charger adapters
• An optional power adapter or the DC power cable (OPC-656)
Power adapter
(Purchased
separately)
19
Transceiver
Turn OFF the power
Battery
pack
AD-106 charger
adapters are installed
in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
CAUTION: NEVER connect the OPC-656
*
to a power source using reverse polarity.
This will ruin the battery charger.
Red line: Black line :
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
Guide rail
NOTE: For the instructions on the BC-197 multi-charger,
see the instruction manual supplied with the charger.
Tabs
