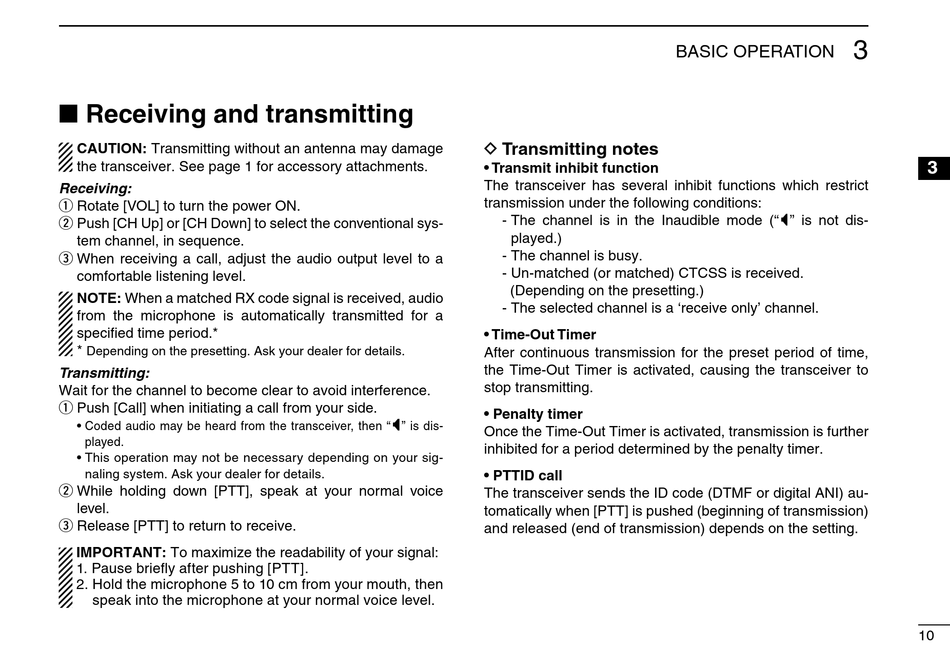

■ Receiving and transmitting

CAUTION: Transmitting without an antenna may damage
the transceiver. See page 1 for accessory attachments.
Receiving:
q Rotate [VOL] to turn the power ON.
w Push [CH Up] or [CH Down] to select the conventional sys-
tem channel, in sequence.
e When receiving a call, adjust the audio output level to a
comfortable listening level.
NOTE: When a matched RX code signal is received, audio
from the microphone is automatically transmitted for a
specified time period.*
*
Depending on the presetting. Ask your dealer for details.
Transmitting:
Wait for the channel to become clear to avoid interference.
q Push [Call] when initiating a call from your side.
• Coded audio may be heard from the transceiver, then " " is dis-
played.
• This operation may not be necessary depending on your sig-
naling system. Ask your dealer for details.
w While holding down [PTT], speak at your normal voice
level.
e Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal:
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm from your mouth, then
speak into the microphone at your normal voice level.
D Transmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is in the Inaudible mode (" " is not dis-
played.)
- The channel is busy.
- Un-matched (or matched) CTCSS is received.
(Depending on the presetting.)
- The selected channel is a 'receive only' channel.
• Time-Out Timer
After continuous transmission for the preset period of time,
the Time-Out Timer is activated, causing the transceiver to
stop transmitting.
• Penalty timer
Once the Time-Out Timer is activated, transmission is further
inhibited for a period determined by the penalty timer.
• PTTID call
The transceiver sends the ID code (DTMF or digital ANI) au-
tomatically when [PTT] is pushed (beginning of transmission)
and released (end of transmission) depends on the setting.
