Setting 12 Degree Trendelenburg Mode
The bed will ship set to 4° Advanced Positioning mode.
This mode limits the head down angle to 4°. The
software can be changed to 12° Trendelenburg mode
to enable Trendelenburg functionality.
1. Install Advanced Staff Control Panel as described
previously.
2. Simultaneously, press and hold Trendelenburg
(Button 10, Figure 20, pg 9) and reverse
Trendelenburg (Button 11, Figure 20, pg 9) buttons
for 5 seconds on Advanced Staff Control Panel.
3. Trendelenburg/Reverse Trendelenburg lock icon
will begin flashing indicating that the system is in
programming mode.
4. Press bed up (Button 5, Figure 20, pg 9) button to
select full 12° Trendelenburg mode.
5. Bed Hi-Low lock out icon will flash twice confirming
software is set to 12° Trendelenburg mode.
Note: Be sure correct baseboard bumper is
installed. Failure to install the correct baseboard
bumper can result in damage to the bed or walls.
The 12° bumper is identified by a silver label with
"12°" printed on it.
6. To return bed to 4° Advanced Positioning, repeat
steps 2 and 3 then press bed down (Button 6,
Figure 20, pg 9). Bed Hi-Low lock icon will blink
once confirming software is now in 4° Advanced
Positioning mode. Install correct baseboard
bumper.

Operation

Advanced Pendant Control Operation
1. Your UltraCare XT bed comes standard with an
®
AdvanceCare pendant control (Figure 13). Plug
pendant into port under either side of the seat pan.
2. Unscrew cap (Figure 14) and insert cable
connector, arrow facing up into port (Figure 15).
3. Ensure that the cable connector is fully inserted
into the port (Figure 16, pg 9).
4. Screw on cap from cable to secure cable
(Figure 16, pg 9).
5. The pendant has raised, high-contrast buttons
and graphics.
8
© 2015 Joerns Healthcare • 6110045 RevI • 15-2010
1
2
7

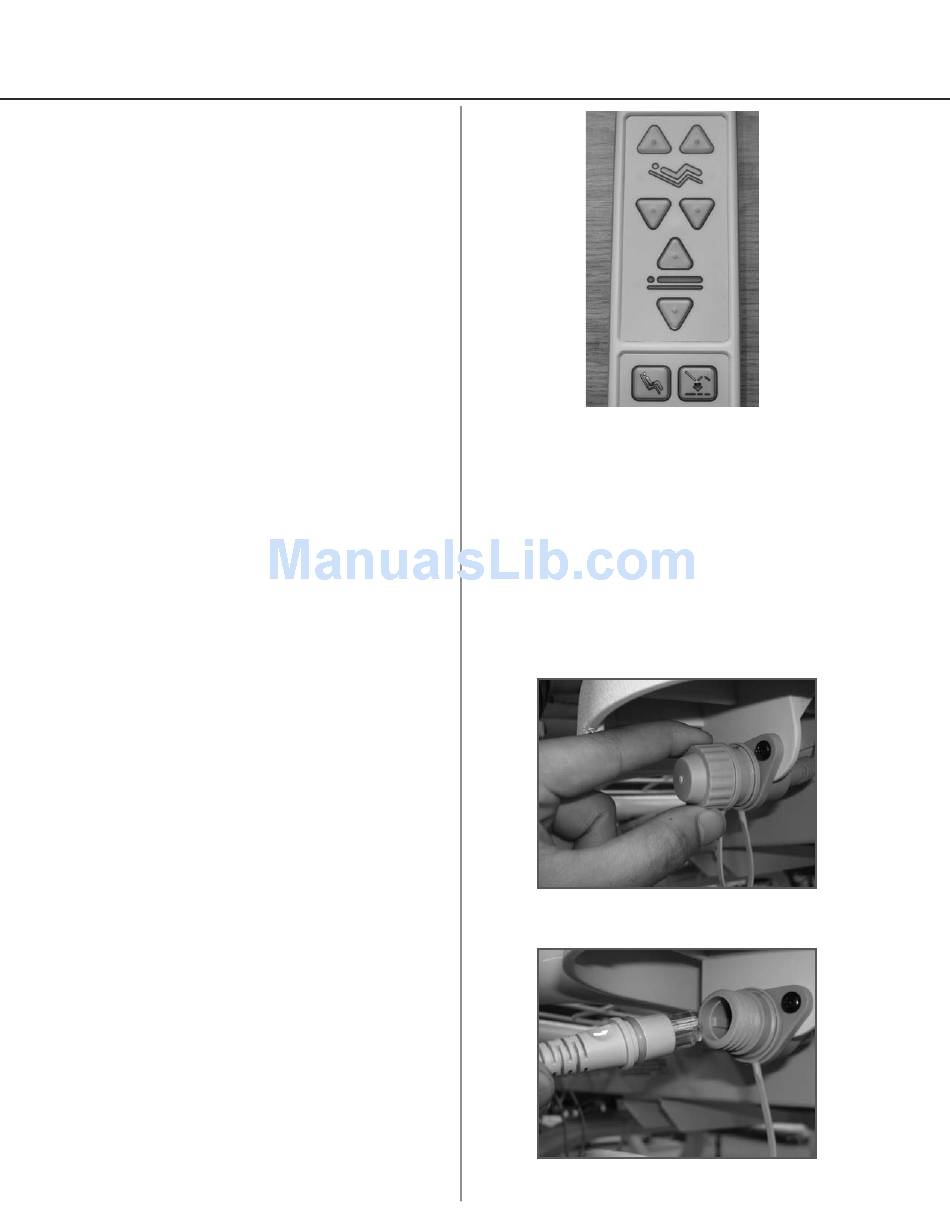

Figure 13
Advanced Pendant Operation
(AdvanceCare) (Figure 13)
1. Push button to raise back
2. Push button to lower back
3. Push button to raise knee
4. Push button to lower knee
5. Push button to raise bed
6. Push button to lower bed
7. Push button for Comfort Chair
8. Push button to lower both head and knee to flat
and place bed at transfer height.
Figure 14
Figure 15
3
4
5
6
8
