Summary of Contents for Joerns Healthcare JOERNS B684DC

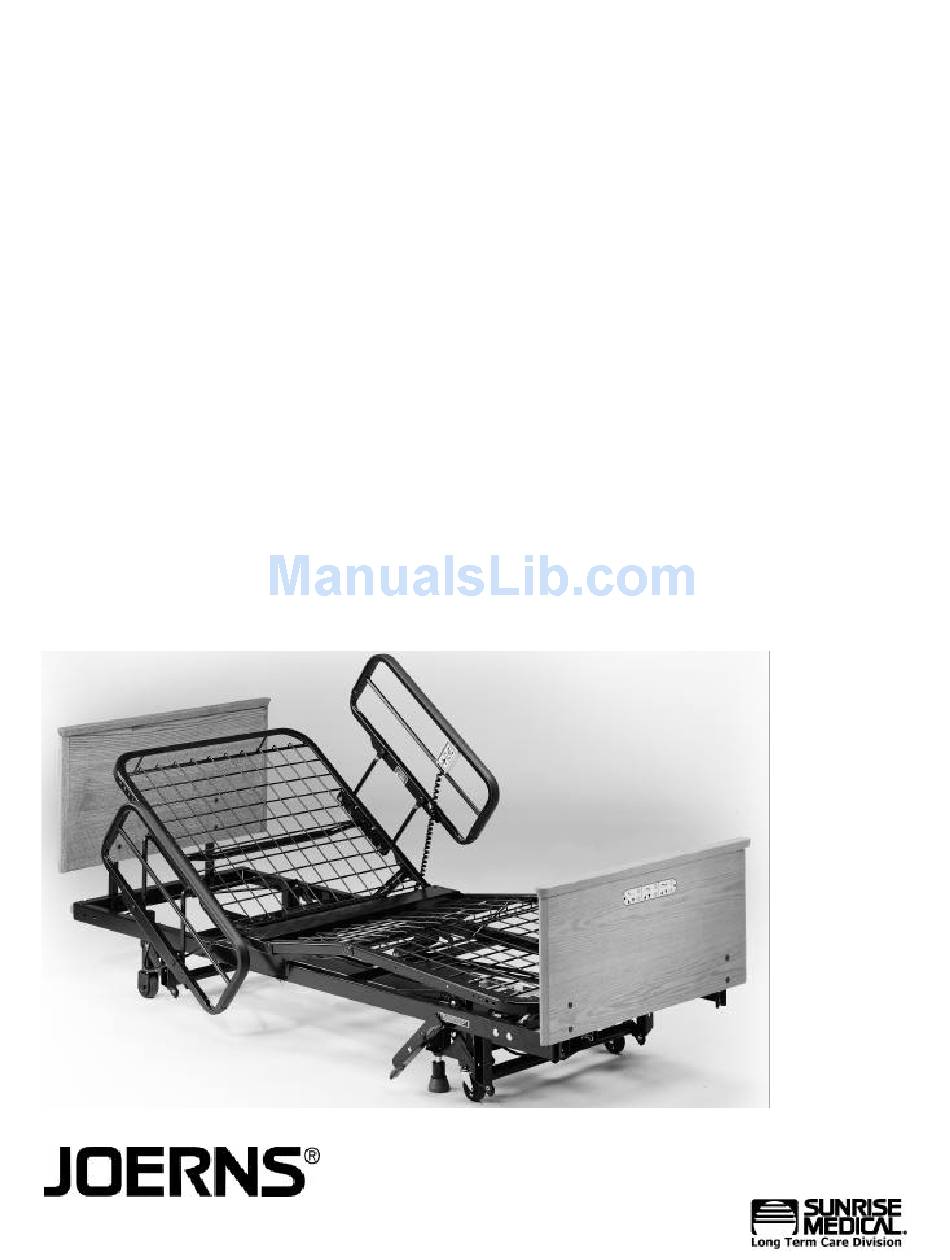

- Page 1 User/Service Manual Joerns ® Easy Care 2003DC ® Model B684DC To avoid injury, read user’s manual before using bed.
-
Page 2: Important Precautions
State and Federal guidelines. Sunrise Medical recommends the use of a mattress with minimum dimensions of 35” in width, 6” in height, and length to match the mattress deck. Failure to do so could result in injury or death. -
Page 3: Table Of Contents
Sunrise Medical on any Joerns bed. WARNING: POSSIBLE INJURY OR DEATH. marketed, or provided by Sunrise Medical for Joerns beds, consult the accessory manufacturer for compatibility and limitations prior to use. This product is only one part of your healthcare bed system. Proper combinations of mattress, head/foot boards and assist devices are needed to minimize the risk of entrapment. -
Page 4: Entrapment Information
Publisher makes no warranties with respect to the accuracy or completeness of the contents of this manual. “Joerns” and “Easy Care” are trademarks of Sunrise Medical, Inc.; other trademarks used in this document are property of their respective trademark holders. -
Page 5: Electrical Specifications
Features and Specifications for Your Joerns Easy Care 2003DC Bed Joerns Easy Care Standard Features 76” or 80” sleep surface Whisper-Quiet DC Motors Grid Sleep Surface Brown or SoftTone Frame Color Mechanical Specifications Dimensions: 76” bed: 81.5”L x 35.0”W x 14.5”H 80”... -
Page 6: Assembly
Assembly of Your Joerns Bed Installation of Head and Foot Panels more information refer to Bed Panel Installation Sheet) Tools required: Phillips head screwdriver Head Panel Installation: • The head panel is the larger of the two panels and has a sticker on the back side. •... -
Page 7: Operation
Operation of Your Joerns Bed Operation of the Electronic Controls Your Joerns Easy Care 2003DC bed comes with the standard snap-in pendant control or the optional staff control and snap-in pendant. The removable snap-in pendant is used as both the standard pendant, and in combination with the staff control option. -
Page 8: Maintenance
If any broken welds or cracks are found, remove the bed from service immediately and replace the affected part(s). Contact Sunrise Medical Technical Service for assistance, if necessary. Any loose hardware should be tightened. -
Page 9: Accessories
Accessories for Your Joerns Bed Sunrise Medical offers a number of accessories for the Easy Care 2003DC bed, including: • Mattress Side Stop • Bed Transport Bar • 4-inch extension Important Warnings All Accessories WARNING: POSSIBLE INJURY OR DEATH. Injury or death may result from improper use of bed accessories (assist devices, trapeze devices, etc.) Consult the accessory manufacturer for compatibility,... -
Page 10: Trapeze Adapter
2. Install the mattress side stop according to the supplied instructions (contact Sunrise Medical to acquire instructions if necessary). 3. Replace the mattress and check that the mattress fills the width between stops. Also, check that the mattress will not compress to less than 2.0"... -
Page 11: Charger
4. Articulate the bed from its highest through its lowest position to assure proper clearance and operation. When the bed is in it’s lowest position, there should be a minimum of one inch clearance from the bottom of the trapeze to the floor. (Due to its low operating height some trapeze systems may not be suitable for use with the B675 bed) 5. -
Page 12: Warranty
Sunrise Medical to be defective. ©2004 SUNRISE MEDICAL, INC. • 10/04 • LITHO U.S.A. Part #: 6110014C DCO#: 04-0460 SUNRISE MEDICAL Warranty replacement parts are...
