Summary of Contents for Joerns Healthcare Bari10A

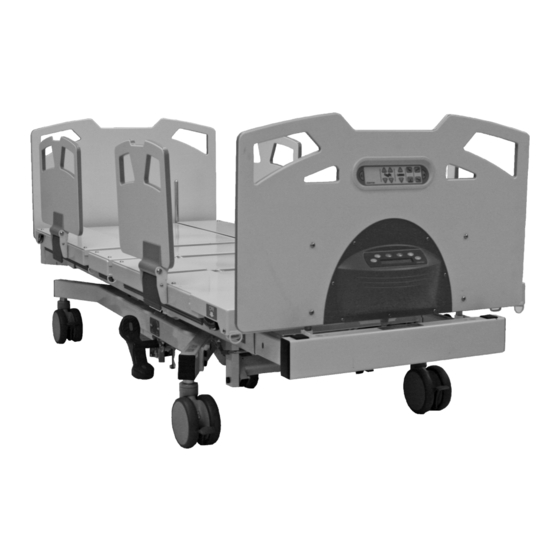

- Page 1 Joerns Healthcare User-Service Manual Joerns Bariatric Bed ® Model Bari10A To avoid injury, read user’s manual before using. leading bed evolution...
-
Page 2: Important Precautions
Warning: Possible Shock Hazard. Unplug replacement parts not manufactured, marketed, or power cord from wall outlet before performing provided by Joerns Healthcare on any Joerns bed. any maintenance, cleaning, or service to the bed. Use of unapproved replacement parts may result in Failure to do so could result in injury or death. - Page 3 The wheel cannot swivel. information found on page 18). Warning: The Bari10A should not be used adjacent Save These Instructions to, or stacked with, other equipment due to the risk Thank you and congratulations for choosing the of electronic interference.
-
Page 4: Table Of Contents
Attention, Consult accompanying documents As the leading manufacturer of long-term care Safe Working Load beds and a frontrunner in addressing this critical issue, Joerns Healthcare can offer you the Type B Applied Parts expertise, assistance and products to bring your Class II Equipment facility into compliance. -
Page 5: Features And Specifications
® Model Bari10A Features and Specifications Classifications UL 60601-1 CAN/CSA C22.2 NO.601.1 Joerns Bari10A Standard Features ® IEC 60601-2-38 CAN/CSA C22.2 NO 601.2.38 • Fully adjustable Mattress Support Platform with independent back and knee movement, Environmental Conditions up/down adjustments, Trendelenburg and... -
Page 6: Assembly
Joerns Bariatric Beds ® Model Bari10A 8. Battery backup is not user-serviceable. If Assembly service is required, contact your distributor (contact information found on page 18) . Installation Of Head And Foot Panels Notice: Make sure the power cord is unplugged... -
Page 7: Bed Operation
® Model Bari10A Bed Operation Pendant Control Operation 1. Your Bari10A bed comes standard with Initial Start Up Pendant Control (Figure 4). Resident/patient 1. After positioning bed, always lock all casters. and staff can use the Pendant to adjust all... - Page 8 Pendant and Staff Control. Side Rails/Assist Devices 1. Bari10A has one Head End Side Rail and 1. To lock out a function, press and hold “Lock” one Foot End Side Rail on both sides of bed graphic on the panel and push the function to (Figure 7).
- Page 9 Joerns Bariatric Beds ® Model Bari10A Warning: To reduce the risk of injury, ensure the Casters Mattress Support Platform is horizontal and in 1. All (4) Casters securely lock bed in place. the lowest position with the siderails fully raised 2.
- Page 10 Joerns Bariatric Beds ® Model Bari10A Warning: Possible Equipment Damage. Prior to Mattress Support Platform use of the MSP Length Extender, the Frame Length Width Extenders 1. The four Mattress Support Platform (MSP) Extender must be fully extended and latched. Failure sections each have a 6"...
-
Page 11: Accessories
Caution: Steer wheel must be disengaged to obtain 䘀 椀 最 甀 爀 攀 㔀 an accurate resident/patient weight. Accessories Mattress 1. Bari10A Bed may be equipped with BariMatt 1000 6.5" foam mattress (Figure 19, p.12). 2. Mattress is designed as separate sections,... - Page 12 Joerns Bariatric Beds ® Model Bari10A Figure 19...
-
Page 13: Scale System
Bariatric Beds ® Model Bari10A Scale System Bari10A bed may be equipped with Scale System, fully integrated within Foot Panel (Figure 20). Scale System Features (Figure 21) 1. Resident/patient’s weight is displayed on a 16-character dot matrix liquid crystal display with LED backlighting. - Page 14 Joerns Bariatric Beds ® Model Bari10A Scale System Functions Weight Mode If display shuts off before you can view weight data, and Weighing Procedures simply press the On button to refresh display and view resident/patient’s weight. Display will indicate Caution: Steer Wheel function must be “WEIGHT = XXX.X LB”(or KG).
- Page 15 Do not tamper with for any reason. 3. Re-calibration is generally not required, but Scale System Care should be verified periodically to ensure and Maintenance accuracy. Joerns Healthcare recommends checking calibration once every 12 months, or as your maintenance policy requires. Cleaning Calibration Procedure 1.
-
Page 16: Cleaning, Inspection And Maintenance
Failure to ensure bed is not charged and are not allowed to fully discharge. powered when disconnecting/connecting the foot 3. Failure to keep Bari10A bed plugged in, will panel cables may result in damage to the bed’s discharge backup batteries and shorten their life. -
Page 17: Lubrication Servicing
Joerns Bariatric Beds ® Model Bari10A Lubrication Servicing Recommended Lubricants 1. Lubricant: Super Lube Multi-Purpose Aerosol. ® 2. Grease: Use Super Lube synthetic grease or ® equivalent. Oiling Points 1. Keep pins and bolts oiled (sample indicated by arrows in Figure 22). - Page 18 Joerns Bariatric Beds ® Model Bari10A Bari10A Bed Troubleshooting Pendant and Staff Control Troubleshooting Problem Solution If movement does not occur when 1. Function may be locked. Check Staff Control Function Lockout. Pendant or Staff button is pushed 2. Adjustment may already be at maximum or minimum level.
-
Page 19: Troubleshooting
Joerns Bariatric Beds ® Model Bari10A Problem Possible Cause What to Do Bed movement with all 1. Braking mechanisms may be worn 1. Remove bed from use and contact casters locked. on one or more casters. Technical Support. Scale System display 1. -
Page 20: Appendix Diagrams
Joerns Bariatric Beds ® Model Bari10A Appendix A - Actuator Wiring Diagram Staff Control 7 out 6 out 5 out 4 out 3 out 2 out 1 out Staff Control Harness 2 in 1 in Pendant Power Cord... - Page 21 Joerns Bariatric Beds ® Model Bari10A Appendix B – Scale System Wiring Diagram ITEM DESCRIPTION Membrane Keypad Scale Display Board Load Cell Assembly Scale Display Assembly Scale Harness Foot End Load Cell Harness Left Side Scale Harness Right Side Scale Harness...
-
Page 22: Warranty
Joerns Healthcare Warranty Program for all Joerns Bari10A Beds ® Joerns Bari10A beds are guaranteed for a period of Joerns Healthcare’s obligation under this warranty is one year from the date of delivery, against defects in limited to supplying replacement parts, servicing or...
