Assembly

Installation Of Head and Foot Panels
(For more information refer to Bed Panel
Installation Sheet)
Tools required: Phillips head screwdriver
Head Panel Installation:
1. Head panel has label on back.
2. Lay panel on soft surface front face down.
3. Head panel brackets are longer of two sizes
(Figure 1).
4. Install head panel brackets with four screws
provided. Bracket offset should face up (Figure 2).
Do not tighten until after fitting mounting brackets
into bed sockets.
5. Go to final assembly below.
Frame-Mounted Foot Panel Installation:
1. Foot panel does not have label on back.
2. Lay panel on soft surface front face down.
3. Foot panel brackets are shorter of two sizes
(Figure 1).
4. Install the foot panel brackets with four screws
provided. Bracket offset should face up (Figure 2).
Do not tighten until after fitting mounting brackets
into bed sockets.
5. Go to final assembly below.
Final Assembly Step for Head Panel and Frame-
Mounted Foot Panel:
1. Insert head and foot panel as shown with
mounting hardware facing head of the bed
(Figure 3).
2. Tighten all screws with panels in place.
3. Panels should slip in and out of their sockets
easily and securely.
Installation Of Baseboard Bumper
(Optional, Advance Care)
Recommended Tool: Rubber mallet
The bed will ship with the standard bumper installed.
If the 12° Trendelenburg Mode is enabled (optional) it
will be necessary to remove the installed bumper and
install the 12° bumper. Note: The 12° bumper can be
identified by a silver label with "12°" printed on it. It is
longer than the standard bumper.
1. Remove the shorter bumper by tapping the tangs
on either side of the leg with a rubber mallet
(Figure 5).
2. Place the 12° baseboard bumper as shown
(Figure 4).
3. Tap into place with a rubber mallet or press firmly
with the sole of your shoe until it locks into place
as shown (Figure 5).
6
© 2015 Joerns Healthcare • 6110045 RevI • 15-2010

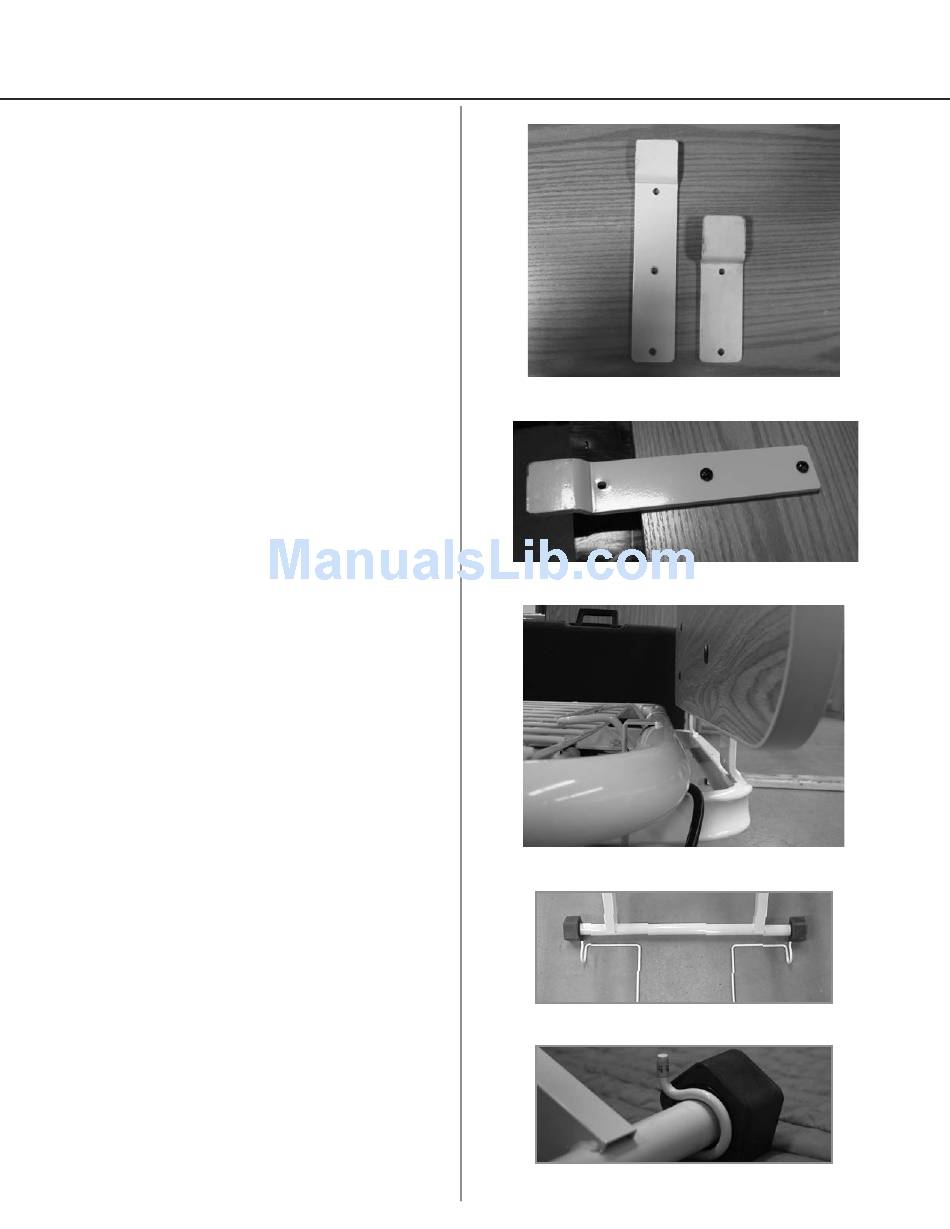

Head Panel
Bracket-10.5"
Figure 1
Bracket offset facing up
Figure 2
Figure 3
Figure 4
Figure 5
Foot Panel
Bracket-6.9"
