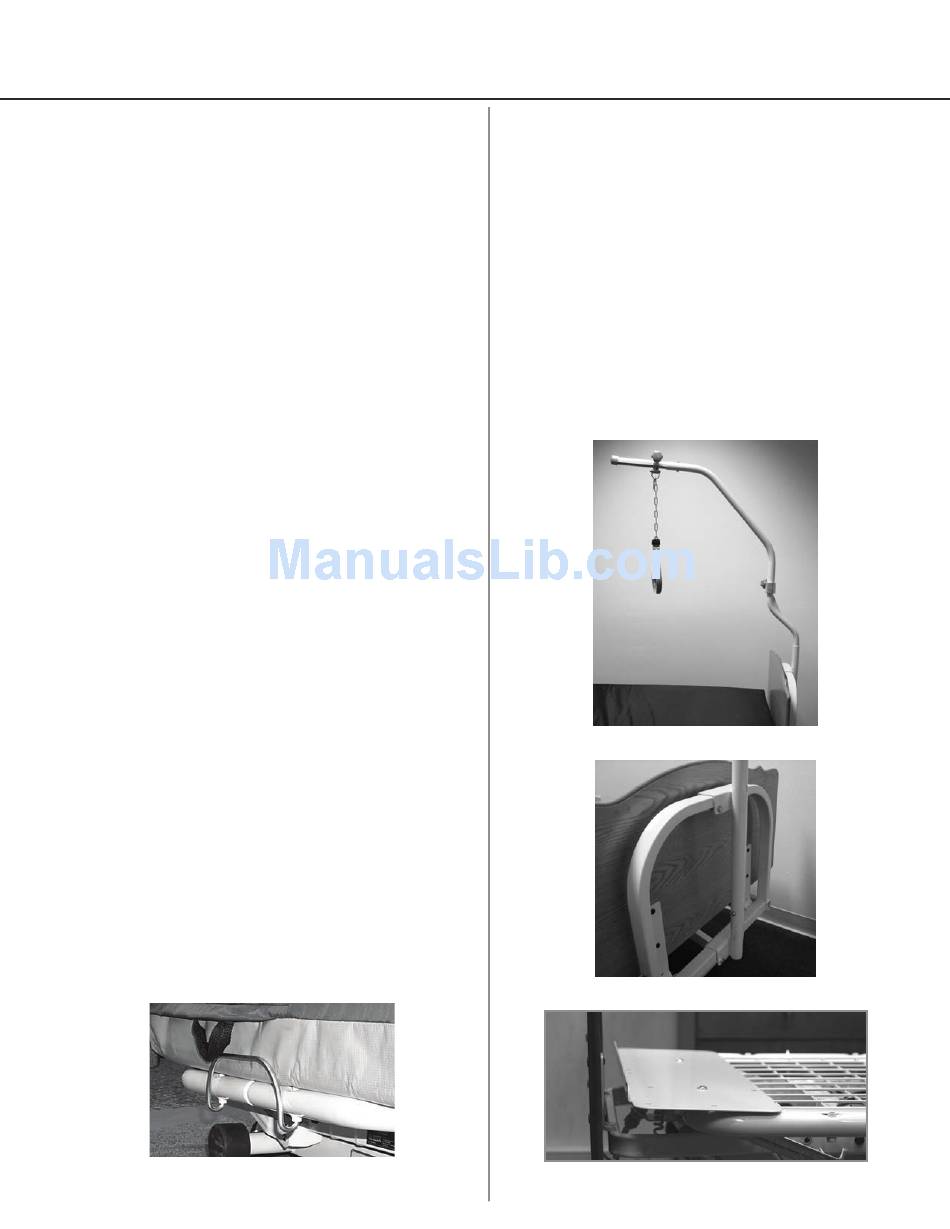

Head End Mattress Side Stop (Figure 31)
1. Mattress Side Stop is designed to help keep
mattress from sliding laterally on the mattress
support platform. Mattress Side Stop can be
installed in combination with assist devices/rails or,
as a stand-alone accessory. Please read important
warnings related to Mattress Side Stops and follow
all instructions below, prior to use.
2. Install Mattress Side Stop according to supplied
instructions.
3. Replace mattress, making sure mattress fills width
between stops. Also, make sure mattress will not
compress to less than 1.5" depth under user's
weight, especially when user is sitting on or sliding
over Mattress Side Stop.
Trapeze Bar (Figure 32)
1. We recommend using Joerns
Joerns Trapeze Adapter.
2. Install Trapeze Bar assembly according to
manufacturer's directions included with kit.
Trapeze Adapter (Figure 33)
1. Trapeze Adapter is designed to allow attachment
of trapeze system to the UltraCare
to use, please read important warnings related to
this option and follow all instructions below.
2. Install Trapeze Adapter according to supplied
instructions.
3. Install Trapeze Bar assembly onto Trapeze
Adapter according to manufacturer's instructions.
4. Adjust bed from its highest through lowest
positions to insure proper clearance and operation.
Some trapeze systems may not be suitable for use
with the UltraCare XT bed, due to its low operating
height.
5. Adjustment and use of a Trapeze Bar should be
in accordance with instructions from a healthcare
professional (doctor or therapist).
6. Do not exceed maximum load condition listed on
installation instructions.
Figure 31
Trapeze Bar with
®
XT bed. Prior
®
Length Extender (Figure 34)
1. Length Extender is designed to extend bed deck
approximately four inches to allow using
84-inch mattress on 80-inch mattress support
platform or 80-inch mattress on 76-inch mattress
support platform. Prior to use, please read
important warnings related to Length Extender and
follow instructions below.
2. Install Length Extender according to supplied
instructions.
3. Make sure increase in overall length does not
produce a safety hazard or impair accessibility in
the room. Place new mattress against Mattress
Stop and be sure mattress covers entire mattress
support platform length.
Figure 32
Figure 33
Figure 34
