- Page 1 64 Max IR Thermometer Instructions PN 4861406 January 2017 © 2017 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
-
Page 2: Safety Information

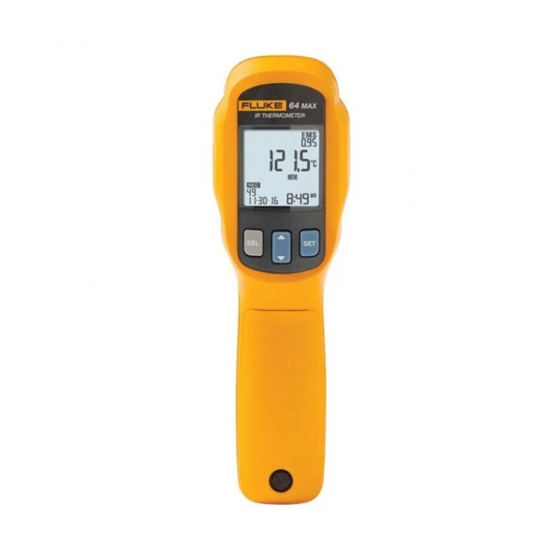

Introduction The Fluke 64 Max IR Thermometer (the Product) can determine the surface temperature by measuring the amount of infrared energy radiated by the target’s surface. Warning Read all safety information before you use the Product. 3-Year Limited Warranty. See the Users Manual for the full warranty. - Page 3 IR Thermometer Safety Information • Before you use the Product, inspect the case. Do not use the Product if it appears damaged. Look for cracks or missing plastic. • See emissivity information for actual temperatures. Reflective objects result in lower than actual temperature measurements. These objects pose a burn hazard.
- Page 4 64 Max Instructions Table 1 lists the symbols used on the Product and in this manual. Table 1. Symbols Symbol Meaning Symbol Meaning WARNING. RISK OF DANGER. Warning. Laser. Conforms to European Union Consult user documentation.
- Page 5 IR Thermometer Safety Information Table 2. Nominal Surface Emissivity Material Value Material Value Default**** 0.95 Glass 0.85 Aluminum* 0.30 Iron* 0.70 Asbestos 0.95 Lead* 0.50 Asphalt 0.95 0.94 Brass* 0.50 Paint 0.93 Ceramic 0.95 Plastic** 0.95 Concrete 0.95 Rubber 0.95 Copper* 0.60 Sand...
-
Page 6: Specifications
64 Max Instructions Specifications -30 °C to +600 °C Temperature Range ≥0 °C: ±1 °C or ±1 % of reading, whichever is Accuracy greater (Calibration geometry with ambient ≥ -10 °C to <0 °C: ±2 °C temperature 23 °C ±2 °C) <... - Page 7 IR Thermometer Specifications Weight 255 g Size 175 x 85 x 75 mm 0 °C to 50 °C Operating Temperature -20 °C to +60 °C, (without battery) Storage Temperature Non Condensing (≤10 °C) ≤90 % RH (at 10 °C to 30 °C) Operating Humidity ≤75 % RH (at 30 °C to 40 °C) ≤45 % RH (at 40 °C to 50 °C)
- Page 8 64 Max Instructions Electromagnetic Compatibility International ... IEC 61326-1: Portable; IEC 61326-2-2; CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
- Page 9 IR Thermometer Overview Overview To turn on the Product, pull the trigger. iba02.eps...
- Page 10 64 Max Instructions iba01.eps...
- Page 11 IR Thermometer Overview iba14.eps...
- Page 12 64 Max Instructions Max/Min/Avg/Diff iba15.eps...
- Page 13 IR Thermometer Overview gtt13.eps...
- Page 14 64 Max Instructions 40 mm @ 87 mm @ 17 mm @ 800 mm 1500 mm 100 mm D:S = 20:1 1.5" @ 2.4" @ 4" @ 12" 24" 36" ° F 1 2 5 iba17.eps...
- Page 15 IR Thermometer Overview iba03.eps...
- Page 16 64 Max Instructions 7 5 ° 2 2 5 ° 7 5 ° gtt04.eps...
